525 EFI - Serial 0M900146 Thru 0M953619 - Fuel Rails And Injectors

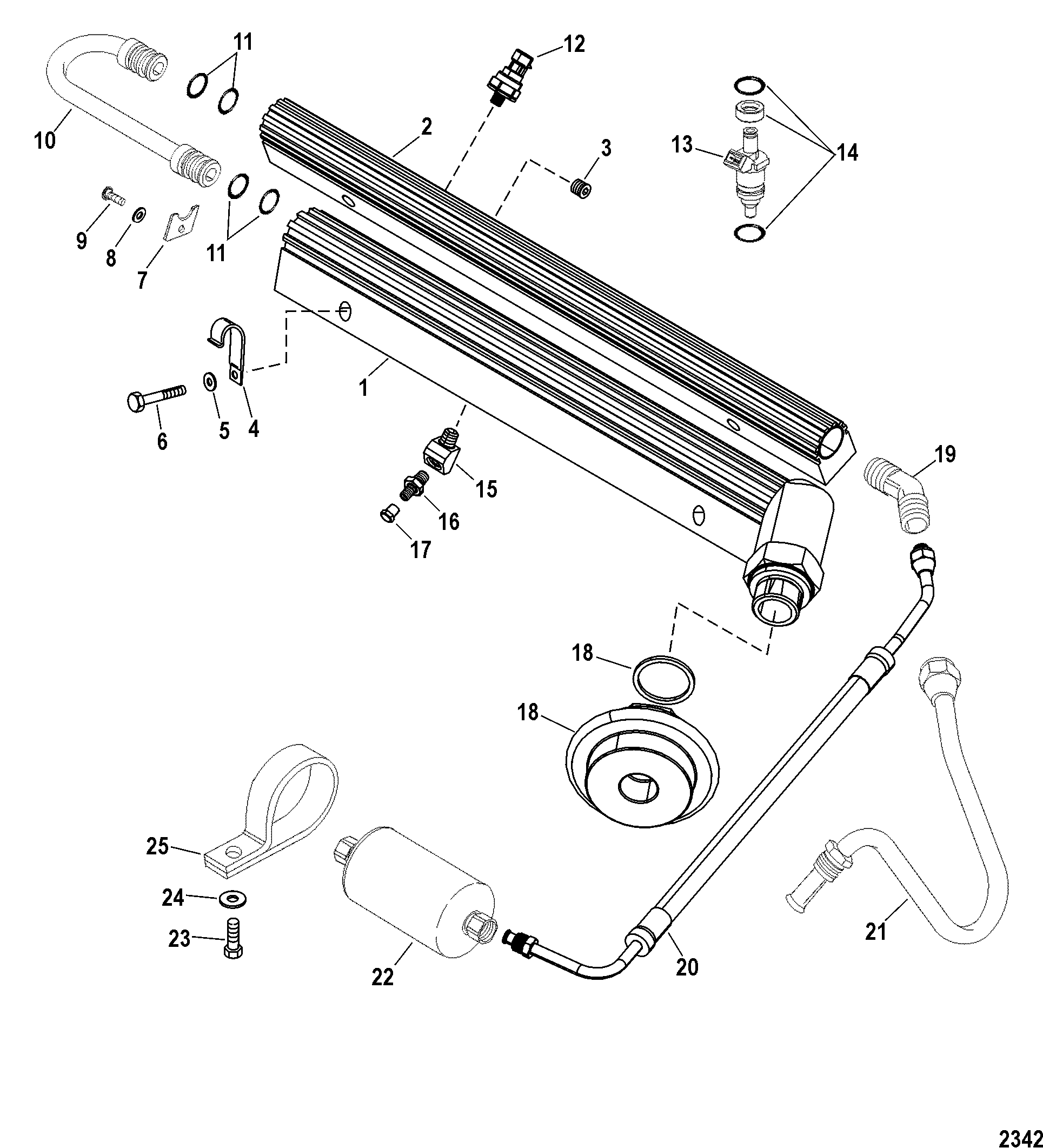

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components (Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator Mount)
- Electrical Components (Starter Assembly)
- Engine Components (Crankshaft - Pistons - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A03)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates - Engine
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components (849906A15)
- Power-Assisted Steering Components (Design I - 849906T9)
- Pump-Motor Assembly (865380A13)
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design II - 14336A25)
- Pump-Motor Assembly (Design III - 14336A31)
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo - Design I)
- Shift Bracket Components (Bravo)
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly (14336 Series)
- Trim Pump Assembly (865380 Series)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 840928T02 | FUEL RAIL ASSEMBLY, Blue, Port | 1 | ||||||
| 2 | 840929T02 | FUEL RAIL ASSEMBLY, Blue, Starboard | 1 | ||||||
| 3 | 22-390721 | PLUG, Pipe (.125-27) Brass | 1 | ||||||
| 4 | 54-858951 | J CLIP | 4 | ||||||
| 5 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 4 | ||||||
| 6 | 10-86885 | SCREW, (.250-20 x 1.500) Stainless Steel | 4 | ||||||
| 7 | 849923 | RETAINER, Fuel Line | 2 | ||||||
| 8 | 12-30164 | WASHER, (.192 x .375 x .0312) Stainless Steel | 2 | ||||||
| 9 | 10-847401 | SCREW, (#10-24 x .380) | 2 | ||||||
| 10 | 32-849971A02 | LINE KIT, Fuel - Blue, Rail To Rail | 1 | ||||||
| 11 | 25-849922 | O-RING, Special | 4 | 2 | |||||
| 12 | 881879T11 | SENSOR, Pressure (0 - 100 PSI), Fuel Pressure | 1 | 881879011 | |||||
| 13 | 805225A1 | 676-9-33100 | INJECTOR ASSEMBLY, Fuel | 8 | |||||
| 14 | 25-805511A1 | SEALING KIT, Fuel Injector | 8 | 2,5 | |||||
| 15 | 22-29085 | FITTING, Elbow (45 Degree) | 1 | ||||||
| 16 | 22-840971A1 | VALVE ASSEMBLY, Shrader | 1 | ||||||
| 17 | 22-805515 | CAP, Shrader Valve - Brass | 1 | ||||||
| 18 | 841062T01 | DAMPER ASSEMBLY, Fuel Pressure - Black | 1 | ||||||
| 19 | 22-843297 | FITTING, (45 Degree) | 1 | ||||||
| 20 | 32-841151T | LINE, Fuel | 1 | Design I - Filter To Rail SN# 0M900146 THRU 0M900741 | |||||
| 21 | 32-849931T | LINE, Fuel | 1 | Design II - Filter To Rail SN# 0M900742 THRU 0M953619 | |||||
| 22 | 35-807174T | FILTER, Fuel | 1 | ||||||
| 23 | 10-817505 | SCREW, (.250-20 x .620) Stainless Steel | 1 | ||||||
| 24 | 12-35280 | WASHER, (.255 x .620 x .030) Stainless Steel | 1 | SN# 0M900742 THRU 0M953619 | |||||
| 25 | 54-18904 | CLIP, Fuel Filter Support | 1 | ||||||
| - | 27-843073A06 | GASKET/SEAL SET, Engine Overhaul | 1 | 27-843073A03 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing | ||||
