525 EFI - Serial 0M953620 Thru 0M956326 - Closed Cooling System Components

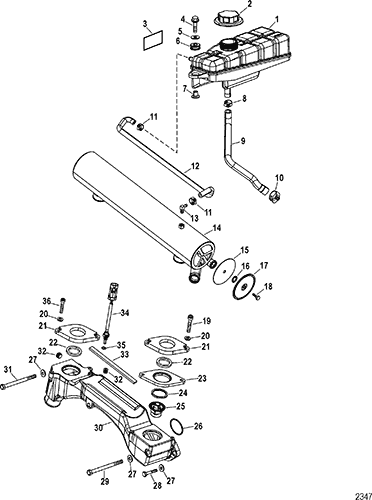

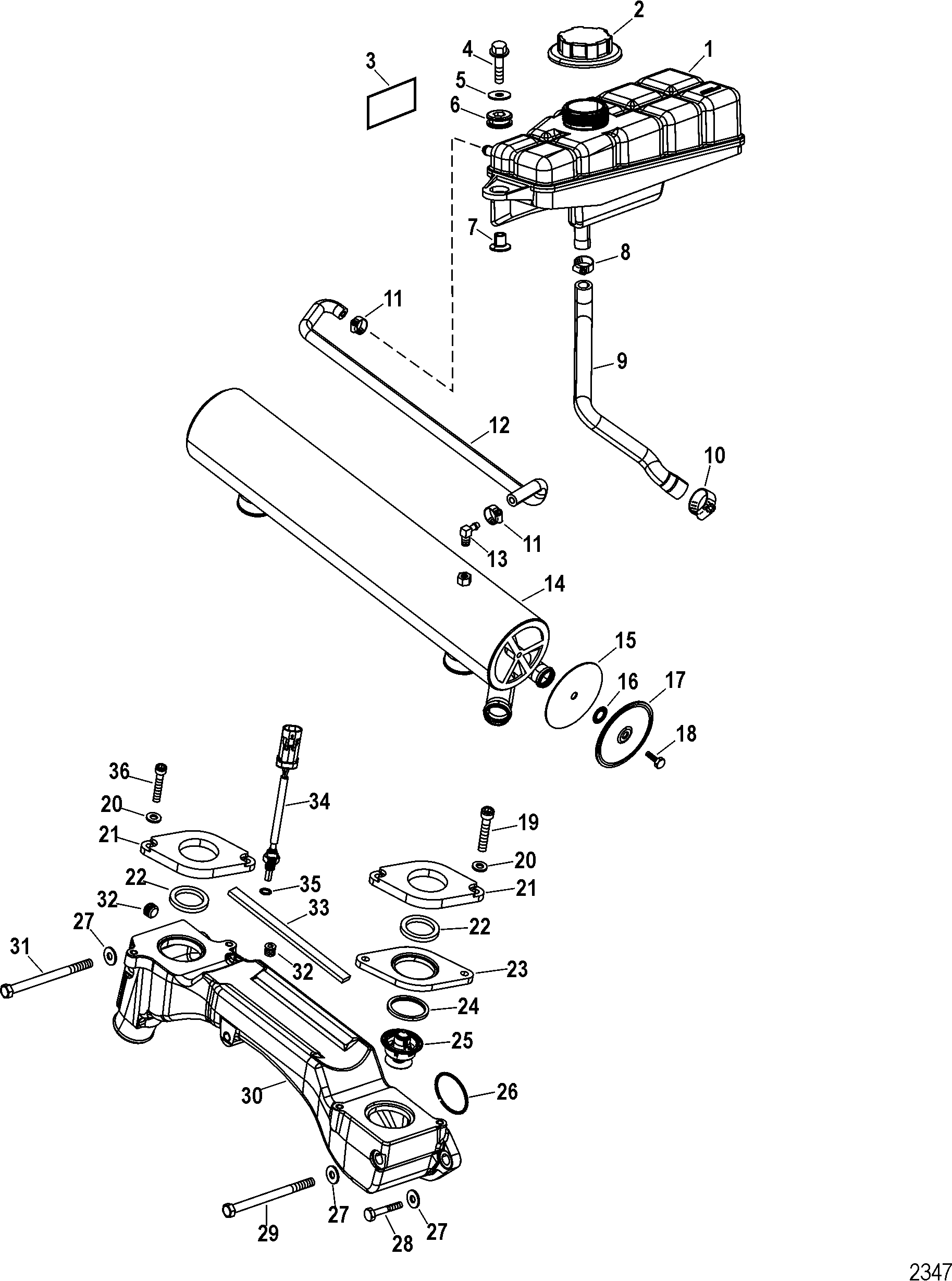

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components(Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A06)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates (Engine)
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo)
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly
- Trim Pump-Motor Assembly (865380A13)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 841065T01 | RESERVOIR ASSEMBLY, Coolant | 1 | ||||||
| 2 | 862863 | CAP, Coolant Reservoir | 1 | ||||||
| 3 | 37-843133 | DECAL, Coolant Level | 1 | ||||||
| 4 | 10-F430732 | SCREW, (.312-18 x 1.250) Stainless Steel | 3 | ||||||
| 5 | 12-817274 | WASHER, (.344 x 1.00 x .063) Stainless Steel | 3 | ||||||
| 6 | 25-855362001 | GROMMET | 3 | 25-855362 | 2 | ||||
| 7 | 23-855364 | BUSHING | 3 | ||||||
| 8 | 54-815504210 | CLAMP, Worm Gear | 1 | ||||||
| 9 | 32-841207 | HOSE, Molded, Reservoir To Circular Pump | 1 | ||||||
| 10 | 54-180763 | CLAMP, Worm Gear | 1 | ||||||
| 11 | 54-815504406 | CLAMP, Worm Gear | 2 | ||||||
| 12 | 32-842455 | HOSE, Molded, Heat Exchanger To Reservoir | 1 | ||||||
| 13 | 22-629101 | FITTING, Elbow - 90 Degree (.125-27) | 1 | ||||||
| 14 | 841059T03 | EXCHANGER ASSEMBLY, Heat | 1 | 841059T02 | |||||
| 15 | 8M0036987 | GASKET, Heat Exchanger End | 2 | 27-803644 | 2 | ||||
| 16 | 8M0039163 | O-RING, Special | 2 | 25-814878 | 2 | ||||
| 17 | 8M0036623 | COVER, Heat Exchanger End | 2 | 814875 | |||||
| 18 | 10-814877 | BOLT | 2 | ||||||
| 19 | 10-841222 | SCREW, (.312-18 x 1.250) | 2 | ||||||
| 20 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 4 | ||||||
| 21 | 842450 | PLATE | 2 | ||||||
| 22 | 25-20295 | QUAD RING (1.725 x .210) | 2 | 2 | |||||
| 23 | 842448 | PLATE | 1 | ||||||
| 24 | 25-8071341 | SEAL, Thermostat | 1 | 2 | |||||
| 25 | 8M0076464 | THERMOSTAT, 71°C (160°F) | 1 | 863358T | |||||
| 26 | 25-30529 | 700-81360 | O-RING, (1.925 x .103) | 2 | 2 | ||||
| 27 | 12-45176 | 700-28420 | WASHER, (.453 x .812 x .105) Stainless Steel | 6 | |||||
| 28 | 10-825427 | SCREW, (.437-14 x 1.250) Stainless Steel | 4 | ||||||
| 29 | 10-841118 | SCREW, (.437-14 x 5.50) Stainless Steel | 1 | ||||||
| 30 | 841058T01 | CROSSOVER, Black | 1 | ||||||
| 31 | 10-841114 | SCREW, (.437-14 x 4.500) Stainless Steel | 1 | ||||||
| 32 | 22-36373 | PLUG, (.375-18) Hex - Steel | 2 | ||||||
| 33 | 843155001 | FOAM STRIP (6.500 Inches) | 2 | ||||||
| 34 | 885342002 | SENSOR ASSEMBLY, Water Temperature | 1 | 885342001 | |||||
| 35 | 25-896699 | O-RING, (.351 x .072) | 1 | 25-888814 | |||||
| 36 | 10-841221 | SCREW, (.312-18 x 1.00) Stainless Steel | 2 | ||||||
| - | 27-843073A06 | GASKET/SEAL SET, Engine Overhaul | 1 | 27-843073A03 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
