525 EFI - Serial 0M953620 Thru 0M956326 - Fuel Pump And Fuel Cooler

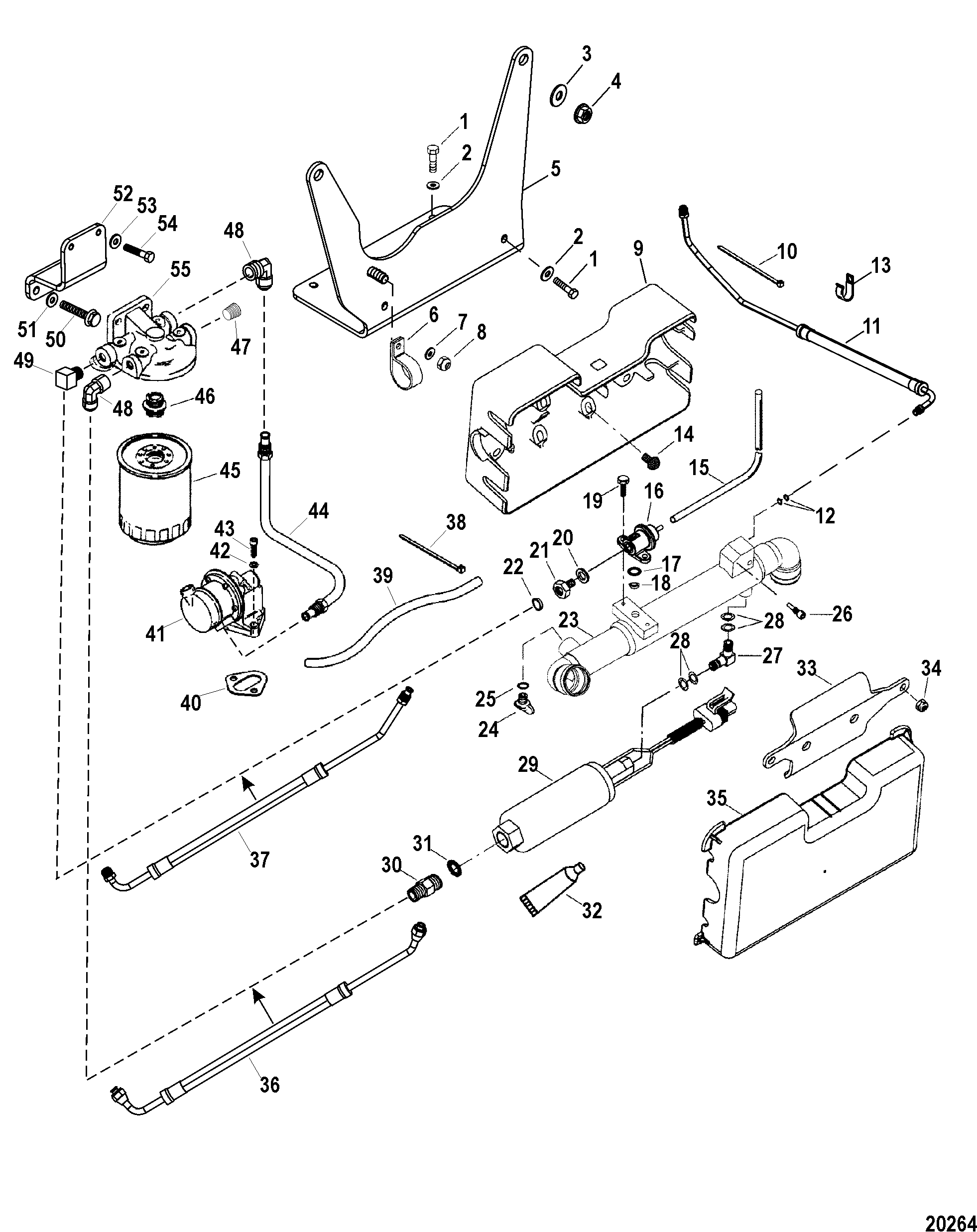

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components(Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A06)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates (Engine)
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo)
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly
- Trim Pump-Motor Assembly (865380A13)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 10-64014 | SCREW, (.250-28 x .500) | 4 | ||||||
| 2 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 4 | ||||||
| 3 | 12-45176 | WASHER, (.453 x .812 x .105) Stainless Steel | 2 | ||||||
| 4 | 11-859135 | 676-9-78116 | NUT, (.437-20) Brass/Nickel Plated | 2 | |||||
| 5 | 841981T | BRACKET, Fuel Cooler Support | 1 | ||||||
| 6 | 54-62494 | CLIP, Hose Support | 1 | ||||||
| 7 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 1 | ||||||
| 8 | 11-82670912 | NUT, (.375-16) Stainless Steel | 1 | ||||||
| 9 | 807685T3 | INSULATOR, Base | 1 | ||||||
| 10 | 54-816311T | 700-21465 | TIE STRAP, (8.00 Inches) | AR | |||||
| 11 | 32-897345T59 | LINE ASSEMBLY, Fuel, Cooler To Filter | 1 | 32-842068 | |||||
| 12 | 25-805063 | O-RING, (.301 x .070) | 2 | 2 | |||||
| 13 | 54-848183 | J CLIP, Fuel Line To Port Mount | 2 | ||||||
| 14 | 269011 | BUMPER, Rubber | 8 | ||||||
| 15 | 32-8M0063567 | HOSE, (58.00 Inches Bulk), Cut 52.00 Inches - To Rear TBI | 1 | 32-80617382 | |||||
| 16 | 861126A1 | REGULATOR KIT, (43 PSI), Fuel Pressure | 1 | ||||||
| 17 | 25-805531 | O-RING, (.476 x .075) | 1 | 2 | |||||
| 18 | 35-805406 | FILTER, Fuel Pressure Regulator | 1 | ||||||
| 19 | 10-852368 | SCREW, (#10-24 x .750) | 2 | ||||||
| 20 | 12-36533 | WASHER, (.328 x .562 x .0312) Copper | 1 | 2 | |||||
| 21 | 22-8080021 | FITTING, Stainless Steel | 1 | ||||||
| 22 | 27-848438 | GASKET, Flare | 1 | 2 | |||||
| 23 | 849929A02 | COOLER KIT, Fuel | 1 | 849929A1 | |||||
| 24 | 22-806608A02 | PLUG KIT, (.500-13) Royal Blue | 1 | 22-806608A1 | |||||
| 25 | 25-831985 | O-RING, (.468 x .078) | 1 | 2 | |||||
| 26 | 10-866114 | SCREW, (.250-28) Special | 1 | ||||||
| 27 | 22-807783A1 | FITTING ASSEMBLY, 90 Degree | 1 | ||||||
| 28 | 25-805063 | O-RING, (.301 x .070) | 4 | 2 | |||||
| 29 | 841080T01 | PUMP ASSEMBLY, Fuel, With Ref Numbers 28 And 31 | 1 | ||||||
| 30 | 22-808001A1 | FITTING ASSEMBLY | 1 | ||||||
| 31 | 25-805062 | O-RING, (.530 x .082) | 1 | 2 | |||||
| 32 | 92-805701 | COMPOUND, Heat Transfer (6 Grams) | AR | ||||||
| 33 | 807979T | BRACKET | 1 | ||||||
| 34 | 11-29598 | NUT, (.250-28) Stainless Steel | 2 | ||||||
| 35 | 807930T01 | INSULATOR, Fuel Cooler Cover | 1 | 807930 | |||||
| 36 | 32-897345T60 | LINE ASSEMBLY, Fuel, Seperator To Pump | 1 | 32-841146T | |||||
| 37 | 32-897345T61 | LINE ASSEMBLY, Fuel, Regulator To Seperator | 1 | 32-841148T | |||||
| 38 | 56762 | TIE STRAP, (4.00 Inches) | 2 | ||||||
| 39 | 32-8M8023638 | TUBING, (54.00 Inches Bulk), Cut 48.00 Inches | 1 | 32-84862872 | |||||
| 40 | 27-34213 | 676-9-61041 | 700-31360 | GASKET, Fuel Pump | 1 | 2 | |||
| 41 | 889275T | PUMP ASSEMBLY, Fuel | 1 | 842429A01 | |||||
| 42 | 12-34931 | WASHER, (.406 x .734 x .063) Stainless Steel | 2 | ||||||
| 43 | 10-34354 | SCREW, (.375-16 x 1.50) | 2 | ||||||
| 44 | 32-841153T | LINE ASSEMBLY, Fuel, Pump To Seperator | 1 | ||||||
| 45 | 35-802893TT | FILTER, Fuel/Water Separating - Mercury Brand | 1 | ||||||
| 46 | 22-816133 | FITTING | 1 | ||||||
| 47 | 22-36373 | PLUG, (.375-18) Hex - Steel | 1 | ||||||
| 48 | 22-841079 | CONNECTOR | 2 | ||||||
| 49 | 22-19697 | ELBOW | 1 | ||||||
| 50 | 10-805559 | SCREW, (.375-16 x .875) Stainless Steel | 2 | ||||||
| 51 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 2 | ||||||
| 52 | 841050 | BRACKET, Fuel Seperator Mount | 1 | ||||||
| 53 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 2 | ||||||
| 54 | 10-849377 | SCREW, (.312-24 x .750) Stainless Steel | 1 | ||||||
| 54 | 10-843144 | SCREW, (.312-24 x .880) Stainless Steel | 1 | ||||||
| 55 | 805373005 | BASE, Seperator/Filter | 1 | ||||||
| - | 27-843073A06 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
