525 EFI - Serial 0M953620 Thru 0M956326 - Water Hoses (Sea Water)

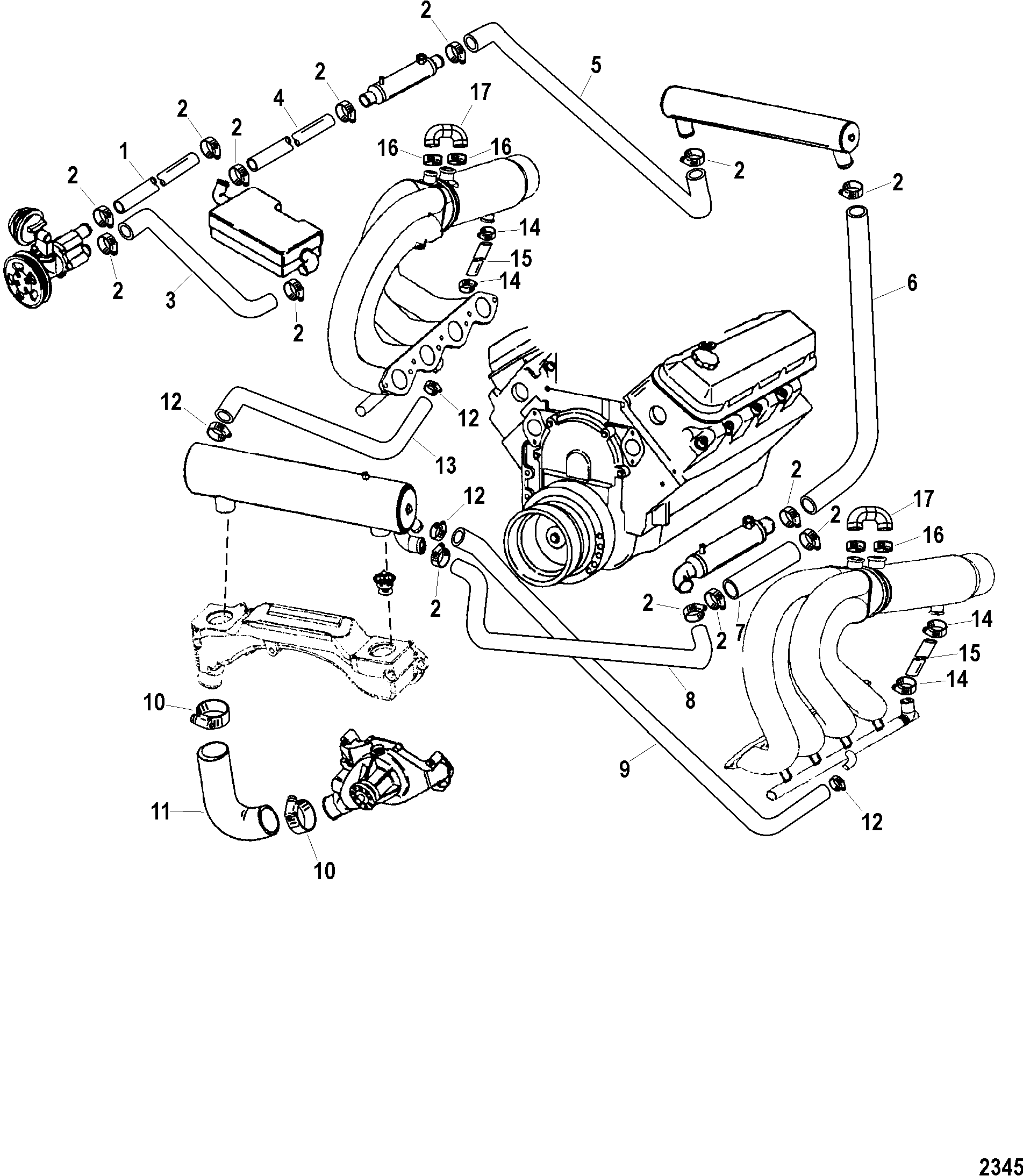

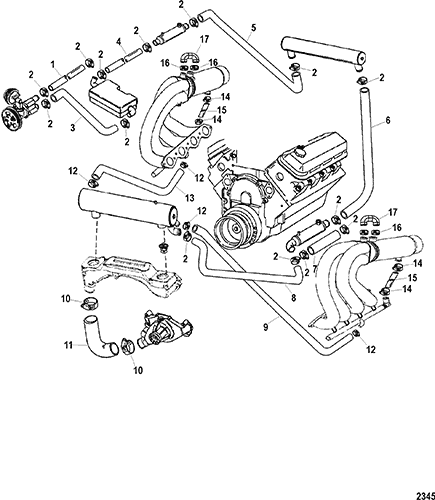

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components(Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A06)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates (Engine)
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo)
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly
- Trim Pump-Motor Assembly (865380A13)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| 1 | 32-1743565 | HOSE, (38.00 Inches Bulk), Cut As Required - Drive To Sea Water Pump | 1 | Bravo Models | ||||||
| 1 | 32-865672079 | HOSE, (96.00 Inches Bulk), Cut 48.00 Inches - Drive To Sea Water Pump | 1 | 32-1743579 | Six Drive Models | |||||
| 1 | 32-13556A1 | HOSE KIT, (10.00 Feet), Cut As Required - Drive To Sea Water Pump | 1 | Driveline Models | ||||||
| 2 | 54-180766 | CLAMP, Worm Gear | 2 | Driveline Models | ||||||
| 2 | 54-180766 | CLAMP, Worm Gear | 14 | Bravo Models | ||||||
| 3 | 32-849935 | HOSE, Molded, Circulating Pump To Fuel Cooler | 1 | |||||||
| 4 | 32-8M0062665 | HOSE, (48.00 Inches Bulk), Cut As Required | 1 | 32-5346170 | ||||||
| 5 | 32-844881 | HOSE, Molded, Cooler To Cooler | 1 | NOTE: This Hose Is Cut To Fit For Engines With Transmission Cooler | ||||||
| 6 | 32-848956 | HOSE, Molded, Cooler To Tube | 1 | |||||||
| 7 | 22-13177 | TUBE, Hose Attachment | 1 | Non Power Steering Models | ||||||
| 8 | 32-840926 | HOSE, Molded, Heat Exchanger To Cooler/Tube | 1 | |||||||
| 9 | 32-840924 | HOSE, Molded, Heat Exchanger To Port Exhaust Header | 1 | |||||||
| 10 | 54-180768 | CLAMP, Worm Gear | 2 | |||||||
| 11 | 32-840927 | HOSE, Molded, Crossover To Circulating Pump | 1 | |||||||
| 12 | 54-180765 | CLAMP, Worm Gear | 4 | |||||||
| 13 | 32-840925 | HOSE, Molded, Heat Exchanger To Starboard Exhaust Header | 1 | |||||||
| 14 | 54-180764 | CLAMP, Worm Gear | 4 | |||||||
| 15 | 32-842754 | HOSE, Molded, Exhaust Header To Pipe | 2 | 32-849939001 | ||||||
| 16 | 54-180763 | CLAMP, Worm Gear | 4 | |||||||
| 17 | 32-8424181 | HOSE, Molded, Exhaust Header To Pipe | 2 |
