525 EFI - Serial 0M953620 Thru 0M956326 - Intake Manifold And Components

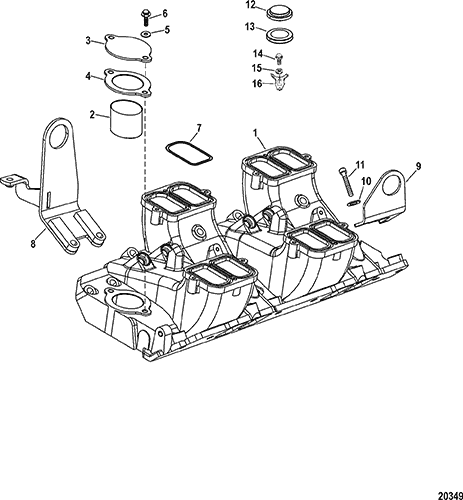

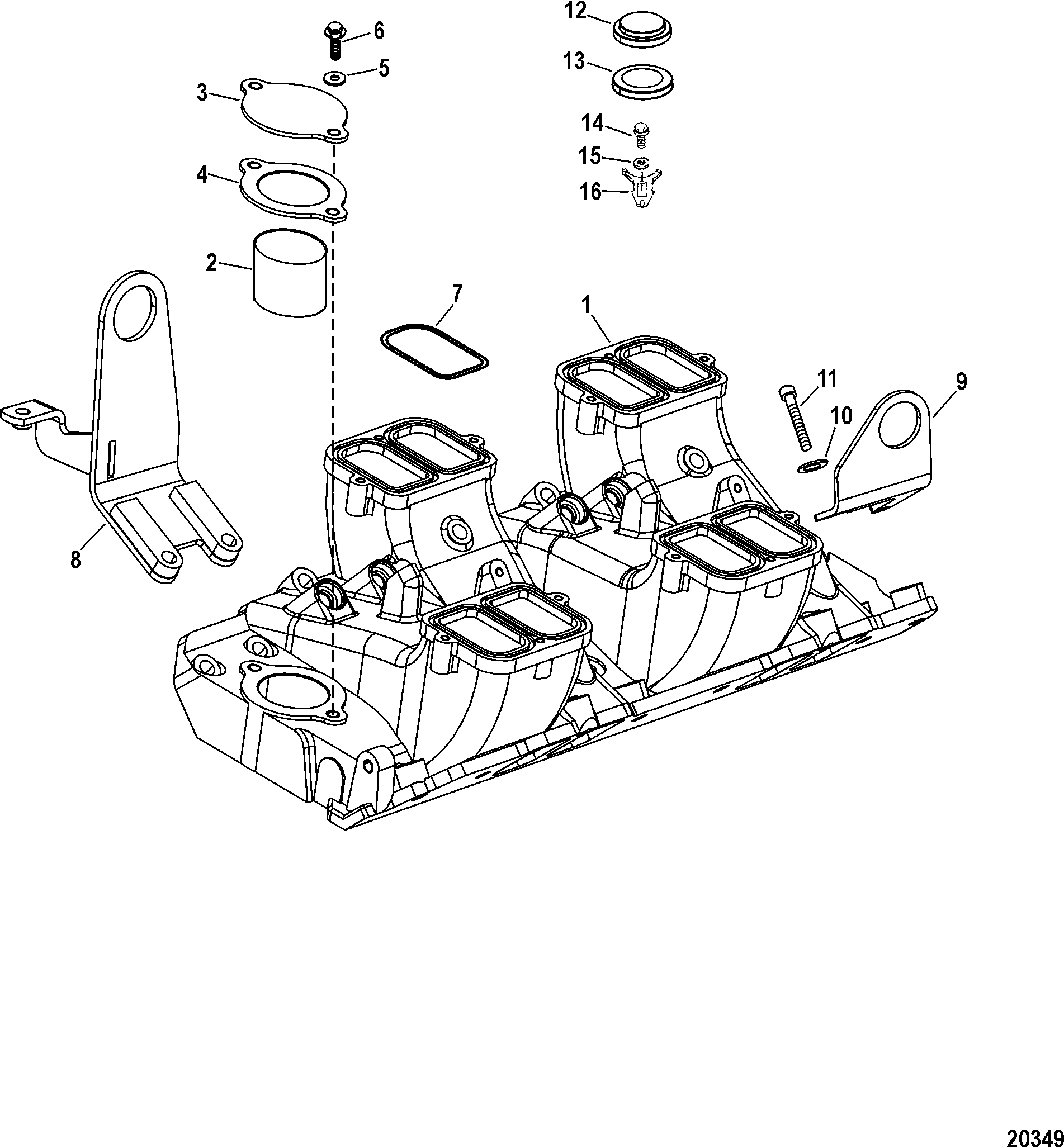

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components(Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A06)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates (Engine)
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo)
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly
- Trim Pump-Motor Assembly (865380A13)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 840930A08 | MANIFOLD ASSEMBLY, Intake - Black | 1 | 5 | |||||
| 2 | 841119 | TUBE, Coolant Restrictor | 1 | 5 | |||||
| 3 | 17494A1 | COVER KIT, Coolant Tube - Black | 1 | 5 | |||||
| 4 | 27-331792 | GASKET | 1 | 2,5 | |||||
| 5 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 2 | 5 | |||||
| 6 | 10-805559 | SCREW, (.375-16 x .875) Stainless Steel | 2 | 5 | |||||
| 7 | 25-805732 | O-RING, (2.612 x .103) | 8 | 2,5 | |||||
| 8 | 842028T03 | BRACKET, Lift - Black - Starboard | 1 | 5 | |||||
| 9 | 54-8499981 | LIFTING EYE, Black, Port | 1 | 5 | |||||
| 10 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 16 | 5 | |||||
| 11 | 10-822168 | SCREW, (.375-16 x 1.750) Stainless Steel, Without Hole | 7 | 5 | |||||
| 11 | 10-8431471 | SCREW, (.375-16 x 1.750), With Hole | 1 | 5 | |||||
| 11 | 10-842787 | SCREW, (.375-16 x 2.00) Stainless Steel | 2 | 5 | |||||
| 11 | 10-847919 | SCREW, (.375-16 x 2.250) | 2 | 5 | |||||
| 11 | 10-849994 | SCREW, (.375-16 x 5.250) | 4 | 5 | |||||
| 12 | 842008 | COVER, Black | 1 | 8M8000075 | 5 | ||||
| 13 | 27-344863 | GASKET | 1 | 2,5 | |||||
| 14 | 10-805559 | SCREW, (.375-16 x .875) Stainless Steel | 1 | 5 | |||||
| 15 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 1 | 5 | |||||
| 16 | 54-88731 | CLAMP | 1 | 5 | |||||
| - | 27-843073A06 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing | |||||
| - | 841178A05 | PARTIAL ENGINE ASSEMBLY | 1 |
