525 EFI - Serial 0M953620 Thru 0M956326 - Transmission And Components (Six Drive - Bravo)

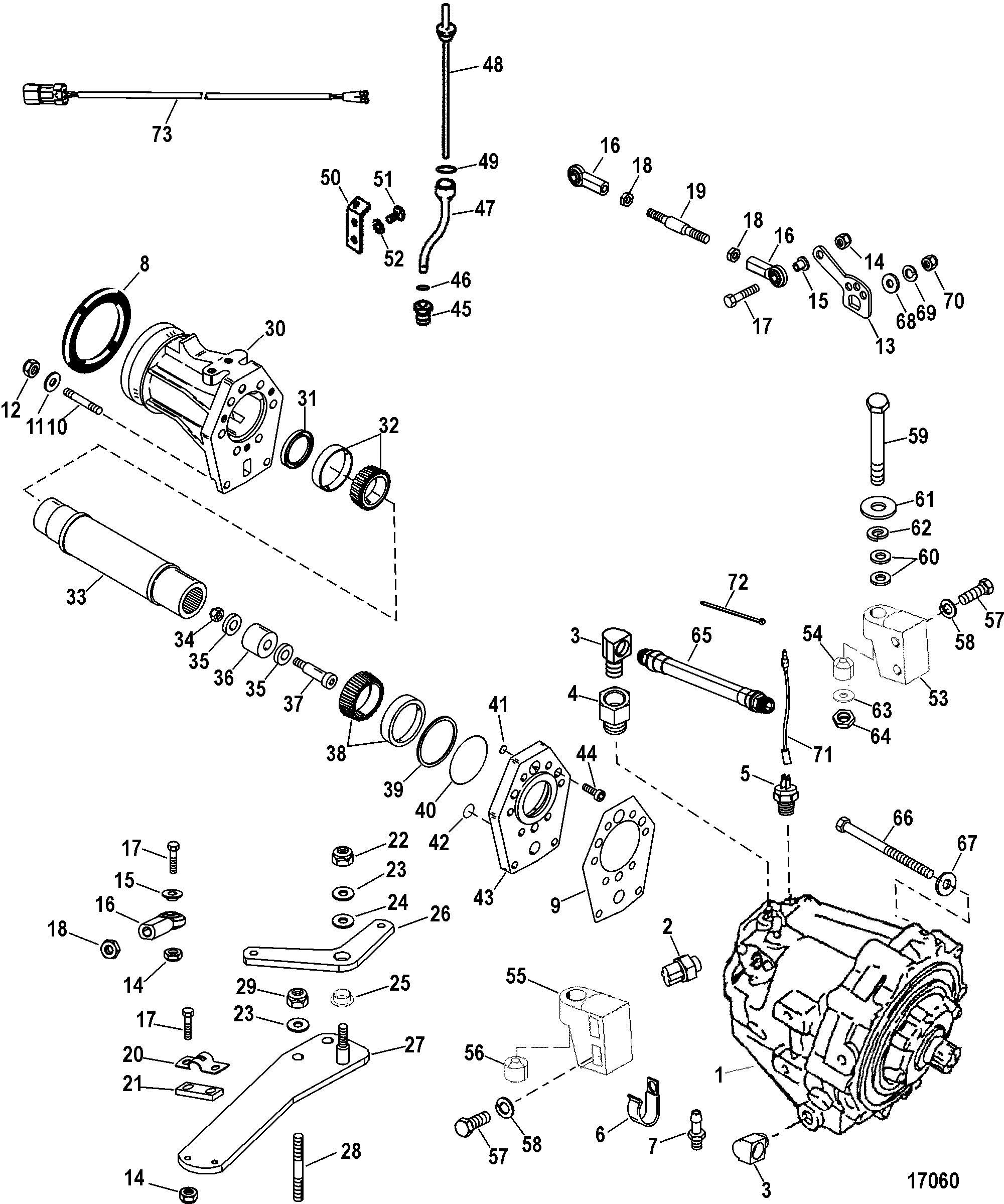

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components(Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A06)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates (Engine)
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo)
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly
- Trim Pump-Motor Assembly (865380A13)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 841919A06 | TRANSMISSION ASSEMBLY, Complete | 1 | 14746A5 | |||||
| 1 | 841919A07 | TRANSMISSION ASSEMBLY | 1 | 14746A4 | |||||
| 2 | 47613 | SWITCH, Neutral Safety | 1 | ||||||
| 3 | 22-47629 | ELBOW, 90 Degree, Transmission To Oil Hose | 2 | ||||||
| 4 | 22-88517 | FITTING, Reducing, Transmission Elbow | 1 | ||||||
| 5 | 87-88031 | SWITCH ASSEMBLY, Oil Temperature | 1 | ||||||
| 6 | 54-47483 | J CLIP | 1 | ||||||
| 7 | 22-63186 | FITTING, (.125-27), To Hose On Bottle | 1 | ||||||
| - | 847145T1 | SUPPORT AND LEVER KIT, Universal Joint | 1 | ||||||
| 8 | 846693 | SEAL, Housing | 1 | ||||||
| 9 | 27-47903 | GASKET, Transmission To Support Housing | 1 | ||||||
| 10 | 16-847031 | STUD, (.437-14/.437-20 x 2.750) | 2 | ||||||
| 10 | 16-847030 | STUD, (.437-14/.437-20 x 3.00) | 6 | ||||||
| 11 | 12-842922 | WASHER, (.450 x .750 x .060) Stainless Steel | 8 | ||||||
| 12 | 11-34933 | 676-9-72004 | NUT, (.437-20) Stainless Steel | 8 | |||||
| 13 | 847052 | LEVER, Shift | 1 | ||||||
| 14 | 11-8267096 | NUT, (#10-32) Stainless Steel | 5 | ||||||
| 15 | 23-846787 | SPACER, Rod End | 3 | ||||||
| 16 | 846786 | ROD END | 3 | ||||||
| 17 | 10-34994 | SCREW, (#10-32 x 1.00) Stainless Steel | 5 | ||||||
| 18 | 11-68219 | NUT, (#10-32) Stainless Steel | 3 | ||||||
| 19 | 16-846964 | STUD, (#10-32 x 2.09), Shift Rod | 1 | ||||||
| 20 | 54-846341 | BRACKET, Shift Cable | 1 | ||||||
| 21 | 846344 | SPACER, Cable Bracket | 1 | ||||||
| 22 | 11-826709113 | NUT, (.375-24) Stainless Steel | 1 | ||||||
| 23 | 12-841388 | WASHER, (.410 x .810 x .050) Stainless Steel | 3 | ||||||
| 24 | 12-846783 | WASHER, (.562 x 1.250 x .062) Nylon | 1 | ||||||
| 25 | 23-812707 | BUSHING | 1 | ||||||
| 26 | 847025 | ARM, Shift Cable | 1 | ||||||
| 27 | 8M0053746 | PLATE ASSEMBLY, Shift Linkage Mount | 1 | 847175 | |||||
| 28 | 16-846453 | STUD, (.375-16 x 1.250), Mounting Plate | 2 | ||||||
| 29 | 11-826709112 | NUT, (.375-16) | 2 | 11-846869 | |||||
| - | 8M0050742 | SUPPORT ASSEMBLY, Universal Joint | 1 | 847123A1 | |||||
| 30 | 8M0054154 | HOUSING, Universal Joint Support | 1 | 8469611 | |||||
| 31 | 26-846497 | SEAL, Inner Coupler | 1 | ||||||
| 32 | 31-846477A1 | BEARING SET, Cup And Cone, Rear Coupler | 1 | ||||||
| 33 | 8M0050930 | SHAFT, Coupling | 1 | 846960 | |||||
| 34 | 11-82670910 | NUT, (.312-18) Stainless Steel | 1 | ||||||
| 35 | 12-846967 | WASHER, (.376 x 1.430 x .250) | 2 | ||||||
| 36 | 23-847027 | SEAL, Coupler | 1 | ||||||
| 37 | 10-847209 | SHOULDER SCREW, (.375-16) | 1 | ||||||
| 38 | 31-846695A1 | BEARING SET, Cup And Cone, Front Coupler | 1 | ||||||
| 39 | 15-847029A1 | SHIM SET, Bearing | 2 | ||||||
| 40 | 25-841807 | O-RING, (3.500 x .103) | 1 | ||||||
| 41 | 25-847033 | O-RING, (.620 x .09) | 1 | ||||||
| 42 | 25-847034 | O-RING, (1.310 x .09) | 1 | ||||||
| 43 | 8470121 | SPACER, Universal Joint | 1 | ||||||
| 44 | 10-76769 | SCREW, (.375-16 x .880) | 3 | ||||||
| 45 | 48461 | ADAPTOR, Oil Level Gauge Tube | 1 | This Part is No Longer Available | |||||
| 46 | 25-48462 | O-RING, (.614 x .070) | 1 | ||||||
| 47 | 48463 | TUBE, Dipstick, Oil Level Gauge | 1 | This Part is No Longer Available | |||||
| 48 | 48464 | DIPSTICK, Oil Level | 1 | This Part is No Longer Available | |||||
| 49 | 25-35276 | O-RING, (.734 x .139) | 1 | ||||||
| 50 | 48466 | BRACKET, Mounting | 1 | This Part is No Longer Available | |||||
| 51 | 10-34290 | SCREW, (.250-20 x .625) | 2 | ||||||
| 52 | 13-26992 | LOCKWASHER, (.250) Stainless Steel | 2 | ||||||
| 53 | 47340A1 | BRACKET ASSEMBLY, Transmission Mount - Port | 1 | ||||||
| 54 | 35852 | MOUNT, Transmission Bracket | 1 | ||||||
| 55 | 47334A2 | BRACKET ASSEMBLY, Transmission Mount - Starboard | 1 | This Part is No Longer Available | |||||
| 56 | 35852 | MOUNT, Transmission Bracket | 1 | ||||||
| 57 | 10-47462 | SCREW, (.437-14 x 1.250) | 4 | ||||||
| 58 | 13-32993 | LOCKWASHER, (.437) | 4 | ||||||
| 59 | 10-47467 | SCREW, (.625-18 x 5.500) | 2 | ||||||
| 60 | 12-47466 | WASHER, (1.125 x 1.750 x .16) | 4 | ||||||
| 61 | 12-47475 | WASHER, (1.120 x 2.250 x .19) | 2 | ||||||
| 62 | 13-34846 | LOCKWASHER, Thackeray Spring (.636) | 2 | ||||||
| 63 | 12-33171 | WASHER, (.6406 x 1.750 x .125) | 2 | ||||||
| 64 | 11-22339 | 700-28360 | 525-11-22339 | NUT, (.625-18) | 2 | ||||
| 65 | 32-475166 | HOSE ASSEMBLY, (30.00 Inches), Transmission To Oil Cooler | 2 | ||||||
| 66 | 10-60179 | SCREW, (.437-14 x 3.500) | 6 | ||||||
| 67 | 12-45176 | WASHER, (.453 x .812 x .105) Stainless Steel | 6 | ||||||
| 68 | 12-20722 | WASHER, (.328 x .625 x .060) | 1 | This Part is No Longer Available | |||||
| 69 | 13-39107 | 700-21496 | LOCKWASHER, (.312-24) | 1 | |||||
| 70 | 11-22053 | NUT, (.312-24) | 1 | ||||||
| 71 | 84-88032A5 | CABLE ASSEMBLY, (3.00 Inches) Tan/Blue | 1 | ||||||
| 71 | 84-86322A29 | CABLE ASSEMBLY, (3.00 Inches) Black | 1 | ||||||
| 72 | 77054 | TIE STRAP, (14.50 Inches) | 1 | ||||||
| 73 | 84-896868A01 | HARNESS ASSEMBLY, Extension | 1 | NOTE: This Harness Is Used Between Engine Harness And Connects In Place Of Bravo Shift Plate And The Neutral Switch On The Transmission |
