525 EFI - Serial 0M953620 Thru 0M956326 - Engine Components (Crankshaft - Piston - Connecting Rods)

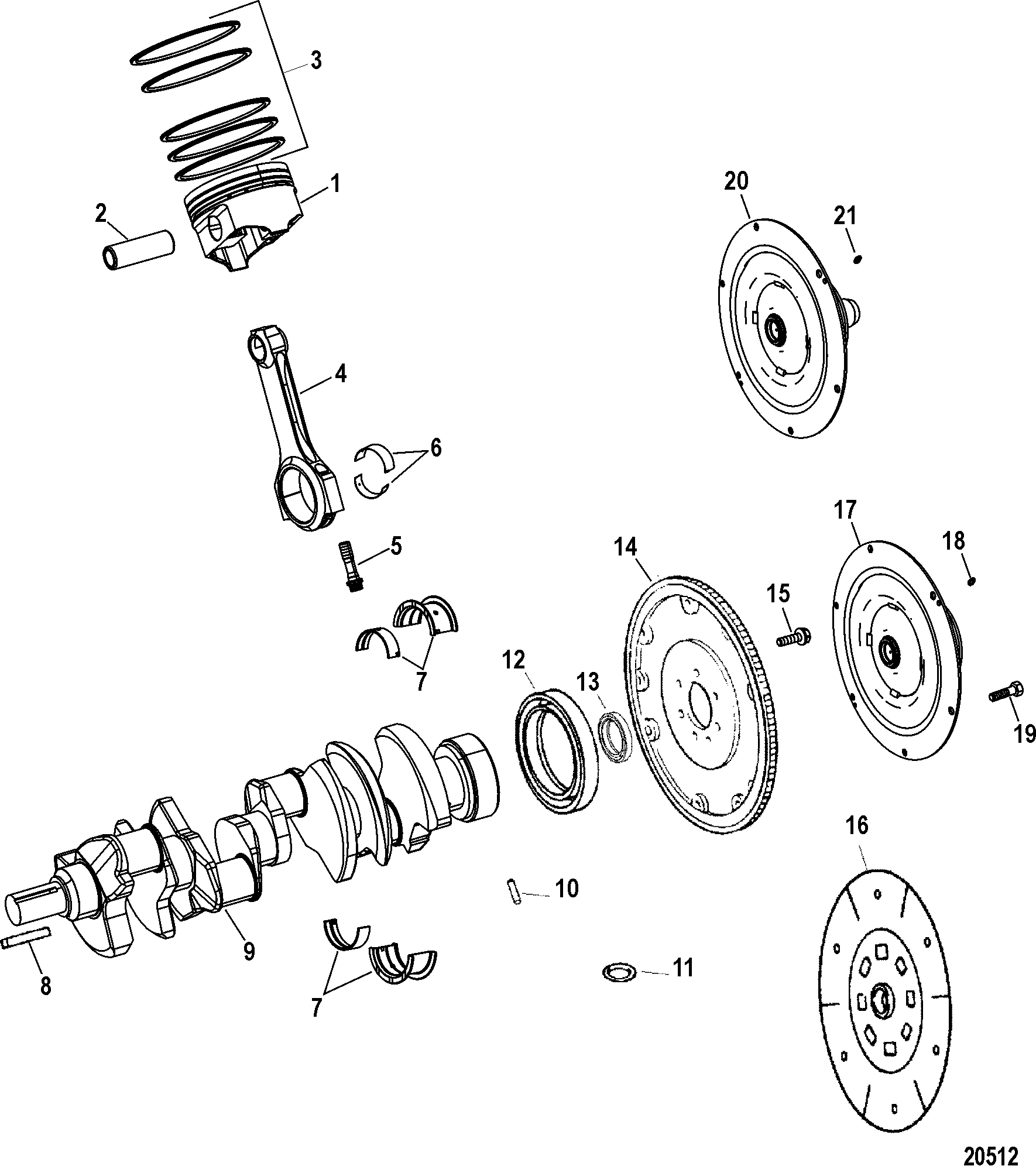

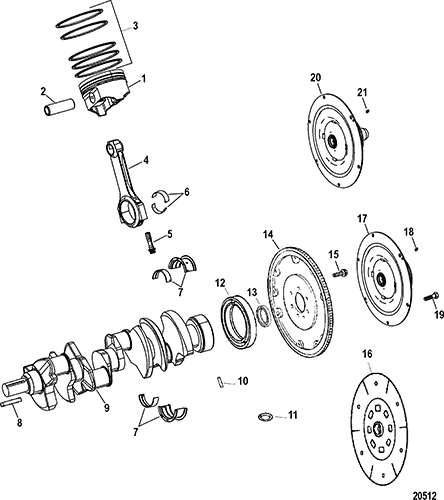

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components(Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A06)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates (Engine)
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo)
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly
- Trim Pump-Motor Assembly (865380A13)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 700-8M0005739 | PISTON ASSEMBLY, Standard | 8 | 5 | |||||
| 1 | 798-842266A02 | PISTON KIT, .003 Oversize | 8 | ||||||
| 1 | 737-827665A1 | PISTON ASSEMBLY, .030 Oversize | 8 | This Part is No Longer Available - NOTE: Piston Wrist Pins That Come With Piston Must Be Replaced With This Part 41-848819T | |||||
| 2 | 41-848819T | PIN, Piston | 8 | 5 | |||||
| 3 | 39-827660T | RING SET, Piston - Standard | 8 | 39-827660 | 5 | ||||
| 3 | 39-852935 | RING SET, Piston - .030 Oversize | 8 | This Part is No Longer Available | |||||
| 4 | 614-8M8020323 | CONNECTING ROD ASSEMBLY | 8 | 5 | |||||
| 5 | 10-8M0000838 | SCREW, Special | 16 | 5 | |||||
| 6 | 23-8M0030217 | BEARING SET, Connecting Rod - Standard | 8 | 23-841447 | 5 | ||||
| 6 | 23-8M0030218 | BEARING SET, Connecting Rod - .001 Oversize | AR | 23-841448 | |||||
| 6 | 23-8M0030216 | BEARING SET, Connecting Rod - .001 Undersize | AR | 23-841449 | |||||
| 6 | 23-8M0030982 | BEARING SET, Connecting Rod - .010 Undersize | AR | 23-841450 | |||||
| 7 | 8M0051198 | BEARING SET, Main - Standard | 1 | 23-842400 | 5 | ||||
| 7 | 8M0053743 | BEARING SET, Main - .001 Oversize | AR | 23-842401 | |||||
| 7 | 23-842402 | BEARING SET, Main - .001 Undersize | AR | ||||||
| 7 | 23-8M0053549 | BEARING SET, Main - .010 Undersize | AR | 23-842403 | |||||
| 8 | 28-845607 | KEY, Crankshaft | 1 | 5 | |||||
| 9 | 400-842271T01 | CRANKSHAFT ASSEMBLY | 1 | 5 | |||||
| 10 | 17-43504 | PIN, Dowel | 1 | 5 | |||||
| 11 | 25-69756 | O-RING, (.549 x .103), Number 5 Bearing Cap Oil Hole | 1 | 2,5 | |||||
| 12 | 26-811554 | SEAL, Oil | 1 | 2,5 | |||||
| 13 | 23-823108 | BUSHING, Crankshaft Pilot | 1 | Driveline Models 5 | |||||
| 14 | 230-843374T1 | FLYWHEEL | 1 | 5 | |||||
| 15 | 10-845757 | SCREW, (.437-20 x 1.00) | 6 | 5 | |||||
| 16 | 8M0051206 | DRIVEPLATE ASSEMBLY | 1 | 816618 | Six Drive Models | ||||
| 17 | 861523A9 | COUPLER ASSEMBLY, Engine - Short Aluminium Hub | 1 | Driveline Models | |||||
| 17 | 861523A18 | COUPLER ASSEMBLY, Engine - Short Steel Hub | 1 | Driveline Models | |||||
| 18 | 22-49099 | FITTING | 2 | ||||||
| 19 | 10-863480 | SCREW, (.375-16 x 1.125) | 6 | ||||||
| 20 | 861523A20 | COUPLER ASSEMBLY, Engine - Long Steel Hub | 1 | Bravo Models | |||||
| 21 | 22-74036 | FITTING, Grease | 1 | ||||||
| - | 27-843073A06 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing | |||||
| - | 841178A05 | PARTIAL ENGINE ASSEMBLY | 1 |
