525 EFI - Serial 0M953620 Thru 0M956326 - Engine Components (Water Pump And Front Cover)

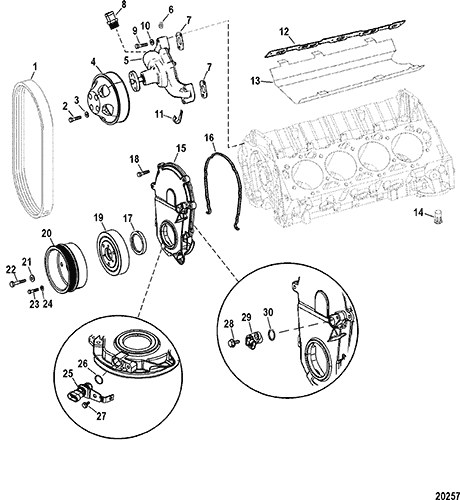

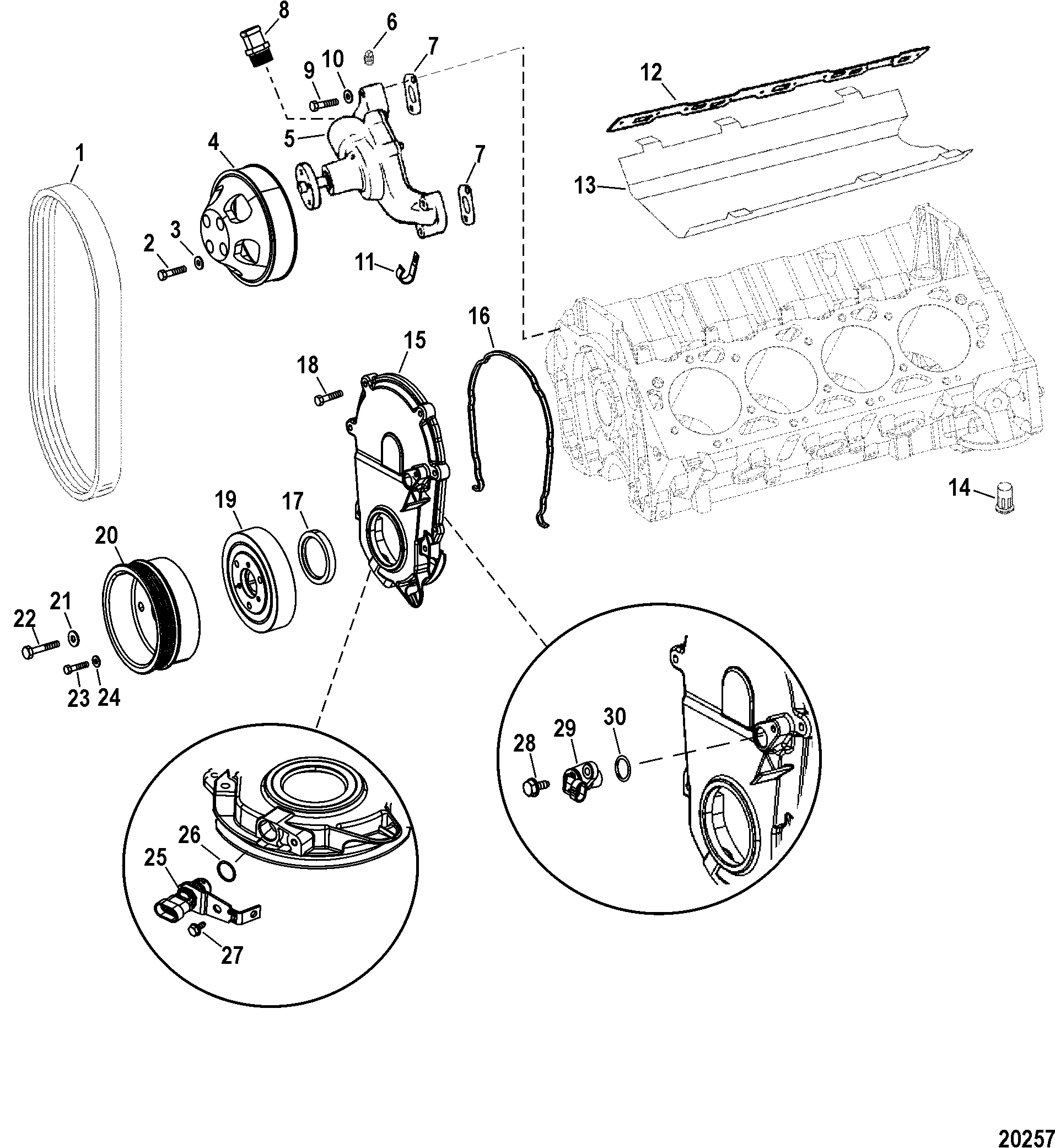

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components(Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A06)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates (Engine)
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo)
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly
- Trim Pump-Motor Assembly (865380A13)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 57-865615Q12 | BELT, Serpentine (2266 mm) | 1 | 57-865615012 | |||||
| 2 | 10-849377 | SCREW, (.312-24 x .750) Stainless Steel | 4 | ||||||
| 3 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 4 | ||||||
| 4 | 842444T | PULLEY, Circulating Water Pump - Blue | 1 | ||||||
| 5 | 811573A04 | PUMP ASSEMBLY, Circulating Water | 1 | 811573A03 | 5 | ||||
| 6 | 22-845174 | PLUG, (.500-14 x .610) Brass | 1 | 5 | |||||
| 7 | 27-49110 | GASKET, Circulating Water Pump Mount | 2 | 2,5 | |||||
| 8 | 22-806242 | CONNECTOR, Hose | 1 | 5 | |||||
| 9 | 10-822168 | SCREW, (.375-16 x 1.750) Stainless Steel | 1 | 5 | |||||
| 9 | 10-842787 | SCREW, (.375-16 x 2.00) Stainless Steel | 2 | 5 | |||||
| 10 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 3 | 5 | |||||
| 11 | 54-78945 | J CLAMP, Harness Support | 1 | 5 | |||||
| 12 | 27-843073 | GASKET, Intake Manifold Mount | 2 | 2,5 | |||||
| 13 | 845756T | SHIELD, Oil Intake | 1 | 816073 | 5 | ||||
| 14 | VALVE, Relief | 1 | 5 | ||||||
| 15 | 842250T02 | COVER ASSEMBLY, Cylinder Front - Black | 1 | 5 | |||||
| 16 | 27-850456 | GASKET, Front Cover Mount | 1 | 2,5 | |||||
| 17 | 26-8219471 | SEAL, Oil | 1 | 2,5 | |||||
| 18 | 10-F2030 | SCREW, (.250-20 x 1.250) Stainless Steel | 6 | 5 | |||||
| 19 | 8M8021041 | DAMPER | 1 | 845625004 | 5 | ||||
| 20 | 841957T | PULLEY, Crankshaft - Blue | 1 | 5 | |||||
| 21 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 3 | 5 | |||||
| 22 | 10-8431471 | SCREW, (.375-16 x 1.750) | 3 | 5 | |||||
| 23 | SCREW, (.500-20 x 2.500) | 1 | 5 | ||||||
| 24 | 12-8413901 | WASHER, (.520 x 2.063 x .280) | 1 | 5 | |||||
| 25 | 864297T01 | SENSOR ASSEMBLY, Crankshaft Position | 1 | 864297001 | 5 | ||||
| 26 | 25-885192 | O-RING | 1 | 2,5 | |||||
| 27 | 10-41508 | SCREW, (.250-20 x .500) Stainless Steel | 1 | 5 | |||||
| 28 | 10-901921 | SCREW, (.250-20 x .750) Stainless Steel With Nylon Patch | 1 | 5 | |||||
| 29 | 8M0011986 | SENSOR ASSEMBLY, Cam Position | 1 | 880609001 | 5 | ||||
| 30 | NSS | NOT SOLD SEPARATE, O-Ring | 1 | This Part is not sold separately 5 | |||||
| - | 27-843073A06 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing | |||||
| - | 841178A05 | PARTIAL ENGINE ASSEMBLY | 1 |
