525 EFI - Serial 0M953620 Thru 0M956326 - Power-Assisted Steering Components

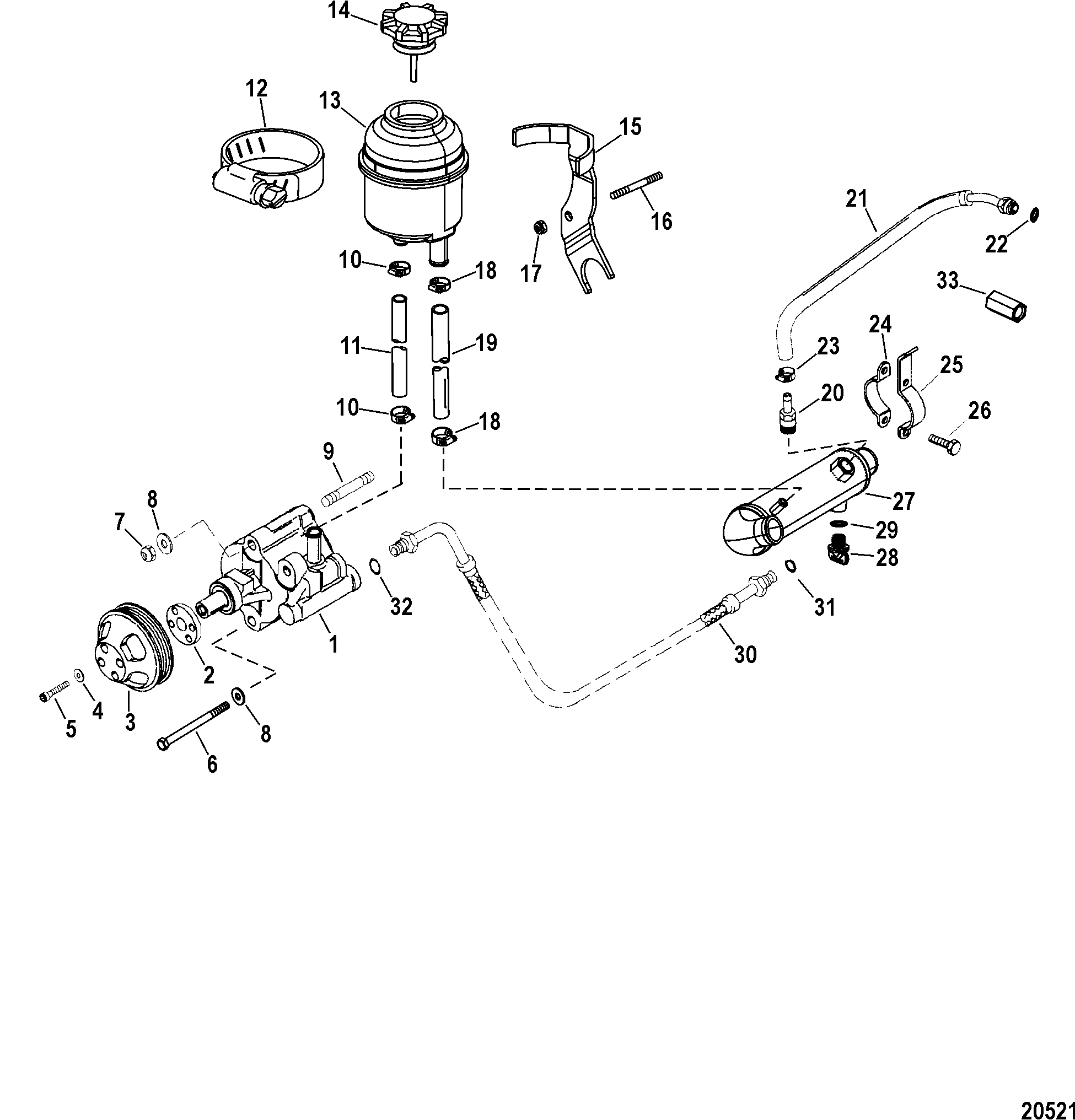

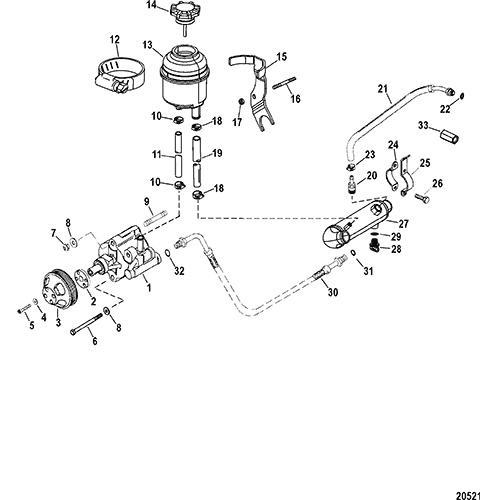

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Closed Cooling System Components
- Driveshaft And Tailstock (Driveline)
- Driveshaft Extension Components(Bravo)
- Electrical Components (Ignition)
- Electrical Components (Starter And Alternator)
- Electrical Components (Wiring)
- Engine Components (Crankshaft - Piston - Connecting Rods)
- Engine Components (Cylinder Block And Camshaft)
- Engine Components (Cylinder Head)
- Engine Components (Water Pump And Front Cover)
- Exhaust Header - Tailpipe Assembly
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Flywheel Housing (Transmission Models)
- Fuel Pump And Fuel Cooler
- Fuel Rails And Injectors
- Fuse Harness Kit (879365A20)
- Gasket-Seal Set - Engine Overhaul (27-843073A06)
- Intake Manifold And Components
- Intake Plenum And Components
- Mount Plates (Engine)
- Oil Cooler (Transmission)
- Oil Cooler And Oil Filter (Engine)
- Oil Pan And Oil Pump
- Power-Assisted Steering Components
- Reservoir Bottle (Transmission Fluid)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket Components (Bravo)
- Transmission And Components (Driveline)
- Transmission And Components (Six Drive - Bravo)
- Trim Pump Assembly
- Trim Pump-Motor Assembly (865380A13)
- Water Hoses (Closed Cooling)
- Water Hoses (Sea Water)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 849906A15 | PUMP KIT, Power-Assisted Steering - Complete | 1 | This Part is No Longer Available | |||||
| 1 | 849906A28 | PUMP ASSEMBLY, Power-Assisted Steering - Black | 1 | ||||||
| 2 | 47530 | HUB, Pump Pulley | 1 | ||||||
| 3 | 842445T | PULLEY, Blue | 1 | ||||||
| 4 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 4 | ||||||
| 5 | 10-849377 | SCREW, (.312-24 x .750) Stainless Steel | 4 | ||||||
| 6 | 10-843575 | SCREW, (.375-16 x 4.00) Stainless Steel | 1 | ||||||
| 7 | 11-82671013 | NUT, (.375-24) Stainless Steel | 1 | ||||||
| 8 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 2 | ||||||
| 9 | 16-849375 | STUD, (.375-24 x 3.750) | 1 | ||||||
| 10 | 54-815504406 | CLAMP, Worm Gear | 2 | ||||||
| 11 | 32-891599002 | HOSE, (10.62 Inches), Reservoir To Pump | 1 | ||||||
| 12 | 54-18076016 | CLAMP, Worm Gear | 1 | ||||||
| 13 | 865264T | RESERVOIR ASSEMBLY, Oil - Power-Assisted Steering | 1 | ||||||
| 14 | 8M0050237 | CAP, Oil Reservoir - Black | 1 | 865263001 | |||||
| 15 | 8M0050830 | BRACKET | 1 | 844160 | |||||
| 16 | 16-818824 | STUD, (.375-16/.375-24 x 1.590) | 1 | ||||||
| 17 | 11-82671013 | NUT, (.375-24) Stainless Steel | 1 | ||||||
| 18 | 54-815504105 | CLAMP, Worm Gear (11-18 mm) | 2 | ||||||
| 19 | 32-8M0062341 | HOSE, (53.00 Inches Bulk), Cut 25.00 Inches - Reservoir To Cooler | 1 | 32-5251914 | |||||
| 20 | 22-70834 | CONNECTOR, (.375-18) Straight - Brass | 1 | ||||||
| 21 | 32-80622142 | HOSE ASSEMBLY, (84.00 Inches Bulk), Cut 46.00 Inches | 1 | ||||||
| 22 | 25-89879 | O-RING, (.301 x .064) | 1 | 2 | |||||
| 23 | 54-815504105 | CLAMP, Worm Gear (11-18 mm) | 1 | ||||||
| 24 | 563281 | BRACKET, Oil Cooler Support - Short Style With Weldnut | 1 | ||||||
| 25 | 63820F3 | BRACKET, Oil Cooler Support - Long Style | 1 | ||||||
| 26 | 10-817505 | SCREW, (.250-20 x .620) Stainless Steel | 2 | ||||||
| 27 | 899745T02 | COOLER, Power Steering Oil | 1 | 841064T01 | |||||
| 28 | 22-806608A02 | PLUG KIT, (.500-13) Royal Blue | 1 | 22-806608A1 | |||||
| 29 | 25-831985 | O-RING, (.468 x .078) | 1 | 2 | |||||
| 30 | 32-84243550 | HOSE ASSEMBLY, Hi Pressure - Pump To Booster | 1 | ||||||
| 31 | 25-806232 | O-RING, (.239 x .064) | 1 | 2 | |||||
| 32 | 25-89879 | O-RING, (.301 x .064) | 1 | 2 | |||||
| 33 | 22-806231001 | COUPLER, Power Steering Hoses | 1 | NOTE: For Packaging And Shipping Purposes Only | |||||
| - | 27-843073A06 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
