525 SC (Gen 5) GM 454 V-8 1996 - Serial 0F615814 Thru 0F745215 - Audio Warning System

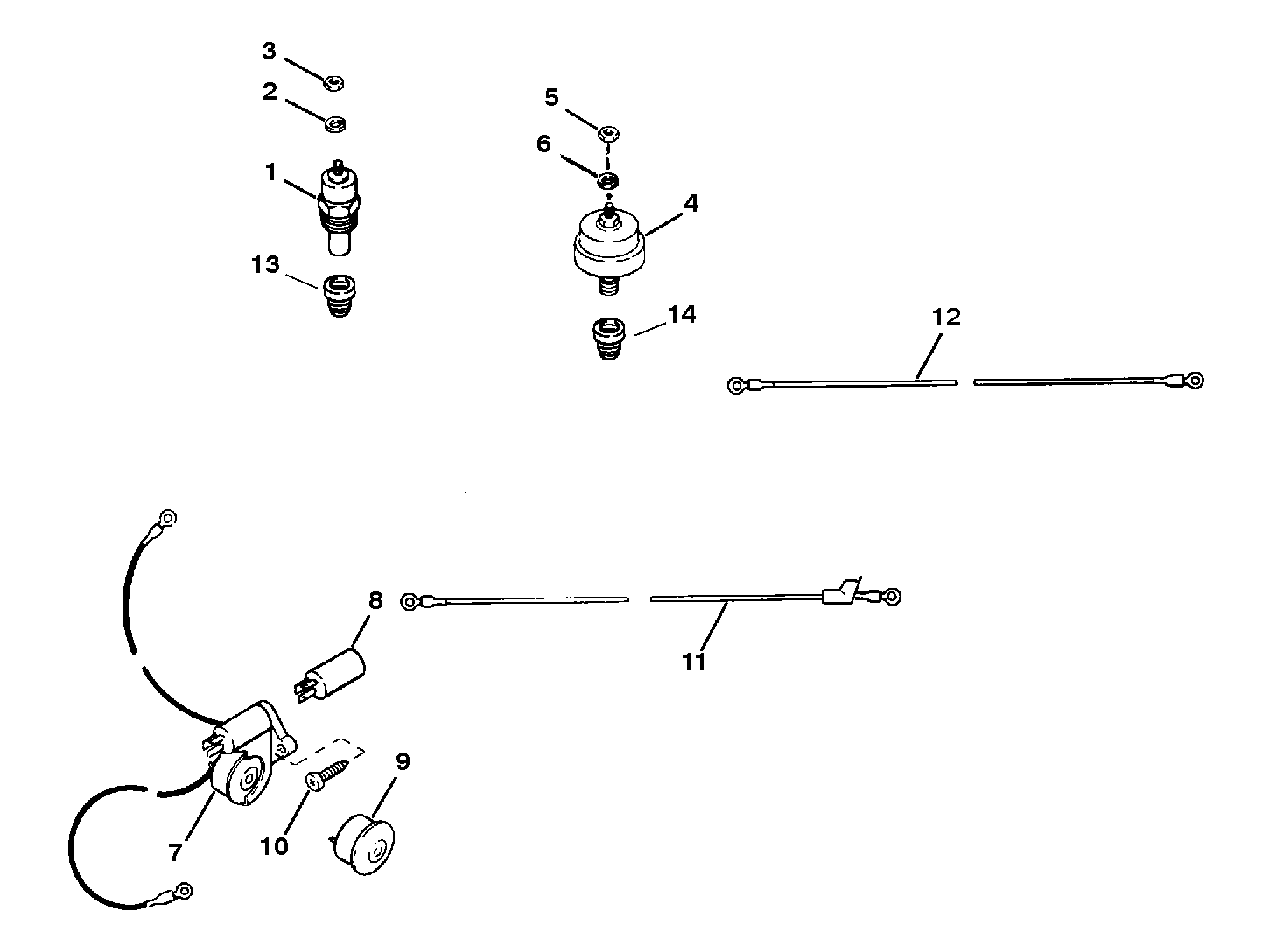

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-806964A3) (2.875 In. Dia. End Cap)
- Starter Assembly (50-808011A1)
- Starter Assembly (50-99418A2) (3.500 In. Dia. End Cap)
- Thermostat Housing
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 48952 | SENDER ASSEMBLY-Water Temperature | 1 | Intake Manifold | |||||
| 2 | 13-26996 | LOCKWASHER (#10)-Temperature Switch | 1 | ||||||
| 3 | 11-45076 | NUT (#10-32)-Temperature Switch | 1 | ||||||
| 4 | 87-805605A1 | SWITCH ASSEMBLY-Pressure-Engine Block | 1 | ||||||
| 5 | 11-68219 | NUT (#10-32)-Pressure Switch Terminal | 1 | ||||||
| 6 | 13-26996 | LOCKWASHER (#10) | 1 | ||||||
| 7 | 816492A14 | HOUSING KIT-Buzzer | 1 | 86047A11 | (WITH TWO RING CONNECTORS) Please note - this is the new style buzzer, not horn & timer | ||||
| 8 | 816492A14 | TIMER-Temperature Buzzer | 1 | 86045 | Please note - this is the new style buzzer, not horn & timer | ||||
| 9 | 68878A6 | HORN ASSEMBLY | 1 | No longer made, limited availability | |||||
| 10 | 10-69013 | SCREW (#10-16 x .875) | 2 | ||||||
| 11 | 84-86044A6 | CABLE ASSEMBLY (20.00 Ft.) (Tan/Blue) (2 Rings) | 1 | This Part is No Longer Available | |||||
| 7 | 816492A14 | HOUSING KIT-Buzzer | 1 | 86047A16 | (WITH 1 RING - 1 SPADE CONNECTOR) Please note - this is the new style buzzer, not horn & timer | ||||
| 8 | 816492A14 | TIMER-Temperature Buzzer | 1 | 86045 | Please note - this is the new style buzzer, not horn & timer | ||||
| 9 | 68878A6 | HORN ASSEMBLY | 1 | No longer made, limited availability | |||||
| 11 | 84-86044A11 | CABLE ASSY (20.00 Ft.) (Tan/Blue) (1 Ring - 1 Spade) | 1 | This Part is No Longer Available | |||||
| 12 | 84-86044A4 | CABLE ASSEMBLY (36.00 In.) (Tan/Blue) | 1 | This Part is No Longer Available | |||||
| 12 | 84-88032A6 | CABLE ASSEMBLY (Tan/Blue) (Harness to Sender) | 1 | This Part is No Longer Available | |||||
| 13 | 23-848552 | BUSHING-Reducer-Intake Manifold | 1 | ||||||
| 14 | 22-64013 | BUSHING-Reducer-Engine Block | 1 |
