525 SC (Gen 5) GM 454 V-8 1996 - Serial 0F615814 Thru 0F745215 - Distributor And Ignition Components

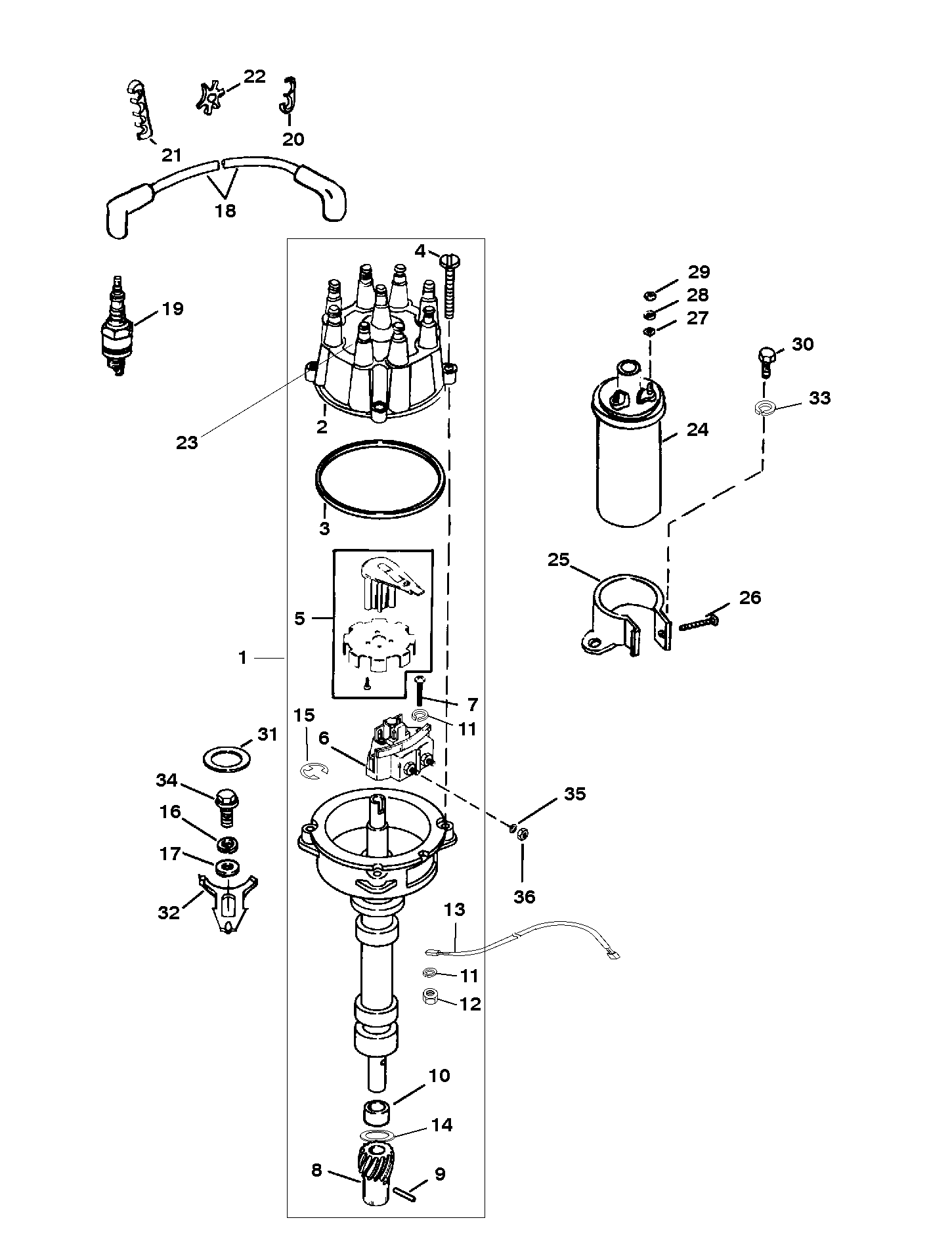

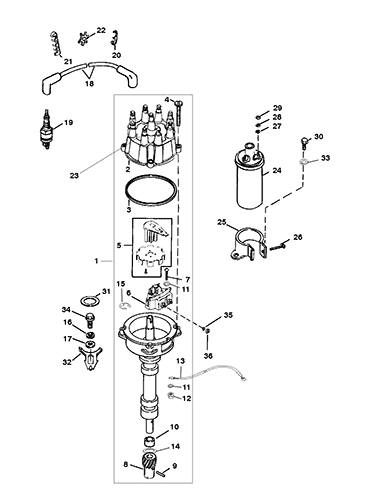

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 805185A36     700-71250   DISTRIBUTOR ASSEMBLY 1 90747A27
2 805759T1   676-9-29403     CAP ASSEMBLY 1 805759A2
3 27-805760   676-9-61050 700-32060   GASKET-Distributor Cap 1
55
4 10-90926     700-22305   SCREW (#10-32 x .812) 4

5 13524T1     700-72880   WHEEL ASSEMBLY-Rotor Sensor 1 13524A1
6 87-892150Q02         SENSOR ASSEMBLY 1 87-91019A3
7 10-66686     700-22311   SCREW (#10-32 x 1.00) 1

7 10-72202     700-22312   SCREW (#10-32 x 1.250) 1

8 43-818807     700-19360   GEAR-Drive 1

9 17-47617     700-22195   PIN 1

10 23-90915     700-21426   BUSHING 2

11 13-26996         LOCKWASHER (#10) 3

12 11-68219         NUT (#10-32) 1

13 84-86322A17         CABLE ASSEMBLY (Black)-Ground 1   This Part is No Longer Available
14 12-90931     700-21661   WASHER-Thrust 1

15 53-90916         RING-Retaining 1

16 13-35048     700-21495   LOCKWASHER (.375) 1

17 12-20553     700-21675   WASHER 1

18 84-847701Q7         CABLE KIT-Ignition-Spark Plugs & Coil (BLUE) 1 84-847701A7
19 33-8134214         SPARK PLUG 8 33-813421
20 54676         RETAINER (2 WIRE) 2

21 32783         RETAINER (3 WIRE) 2

22 32784         RETAINER (4 WIRE) 4

23 37-92155         DECAL-Distributor-Firing Order 1

24 300-8M0079202         COIL KIT-Ignition 1 392-805570A2
25 65970T1         BRACKET-Coil Mount (On Electrical Bracket) 1

26 10-41408         SCREW (#10-32 x 1.500) 1

27 12-30164         WASHER 2

28 13-26996         LOCKWASHER (#10) 2

29 11-68219         NUT (#10-32) 2

30 10-76926         SCREW (.375-16 x .875) 1

31 27-344863         GASKET 1
55
32 52185         CLAMP 1

33 13-35048     700-21495   LOCKWASHER (.375) 1

34 10-76926         SCREW (.375-16 x .875) 1

35 13-26996         LOCKWASHER (#10) 2

36 11-68219         NUT (#10-32) 2

- 27-827014A98         GASKET SET-Engine Overhaul 1 27-827014A96 53
