525 SC (Gen 5) GM 454 V-8 1996 - Serial 0F615814 Thru 0F745215 - Starter And Alternator

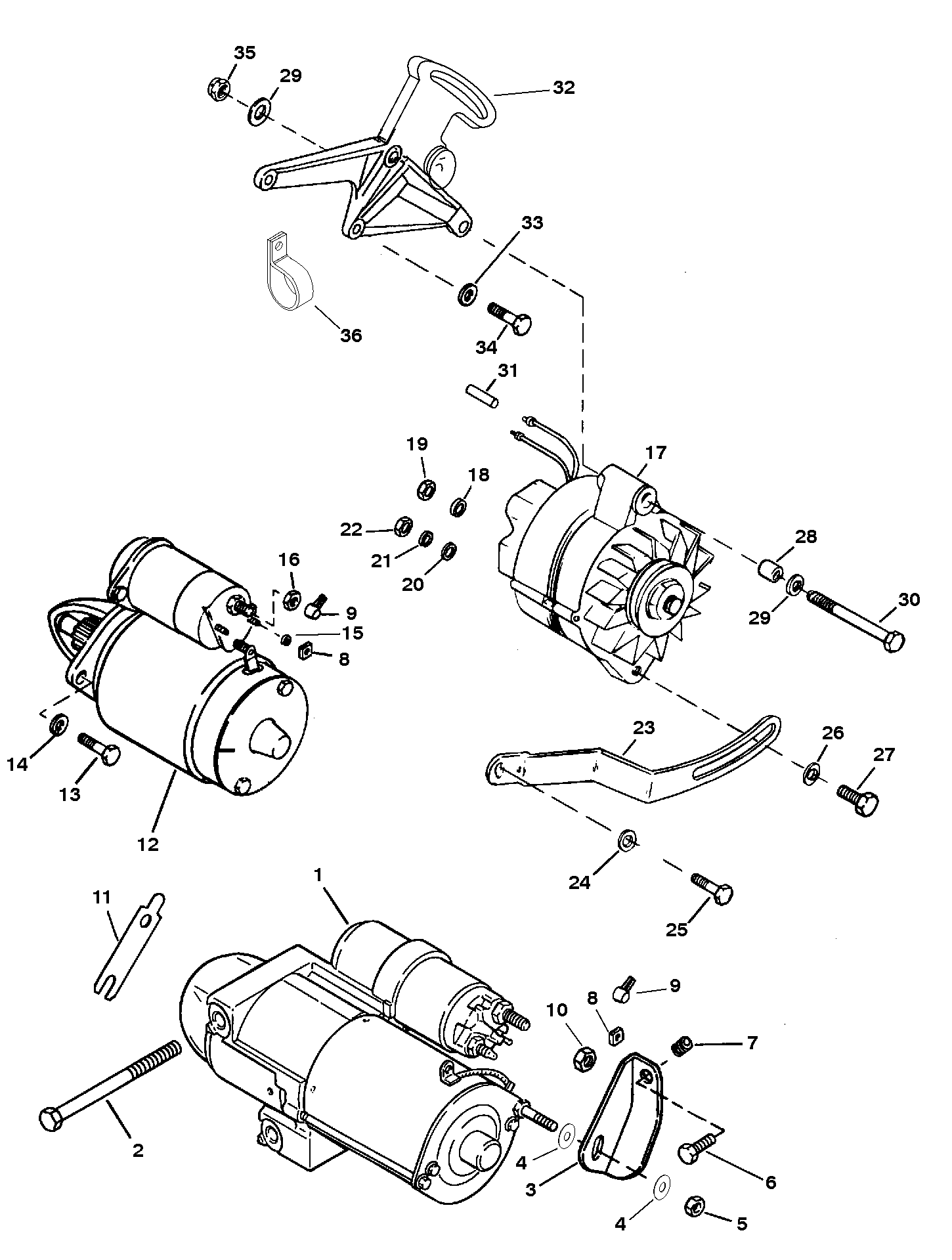

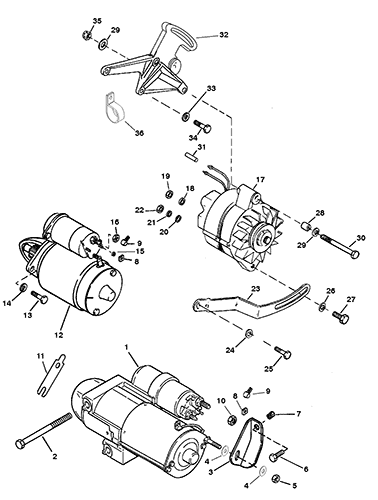

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-806964A3) (2.875 In. Dia. End Cap)
- Starter Assembly (50-808011A1)
- Starter Assembly (50-99418A2) (3.500 In. Dia. End Cap)
- Thermostat Housing
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 50-863007A1 | STARTER ASSY | 1 | 50-99418A2 | (BRAVO PLUG-IN) (3.500 IN. DIA.) (SEE "STARTER ASSEMBLY (50-99418A2)") SUPERSEDES TO ANOTHER PART NUMBER 1 | ||||
| 1 | 50-863007A1 | STARTER ASSY | 1 | 50-806964A3 | (BRAVO PLUG-IN) (2.875 IN. DIA.) (SEE "STARTER ASSEMBLY (50-806964A3)") NOT SHOWN | ||||
| 2 | 10-8053432 | SCREW-Special | 2 | AS REQUIRED | |||||
| 3 | 89057 | BRACE-(3.500 In. Starter) | 1 | This Part is No Longer Available COMPONENT OF ENGINE GASKET SET [27-827014A96] | |||||
| 4 | 12-29245 | 700-21490 | WASHER-(3.500 In. Starter) | 2 | OPTIONAL | ||||
| 5 | 11-8267098 | NUT (10M) (3.500 In. Starter) | 1 | 11-56374 | NOT SOLD SEPARATE (PARTS SHOULD BE ORDERED FROM A LOCAL SUPPLIER | ||||
| 6 | 10-35765A1 | SCREW & WASHER (.312-18 x .625) (3.500 In. Starter) | 1 | ||||||
| 7 | 22-325611 | PLUG-(3.500 In. Starter) | 1 | ||||||
| 8 | 11-400211 | NUT (5M) | 1 | ||||||
| 9 | 85-79695T | BOOT-Insulator | 1 | 85-79695 | |||||
| 10 | 11-15874 | NUT (10M) (3.500 In. Starter) | 1 | ||||||
| 10 | 11-401388 | NUT (8M) (2.875 In. Starter) | 1 | 11-400635 | |||||
| 11 | 15-8172721 | SHIM-Special | 1 | ||||||
| 12 | 50-808011A05 | STARTER ASSEMBLY | 1 | 50-17251A3 | (DRIVELINE) (SEE "STARTER ASSEMBLY (50-17251A3)") 1 | ||||
| 12 | 50-808011A05 | STARTER ASSEMBLY | 1 | 50-808011A1 | (DRIVELINE) (SEE "STARTER ASSEMBLY (50-808011A1)") | ||||
| 13 | 10-47461 | SCREW (.437-14 x 1.00) | 2 | ||||||
| 14 | 13-32993 | LOCKWASHER (.437) | 2 | ||||||
| 15 | 13-26993 | LOCKWASHER (.312) | 1 | ||||||
| 16 | 11-4013610 | NUT (M10) | 1 | 11-400266 | |||||
| 17 | 8171191 | ALTERNATOR ASSEMBLY (BLUE) | 1 | (SEE "ALTERNATOR ASSEMBLY (MANDO #AC-155603)") | |||||
| 18 | 13-26992 | LOCKWASHER (.250) | 1 | ||||||
| 19 | 11-8267098 | NUT (.250-20) | 1 | 11-56374 | |||||
| 20 | 12-96457 | WASHER | 1 | ||||||
| 21 | 13-26996 | LOCKWASHER (#10) | 1 | ||||||
| 22 | 11-79989 | NUT (#10-24) | 1 | ||||||
| 23 | 85013T | BRACE-Alternator Adjusting | 1 | ||||||
| 24 | 12-45176 | 700-28420 | WASHER | 1 | |||||
| 25 | 10-825427 | SCREW (.437-14 x 1.250) | 1 | ||||||
| 26 | 12-26168 | WASHER | 1 | ||||||
| 27 | 10-29198 | SCREW & LOCKWASHER (.312-18 x .875) | 1 | ||||||
| 28 | 23-33186 | BUSHING | 1 | ||||||
| 29 | 12-20553 | 700-21675 | WASHER | 3 | |||||
| 30 | 10-48308 | SCREW (.375-24 x 3.750) | 1 | ||||||
| 31 | 5790811 | SLEEVE-Alternator Lead (10.00 In. Bulk) (Cut As Req'd) | 1 | ||||||
| 32 | 848146T | BRACKET-Alternator Mount | 1 | 848146 | |||||
| 33 | 12-45176 | 700-28420 | WASHER | 3 | |||||
| 34 | 10-825427 | SCREW (.437-14 x 1.250) | 3 | ||||||
| 35 | 11-23161 | NUT (.375-24) | 1 | ||||||
| 36 | 54-848130 | CLIP-Hose Circulating Pump | 1 | No longer made, limited availability |
