525 SC (Gen 5) GM 454 V-8 1996 - Serial 0F615814 Thru 0F745215 - Crankshaft, Pistons And Connecting Rods

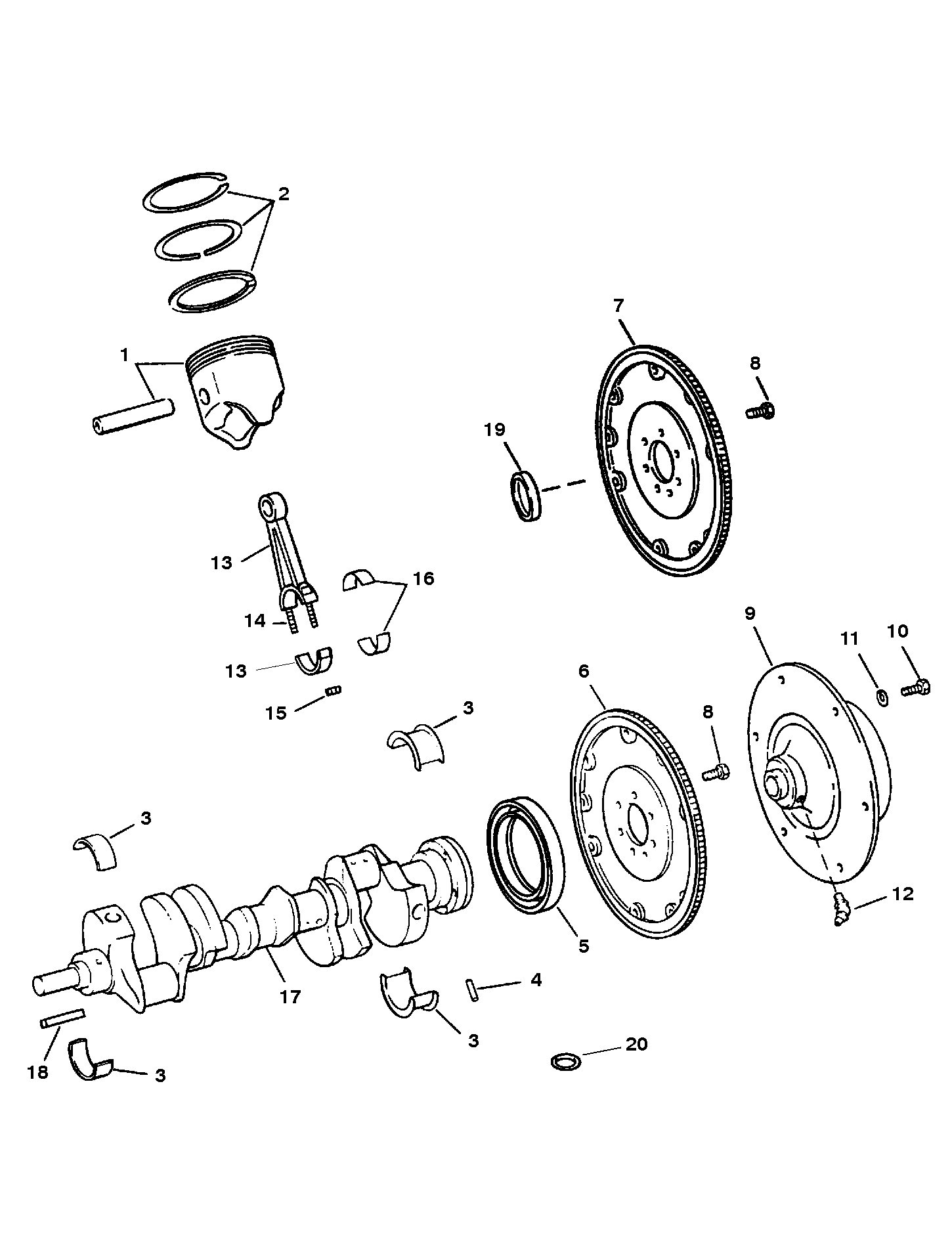

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-806964A3) (2.875 In. Dia. End Cap)
- Starter Assembly (50-808011A1)
- Starter Assembly (50-99418A2) (3.500 In. Dia. End Cap)
- Thermostat Housing
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 798-817114 | PISTON ASSEMBLY (STANDARD) | 8 | This Part is No Longer Available | |||||
| 1 | 798-817114T1 | PISTON ASSEMBLY (.030 OS) | 8 | 798-817114A1 | This Part is No Longer Available | ||||
| 2 | 39-848350030 | RING SET-Piston (.030 OS) | 8 | ||||||
| 2 | 39-67127 | RING SET-Piston (STANDARD) | 8 | ||||||
| 3 | 23-818473001 | BEARING SET (STANDARD) | 1 | 23-818473 | |||||
| 3 | 23-818474 | BEARING SET (.001 US) | AR | 3 | |||||
| 3 | 23-818475 | BEARING SET (.002 US) | AR | 3 | |||||
| 3 | 818476001 | BEARING SET (.010 US) | AR | 23-818476 | 3 | ||||
| 3 | 23-818477 | BEARING SET (.020 US) | AR | 3 | |||||
| 4 | 17-843378 | PIN-Dowel (.250 Dia.) | 1 | 17-35312 | |||||
| 5 | 26-811554 | SEAL-Oil | 1 | 4 | |||||
| 6 | 230-843374T1 | FLYWHEEL | 1 | 230-811561 | |||||
| 7 | 230-8115631 | FLYWHEEL | 1 | 230-811563 | (GEN V DRIVELINE) 1 | ||||
| 8 | 10-845757 | SCREW (.437-20 x 1.00) | 6 | 10-49845 | |||||
| 9 | 861523A9 | COUPLING ASSEMBLY-Engine | 1 | 18311A17 | |||||
| 10 | 10-35091 | SCREW (.375-16 x 1.00) | 6 | ||||||
| 11 | 12-20572 | WASHER | 6 | ||||||
| 12 | 22-49099 | FITTING-Grease | 2 | ||||||
| 13 | 614-8M0084554 | CONNECTING ROD ASSEMBLY | 8 | 614-9641 | |||||
| 14 | 10-19234 | BOLT-Conn Rod Cap | 16 | ||||||
| 15 | 11-37493 | NUT-Conn Rod Cap Bolt | 16 | No longer made, limited availability | |||||
| 16 | 23-85726001 | BEARING SET (STANDARD) | 8 | 23-85726 | |||||
| 16 | 23-85727 | BEARING SET (.001 US) | AR | 3 | |||||
| 16 | 23-85728 | BEARING SET (.002 US) | AR | This Part is No Longer Available 3 | |||||
| 16 | 23-85691 | BEARING SET (.010 US) | AR | 3 | |||||
| 16 | 23-85729 | BEARING SET (.020 US) | AR | 3 | |||||
| 17 | 429-811552 | CRANKSHAFT | 1 | ||||||
| 18 | 28-845607 | KEY-Crankshaft | 1 | 28-811558 | |||||
| 19 | 23-49126 | BUSHING-Pilot-Crankshaft | 1 | (DRIVELINE MODELS ONLY) | |||||
| 20 | 25-69756 | O RING (#5 Bearing Cap Oil Hole) | 1 | 25-811528 | 4 | ||||
| - | 27-827014A98 | GASKET SET-Engine Overhaul | 1 | 27-827014A96 | 1 |
