525 SC (Gen 5) GM 454 V-8 1996 - Serial 0F615814 Thru 0F745215 - Cylinder Head And Rocker Cover

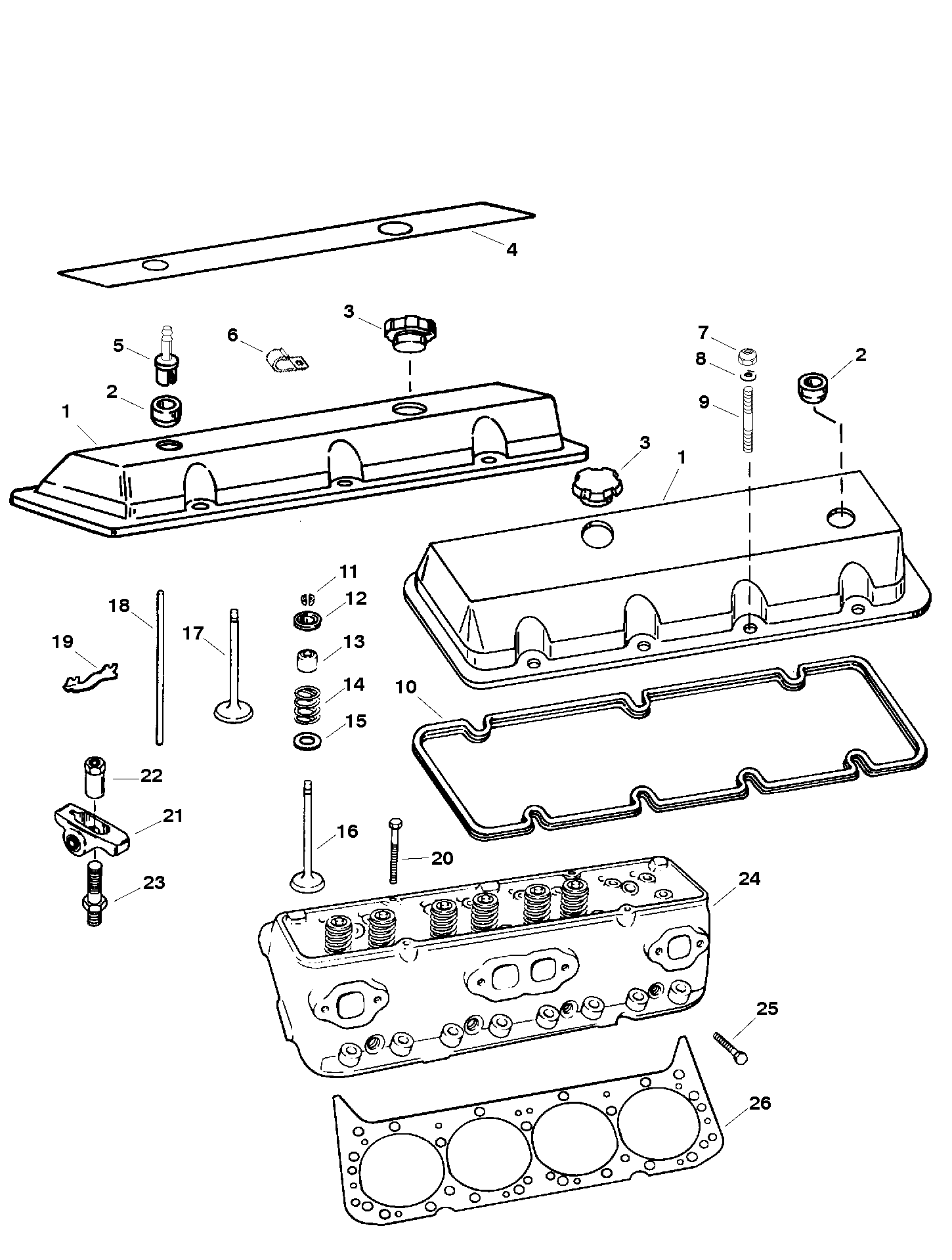

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-806964A3) (2.875 In. Dia. End Cap)
- Starter Assembly (50-808011A1)
- Starter Assembly (50-99418A2) (3.500 In. Dia. End Cap)
- Thermostat Housing
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 811587A2 | COVER ASSEMBLY-Rocker Valve (Blue) | 2 | ||||||
| 2 | 25-811553 | GROMMET-Rocker Cover | 2 | 4 | |||||
| 3 | 36-811569 | CAP-Oil Filler | 2 | ||||||
| 4 | 37-848590 | DECAL | 2 | This Part is No Longer Available | |||||
| 5 | 22-8485571 | FITTING | 2 | 22-848557 | |||||
| 6 | 54-642352 | J CLIP | 2 | ||||||
| 7 | 11-35888 | 676-9-72001 | 700-21180 | NUT (.250-28)-Rocker Cover Stud | 14 | ||||
| 8 | 12-35462 | WASHER-Rocker Cover Stud | 14 | ||||||
| 9 | 16-56766 | STUD-Rocker Cover | 14 | ||||||
| 10 | 27-811588 | 676-9-61315 | GASKET-Rocker Cover | 2 | 4 | ||||
| 11 | 96028 | KEY-Valve Stem | 32 | ||||||
| 12 | 843376 | RETAINER | 16 | 98598 | |||||
| 13 | 26-827645 | SEAL-Valve | 16 | 15832 | 4 | ||||
| 14 | 24-13455T | SPRING | 16 | 24-13455 | |||||
| 15 | 15-845669 | SHIM (.015)-Valve Spring | AR | 15-54531 | 3 | ||||
| 15 | 15-77624 | SHIM (.030)-Valve Spring | AR | 3 | |||||
| 16 | 843080 | VALVE-Exhaust | 8 | 13024 | |||||
| 17 | 986781 | VALVE-Inlet | 8 | ||||||
| 18 | 848263 | PUSHROD-Valve (INLET) | 8 | ||||||
| 18 | 848266 | PUSHROD-Valve (EXHAUST) | 8 | ||||||
| 19 | 845707 | GUIDE-Push Rod | 8 | 811586 | |||||
| 20 | 10-8M0000482 | BOLT (4.125)-Cylinder Head | 24 | 10-49105 | |||||
| 21 | 845618T | ARM-Valve Rocker | 16 | 848589 | |||||
| 22 | 11-848610 | NUT-Valve Rocker Arm | 16 | ||||||
| 23 | 16-821836 | STUD-Valve Rocker Arm | 16 | ||||||
| 24 | 938-826363T3 | HEAD ASSEMBLY-Cylinder | 2 | 938-826363A1 | This Part is No Longer Available | ||||
| 25 | 10-8M0000463 | BOLT (2.00)-Cylinder Head | 8 | 10-491061 | |||||
| 26 | 879150139 | GASKET-Cylinder Head | 2 | 27-811546 | 4 | ||||
| - | 27-827014A98 | GASKET SET-Engine Overhaul | 1 | 27-827014A96 | 1 |
