525 SC (Gen 5) GM 454 V-8 1996 - Serial 0F615814 Thru 0F745215 - Cylinder Block And Camshaft

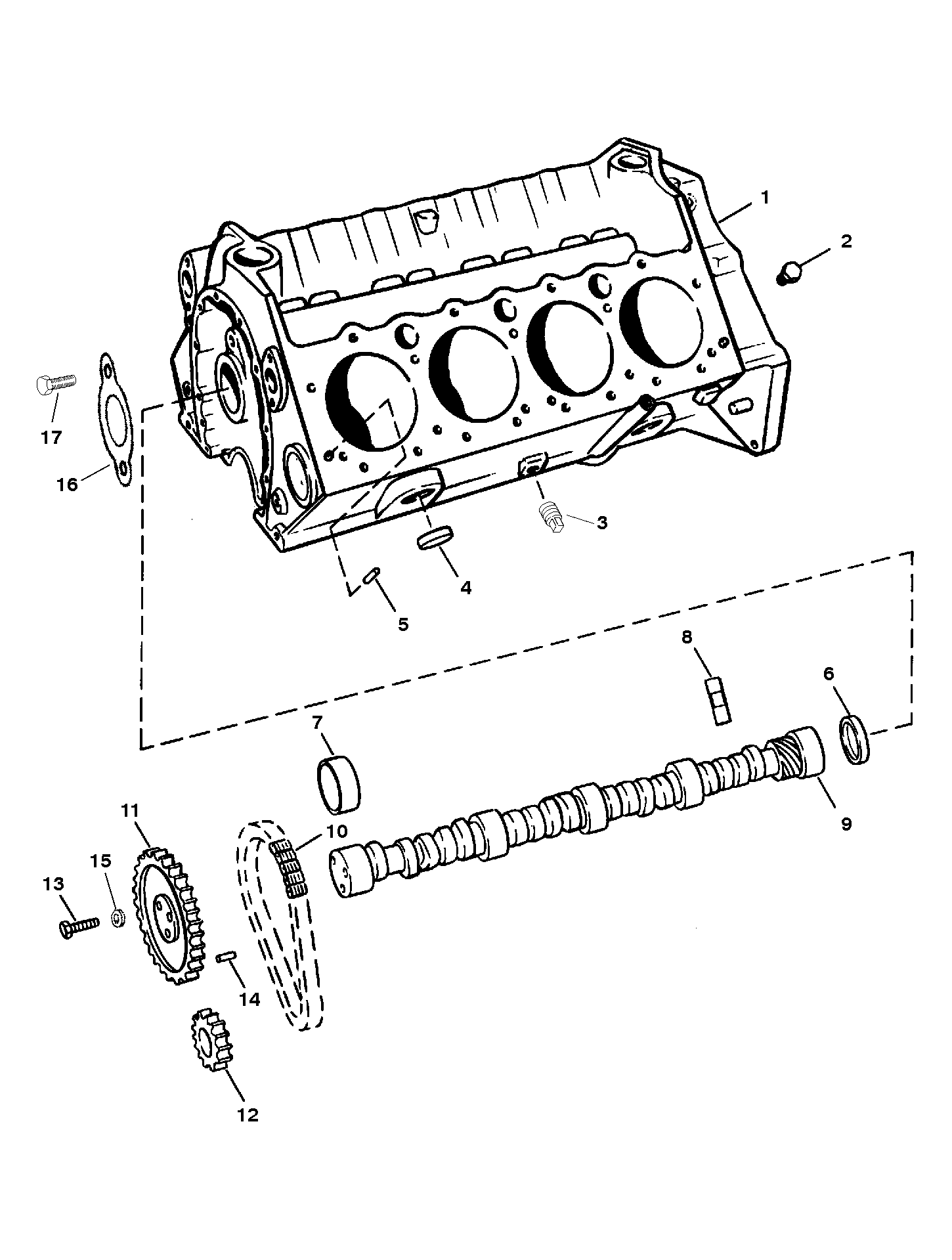

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-806964A3) (2.875 In. Dia. End Cap)
- Starter Assembly (50-808011A1)
- Starter Assembly (50-99418A2) (3.500 In. Dia. End Cap)
- Thermostat Housing
- Wiring Harness And Electrical Components
| Note 1: BRAVO MODELS WITH DRIVELINE ALSO REQUIRE FLYWHEEL PART NUMBER [230-811563] AND PILOT BUSHING PART NUMBER [23-49126]. | |||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 805541A1 | LONG BLOCK MARINE ENGINE | 1 | This Part is No Longer Available [ SEE NOTE #1] |
|||||
| 2 | 22-32561 | PLUG-Pipe (.250) | 4 | 22-48340 | |||||
| 2 | 22-48358T | PLUG-Pipe (.375) | 2 | 22-48358 | . | ||||
| 3 | 22-36382 | 700-21887 | PLUG-Drain (.250-18)-Hex Hd-Brass | 2 | |||||
| 4 | 22-69300 | PLUG-Expansion (1.750 Dia.) | 8 | ||||||
| 5 | 17-52190 | PIN-Dowel | 4 | ||||||
| 6 | 19-94140 | PLUG-Expansion | 1 | ||||||
| 7 | 23-85684 | BEARING UNIT (SET) | 1 | ||||||
| 8 | 93722T | TAPPET | 16 | 93722 | |||||
| 9 | 451-7892 | CAMSHAFT | 1 | ||||||
| 10 | 845796T | CHAIN-Timing | 1 | 811580 | |||||
| 11 | 8115781 | SPROCKET-Camshaft | 1 | ||||||
| 12 | 43-845794T | SPROCKET-Crankshaft | 1 | 43-811579 | |||||
| 13 | 10-845942 | SCREW (.312-18 x .750) | 3 | 10-35339 | |||||
| 14 | 17-843378 | PIN-Dowel (.250 Dia.) | 1 | 17-35312 | |||||
| 15 | 12-848136 | WASHER | 3 | ||||||
| 16 | 23-491241 | PLATE-Gear Thrust | 1 | This Part is No Longer Available | |||||
| 17 | 10-848155 | SCREW (.250-20 x .500) | 2 | This Part is No Longer Available | |||||
| NS | 92-809825 | SEALER-Red-RTV (Where Applicable) | AR | 3,5 | |||||
| NS | 34227Q02 | PERFECT SEAL (Where Applicable) | AR | 92-342271 | 3,5 | ||||
| - | 27-827014A98 | GASKET SET-Engine Overhaul | 1 | 27-827014A96 | 1 | ||||
