525 SC (Gen 5) GM 454 V-8 1996 - Serial 0F615814 Thru 0F745215 - Starter Assembly (50-806964A3) (2.875 In. Dia. End Cap)

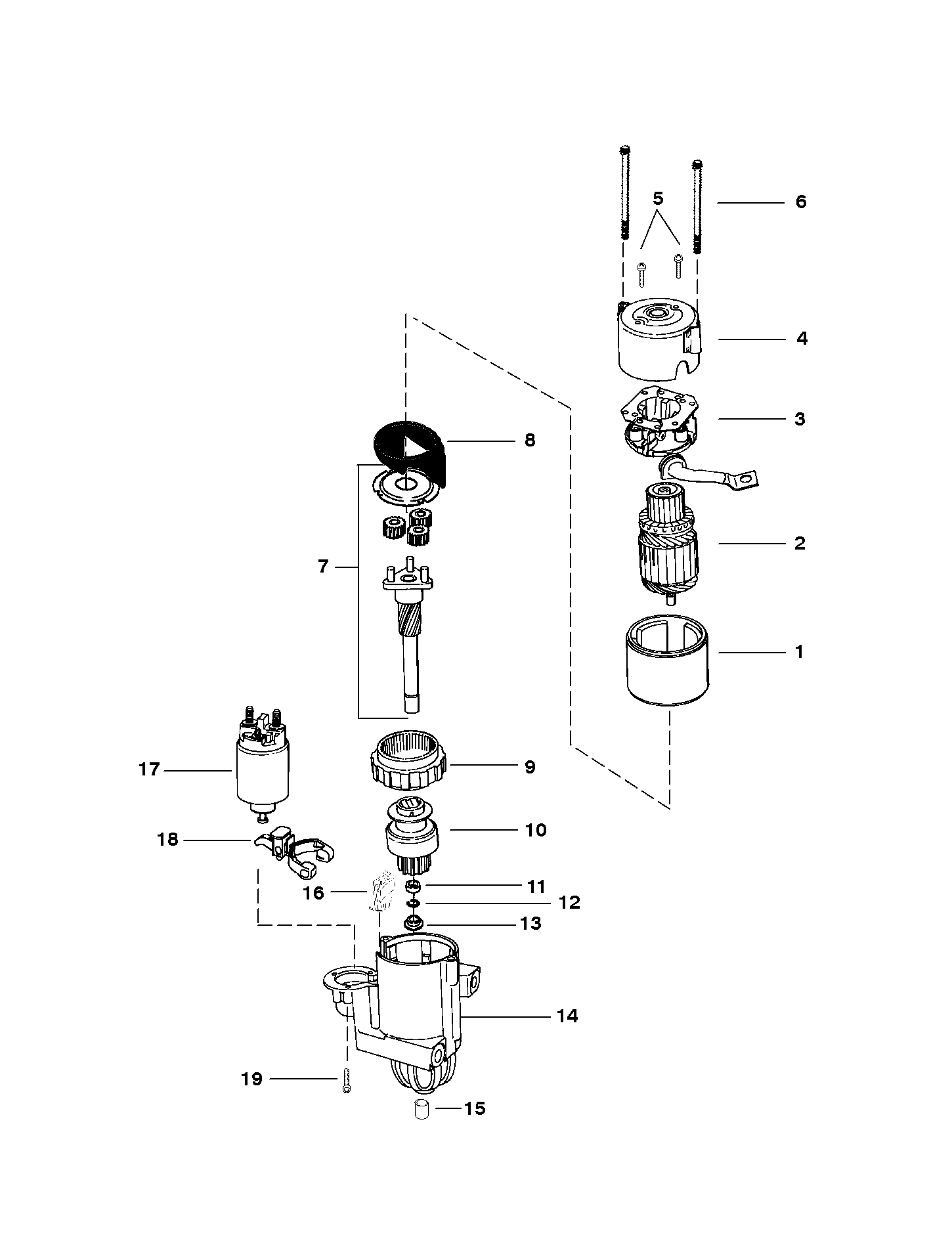

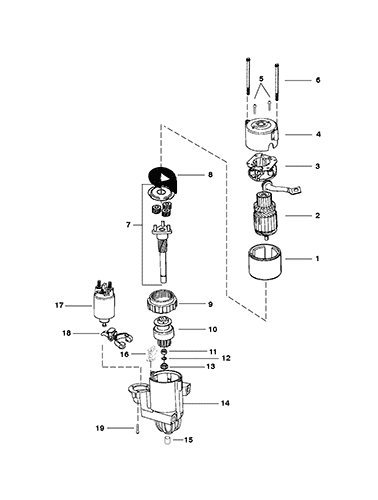

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-806964A3) (2.875 In. Dia. End Cap)
- Starter Assembly (50-808011A1)
- Starter Assembly (50-99418A2) (3.500 In. Dia. End Cap)
- Thermostat Housing
- Wiring Harness And Electrical Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 50-863007A1 | STARTER ASSEMBLY | 1 | 50-806964A3 | (BRAVO PLUG-IN MODELS) | ||||
| 2 | NSS | NOT SOLD SEPERATE, ARMATURE | 1 | This Part is not sold separately 6 | |||||
| 3 | NSS | BRUSH HOLDER AND SPRING | 1 | This Part is not sold separately 6 | |||||
| 4 | NSS | NOT SOLD SEPERATE, FRAME | 1 | This Part is not sold separately 6 | |||||
| 5 | NSS | NOT SOLD SEPERATE, SCREW | 2 | This Part is not sold separately 6 | |||||
| 6 | NSS | NOT SOLD SEPERATE, BOLT-Thru | 2 | This Part is not sold separately 6 | |||||
| 7 | NSS | NOT SOLD SEPERATE, SHAFT AND GEAR | 1 | This Part is not sold separately 6 | |||||
| 8 | NSS | NOT SOLD SEPERATE, GASKET | 1 | This Part is not sold separately 6 | |||||
| 9 | NSS | NOT SOLD SEPERATE, GEAR | 1 | This Part is not sold separately 6 | |||||
| 10 | NSS | NOT SOLD SEPERATE, DRIVE | 1 | This Part is not sold separately 6 | |||||
| 11 | 33291 | COLLAR | 1 | ||||||
| 12 | 53-33290 | RING-Retaining | 1 | ||||||
| 13 | NSS | NOT SOLD SEPERATE, COLLAR-Thrust | 1 | This Part is not sold separately 6 | |||||
| 14 | 809459 | HOUSING-Drive | 1 | This Part is No Longer Available | |||||
| 15 | 23-814476 | BEARING | 1 | This Part is No Longer Available | |||||
| 16 | NSS | NOT SOLD SEPERATE, GROMMET | 1 | This Part is not sold separately 6 | |||||
| 17 | 809463A1 | 676-9-15125 | 700-72450 | SOLENOID | 1 | ||||
| 18 | NSS | NOT SOLD SEPERATE, LEVER | 1 | This Part is not sold separately 6 | |||||
| 19 | NSS | NOT SOLD SEPERATE, SCREW | 3 | This Part is not sold separately 6 |
