525 SC (Gen 5) GM 454 V-8 1996 - Serial 0F615814 Thru 0F745215 - Starter Assembly (50-17251A3)

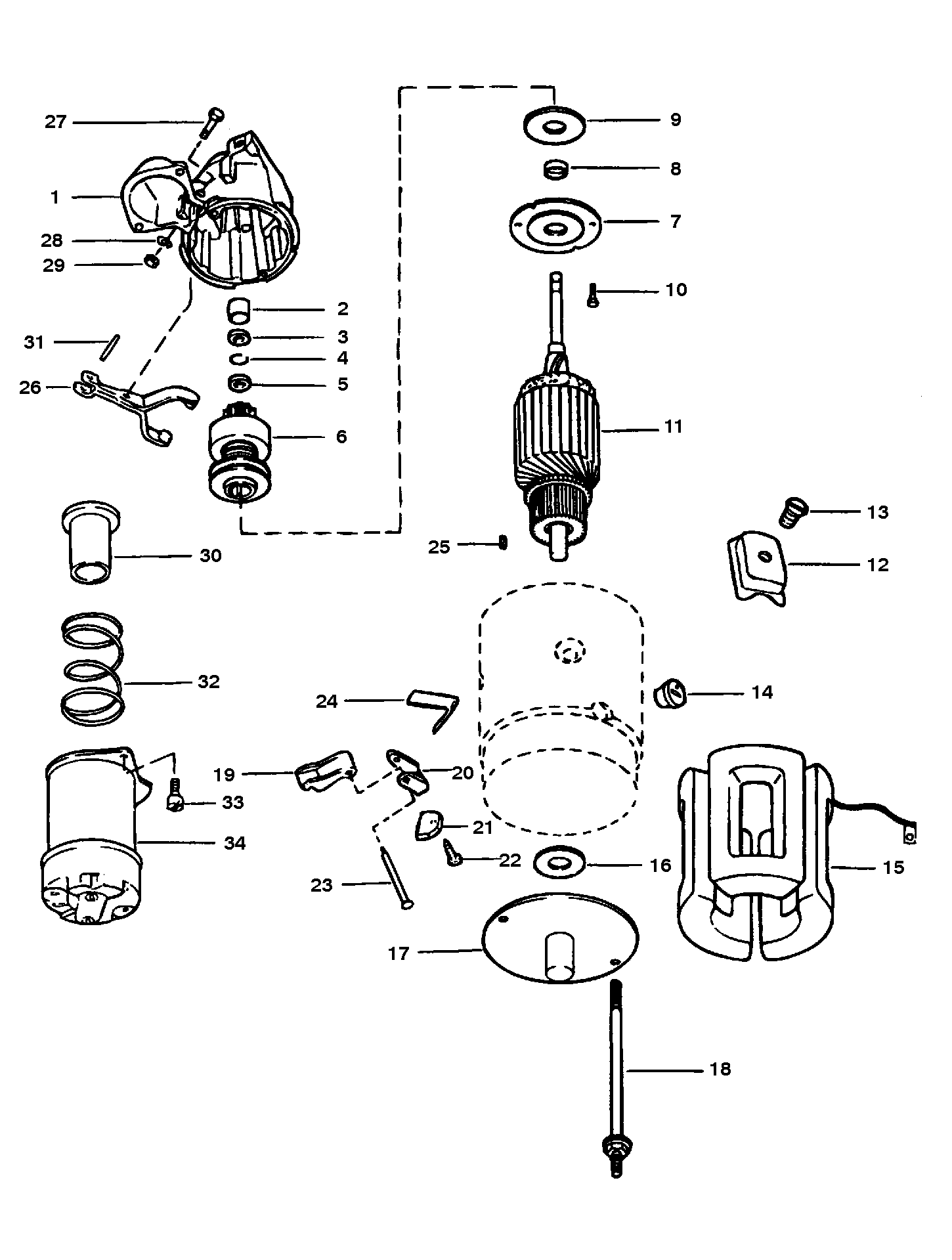

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Audio Warning System
- Carburetor And Linkage
- Crankshaft, Pistons And Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Exhaust Manifold-Elbow
- Exhaust Plate
- Flywheel Housing (Bravo Driveshaft Models)
- Flywheel Housing (Bravo Plug-In Models)
- Fuel Pump And Fuel Filter
- Intake Manifold And Supercharger
- Mount Plates
- Oil Cooler, Oil Filter And Adaptor
- Oil Pan And Oil Pump
- Oil Reservoir Bottle
- Power Steering Components
- Sea Water Pump Assembly
- Shift Bracket
- Starter And Alternator
- Starter Assembly (50-17251A3)
- Starter Assembly (50-806964A3) (2.875 In. Dia. End Cap)
- Starter Assembly (50-808011A1)
- Starter Assembly (50-99418A2) (3.500 In. Dia. End Cap)
- Thermostat Housing
- Wiring Harness And Electrical Components
| Note 1: PARTS LISTED | NSS | (NOT SOLD SEPARATELY) SHOULD BE ORDERED FROM A LOCAL SUPPLIER USING THE APPROPRIATE MANUFACTURER'S PART NUMBER.|||||||||
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes | |
| - | 50-808011A05 | STARTER ASSEMBLY | 1 | 50-17251A3 | (TRANSMISSION & DRIVELINE MODELS) 1 | |||||
| 1 | 79206 | HOUSING ASSEMBLY | 1 | This Part is No Longer Available | ||||||
| 2 | 23-33369 | BUSHING-Drive End Housing | 1 | This Part is No Longer Available | ||||||
| 3 | 23-809457 | COLLAR-Thrust | 1 | 814474 | This Part is No Longer Available | |||||
| 4 | 53-33290 | RING-Retaining-Pinion Stop Collar | 1 | |||||||
| 5 | 33291 | COLLAR-Pinion Stop | 1 | |||||||
| 6 | 68608 | DRIVE ASSEMBLY-Clutch | 1 | This Part is No Longer Available | ||||||
| 7 | 79396 | PLATE-Bearing | 1 | This Part is No Longer Available | ||||||
| 8 | 23-71694 | BUSHING-Bearing Plate | 1 | This Part is No Longer Available | ||||||
| 9 | 12-68614 | WASHER-Bearing Plate | 1 | This Part is No Longer Available | ||||||
| 10 | 10-79209 | SCREW-Bearing | 2 | This Part is No Longer Available | ||||||
| 11 | 68606 | ARMATURE | 1 | This Part is No Longer Available | ||||||
| 12 | NSS | NOT SOLD SEPERATE, SHOE-Pole-Field Coil | 4 | This Part is not sold separately (Delco Remy #810601) 6 | ||||||
| 13 | NSS | NOT SOLD SEPERATE, SCREW | 4 | This Part is not sold separately (Delco Remy #1968396) 6 | ||||||
| 14 | NSS | NOT SOLD SEPERATE, GROMMET-Field Coil | 1 | This Part is not sold separately (Delco Remy #1846097) 6 | ||||||
| 15 | NSS | NOT SOLD SEPERATE, FIELD COIL ASSY | 1 | This Part is not sold separately (Delco Remy #1970467) 6 | ||||||
| 16 | NSS | NOT SOLD SEPERATE, WASHER-Leather | 1 | This Part is not sold separately (Delco Remy #1985617) 6 | ||||||
| 17 | 79211 | FRAME-Commutator End | 1 | This Part is No Longer Available | ||||||
| 18 | NSS | NOT SOLD SEPERATE, BOLT-Thru | 1 | This Part is not sold separately (Delco Remy #1939970) 6 | ||||||
| 19 | 33284 | HOLDER-Insulated-Field Frame Brush | 2 | This Part is No Longer Available | ||||||
| 20 | 33283 | HOLDER-Field Frame Brush Ground | 2 | This Part is No Longer Available | ||||||
| 21 | 33270 | BRUSH-Field Frame | 4 | |||||||
| 22 | NSS | NOT SOLD SEPERATE, SCREW-Brush Lead | 2 | This Part is not sold separately (Delco Remy #1967747) 6 | ||||||
| 22 | NSS | NOT SOLD SEPERATE, SCREW-Brush Lead | 2 | This Part is not sold separately (Delco Remy #443527) 6 | ||||||
| 23 | 33294 | SUPPORT | 2 | This Part is No Longer Available | ||||||
| 24 | 24-33285 | SPRING-Field Frame Brush | 4 | This Part is No Longer Available | ||||||
| 25 | NSS | NOT SOLD SEPERATE, PIN-Dowel | 1 | This Part is not sold separately (Delco Remy #1985696) 6 | ||||||
| 26 | 33297 | LEVER-Shift | 1 | This Part is No Longer Available | ||||||
| 27 | NSS | NOT SOLD SEPERATE, STUD-Shift Lever | 1 | This Part is not sold separately (Delco Remy #1814529) 6 | ||||||
| 28 | 12-68615 | WASHER-Shift Lever Stud | 1 | This Part is No Longer Available | ||||||
| 29 | 11-26484 | NUT (.312-18)-Shift Lever Stud | 1 | |||||||
| 30 | 33317 | PLUNGER | 1 | This Part is No Longer Available | ||||||
| 31 | 17-79207 | PIN-Plunger to Shift Lever | 1 | This Part is No Longer Available | ||||||
| 32 | 24-46889 | SPRING-Plunger Return | 1 | This Part is No Longer Available | ||||||
| 33 | NSS | NOT SOLD SEPERATE, SCREW-Solenoid | 2 | This Part is not sold separately (Delco Remy #132255) 6 | ||||||
| 34 | 89-18080 | 676-9-15102 | 700-72460 | SOLENOID | 1 | |||||
