575 SCi - Serial 0L306696 Thru 0L307026 - Circulating Water Pump And Front Cover

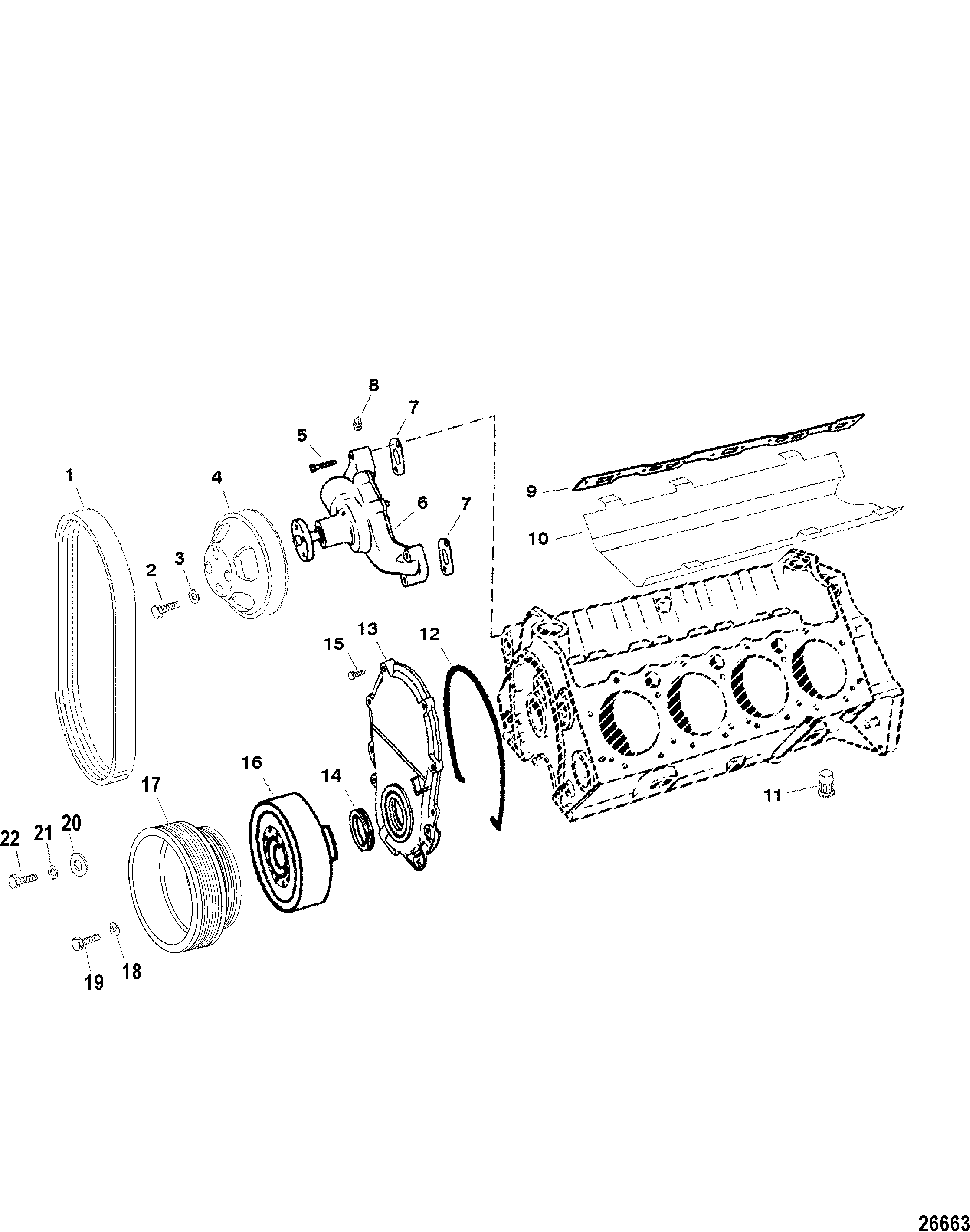

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Lubricant Monitor
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header (Design I) 90 Deg, 1 Inch Water Outlet
- Exhaust Header (Design II) Straight-1.125 Inch Water Outlet
- Flywheel Housing(Bravo Plug In)
- Flywheel Housing(Driveline)
- Fuel Pump And Fuel Cooler
- Gasket-Seal Set - Engine Overhaul(27-842182A1)
- Harness Assembly (0M052847 And Below)
- Harness Assembly (0M052848 And Up)
- Intake Manifold And Supercharger
- Intake Throttle Body Assembly
- Intake Throttle Body Components
- Mount Plates (Engine)
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Power-Assisted Steering Components
- Pump-Motor (Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mt Reservoir) (Design II - 14336A25)
- Pump-Motor (Top Mt Reservoir) (Design III - 14336A31)
- Sea Water Pump Assembly
- Sender And Sensors
- Shift Bracket
- Starter And Alternator Mounting
- Starter Assembly (50-8M8021116)
- Thermostat Housing
- Trim Pump Assembly (Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 57-865615Q05 | BELT, Serpentine | 1 | 57-865615005 | |||||
| 2 | 10-849377 | SCREW, (.312-24 x .750) Stainless Steel | 4 | ||||||
| 3 | 12-70132 | WASHER, (.323 x .563 x .063) Stainless Steel | 4 | ||||||
| 4 | 849047T | PULLEY, Blue | 1 | ||||||
| 5 | 10-805611 | SCREW, (.375-16 x 1.750) | 4 | 10-811574 | 5 | ||||
| 6 | 811573A04 | PUMP ASSEMBLY, Circulating Water | 1 | 811573A03 | 5 | ||||
| 7 | 27-49110 | GASKET, Circulating Water Pump Mount | 2 | 2 | |||||
| 8 | 22-845174 | PLUG (.500) | 1 | 22-61162 | 5 | ||||
| 9 | 27-8181881 | GASKET | 2 | 2,5 | |||||
| 10 | 845756T | SHIELD, Oil Intake, Heat | 1 | 816073 | 5 | ||||
| 11 | VALVE, Relief, Oil By Pass (30 PSI) | 1 | 5 | ||||||
| 12 | 27-850456 | GASKET, Front Cover Mount | 1 | 2,5 | |||||
| 13 | 845610T | COVER ASSEMBLY, Front | 1 | 850459 | 5 | ||||
| 14 | 26-8219471 | SEAL, Oil | 1 | 2 | |||||
| 15 | 10-850455 | SCREW, (1/4-20 x 0.5) | 10 | 5 | |||||
| 16 | 845625T2 | BALANCER | 1 | 850460 | 5 | ||||
| 17 | 849045T | PULLEY, Blue | 1 | 5 | |||||
| 18 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 3 | 5 | |||||
| 19 | 10-86517 | SCREW, (.375-16 x 1.250) | 3 | 5 | |||||
| 20 | 12-8413901 | WASHER, (.520 x 2.063 x .280) | 1 | ||||||
| 21 | 12-822350 | WASHER | 1 | 5 | |||||
| 22 | 10-8M2011240 | SCREW, (.500-20 x 2.500) | 1 | 10-48490 | 5 | ||||
| - | 27-842182A1 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
