575 SCi - Serial 0L306696 Thru 0L307026 - Cylinder Head And Rocker Cover

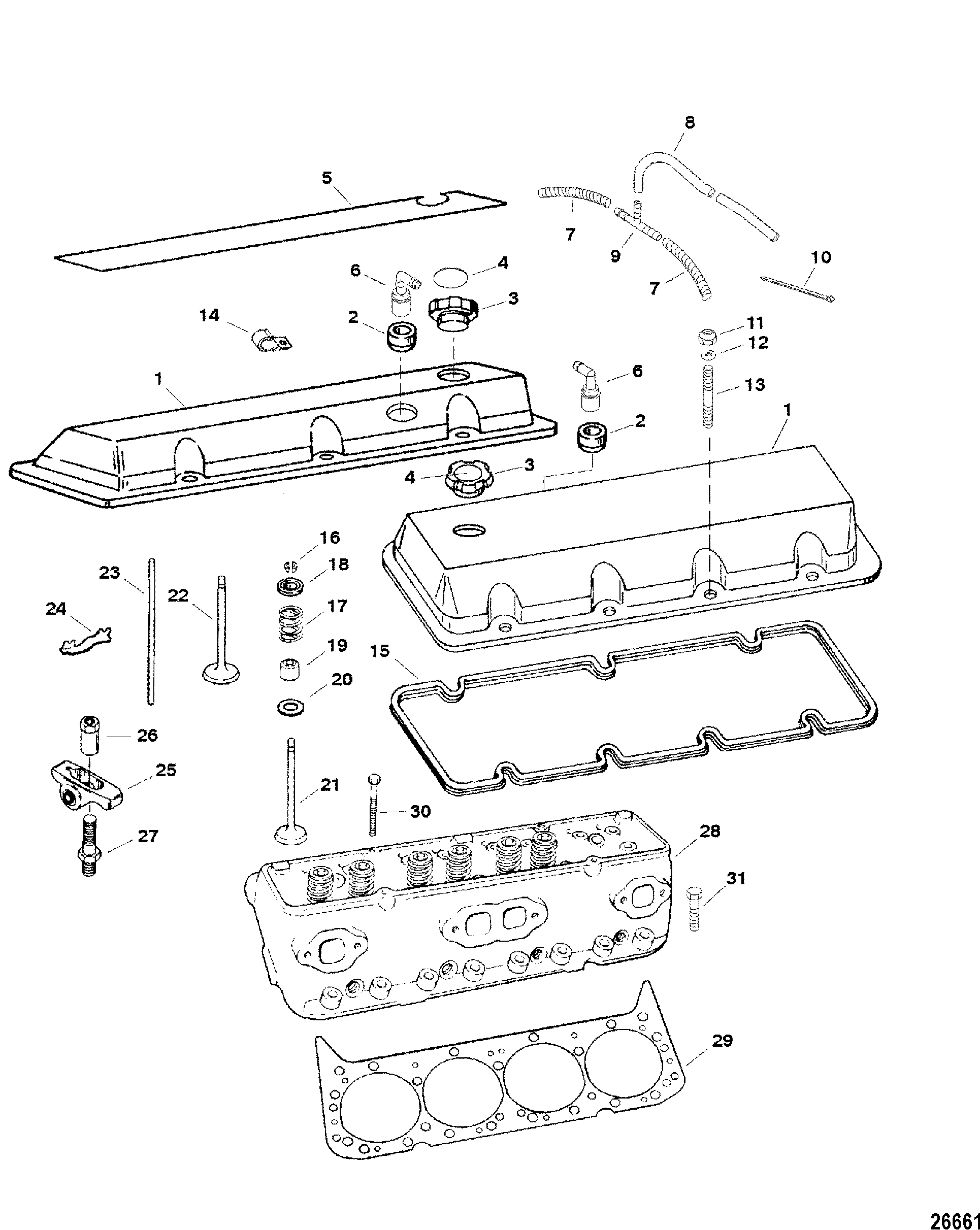

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Lubricant Monitor
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header (Design I) 90 Deg, 1 Inch Water Outlet
- Exhaust Header (Design II) Straight-1.125 Inch Water Outlet
- Flywheel Housing(Bravo Plug In)
- Flywheel Housing(Driveline)
- Fuel Pump And Fuel Cooler
- Gasket-Seal Set - Engine Overhaul(27-842182A1)
- Harness Assembly (0M052847 And Below)
- Harness Assembly (0M052848 And Up)
- Intake Manifold And Supercharger
- Intake Throttle Body Assembly
- Intake Throttle Body Components
- Mount Plates (Engine)
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Power-Assisted Steering Components
- Pump-Motor (Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mt Reservoir) (Design II - 14336A25)
- Pump-Motor (Top Mt Reservoir) (Design III - 14336A31)
- Sea Water Pump Assembly
- Sender And Sensors
- Shift Bracket
- Starter And Alternator Mounting
- Starter Assembly (50-8M8021116)
- Thermostat Housing
- Trim Pump Assembly (Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 849702A11 | COVER ASSEMBLY, Rocker Valve - Blue | 2 | 849702T11 | 5 | ||||
| 2 | 25-811553 | GROMMET | 2 | 2,5 | |||||
| 3 | 845753T1 | CAP, Oil Filler | 2 | 36-802566T | 5 | ||||
| 4 | 37-849950 | DECAL, Oil Fill Cap | 2 | 5 | |||||
| 5 | 38-841247 | NAMEPLATE, Rocker Cover | 2 | ||||||
| 6 | 97850T | ELBOW, 90 Degree, Breather | 2 | 97850 | 5 | ||||
| 7 | 32-8M0062669 | TUBING, (24.00 Inches Bulk), Breather | 2 | 32-807498240 | NOTE: Cut 1 Pc 8.00 Inches - Cut 1 Pc 16.75 Inches | ||||
| 8 | 32-807786 | HOSE, Molded | 1 | ||||||
| 9 | 22-849999 | FITTING, Tee | 1 | ||||||
| 10 | 56762 | TIE STRAP, (4.00 Inches) | AR | ||||||
| 11 | 11-35888 | 676-9-72001 | 700-21180 | NUT, (.250-28) Stainless Steel | 14 | 5 | |||
| 12 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 14 | 5 | |||||
| 13 | 16-56766 | STUD, (.250-20/.250-28 x 1.380) | 14 | 5 | |||||
| 14 | 54-42553 | J CLIP, Starboard - Top Rear | 1 | 5 | |||||
| 15 | 27-811588 | GASKET, Rocker Cover | 2 | 2,5 | |||||
| 16 | 96028 | LOCK, Valve Stem | 32 | 5 | |||||
| 17 | 24-13455T | VAVLE SPRING ASSEMBLY | 16 | 5 | |||||
| 18 | 843376 | RETAINER | 16 | 98598 | SN# 0L601000 THRU 0M050212 5 | ||||
| 18 | 843376 | RETAINER | 16 | SN# 0M053213 THRU 0M053292 5 | |||||
| 19 | 26-842755 | SEAL, Valve | 16 | 2,5 | |||||
| 20 | 15-845669 | SHIM, Valve Spring (.015) | AR | 15-54531 | 5 | ||||
| 20 | 15-77624 | SHIM, Valve Spring (.030) | AR | 5 | |||||
| 21 | 843080 | VALVE, Exhaust | 8 | 13024 | 5 | ||||
| 22 | 821024T | VALVE, Intake, Standard (2.250 Diameter) | 8 | 5 | |||||
| 23 | 848263 | PUSH ROD | 8 | Intake (8.280) 5 | |||||
| 23 | 848266 | PUSH ROD | 8 | Exhaust (9.252) 5 | |||||
| 24 | 845707 | GUIDE, Pushrod | 8 | 811586 | 5 | ||||
| 25 | 845618T | ROCKER ARM ASSEMBLY | 16 | 5 | |||||
| 26 | 11-848610 | NUT, Rocker Arm Valve | 16 | 5 | |||||
| 27 | 16-821836 | STUD, Rocker Arm Valve | 16 | 5 | |||||
| 28 | 938-845704T5 | CYLINDER HEAD ASSEMBLY | 2 | 938-827495T10 | 5 | ||||
| 29 | 27-811546A04 | GASKET, Cylinder Head | 2 | 27-8115462 | 2,5 | ||||
| 30 | 10-8M0000482 | BOLT, (4.125 Inch), Cylinder Head | 24 | 10-49105 | 5 | ||||
| 31 | 10-8M0000463 | BOLT (2.00) Cylinder Head | 8 | 10-491061 | 5 | ||||
| - | 27-842182A1 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
