575 SCi - Serial 0L306696 Thru 0L307026 - Thermostat Housing

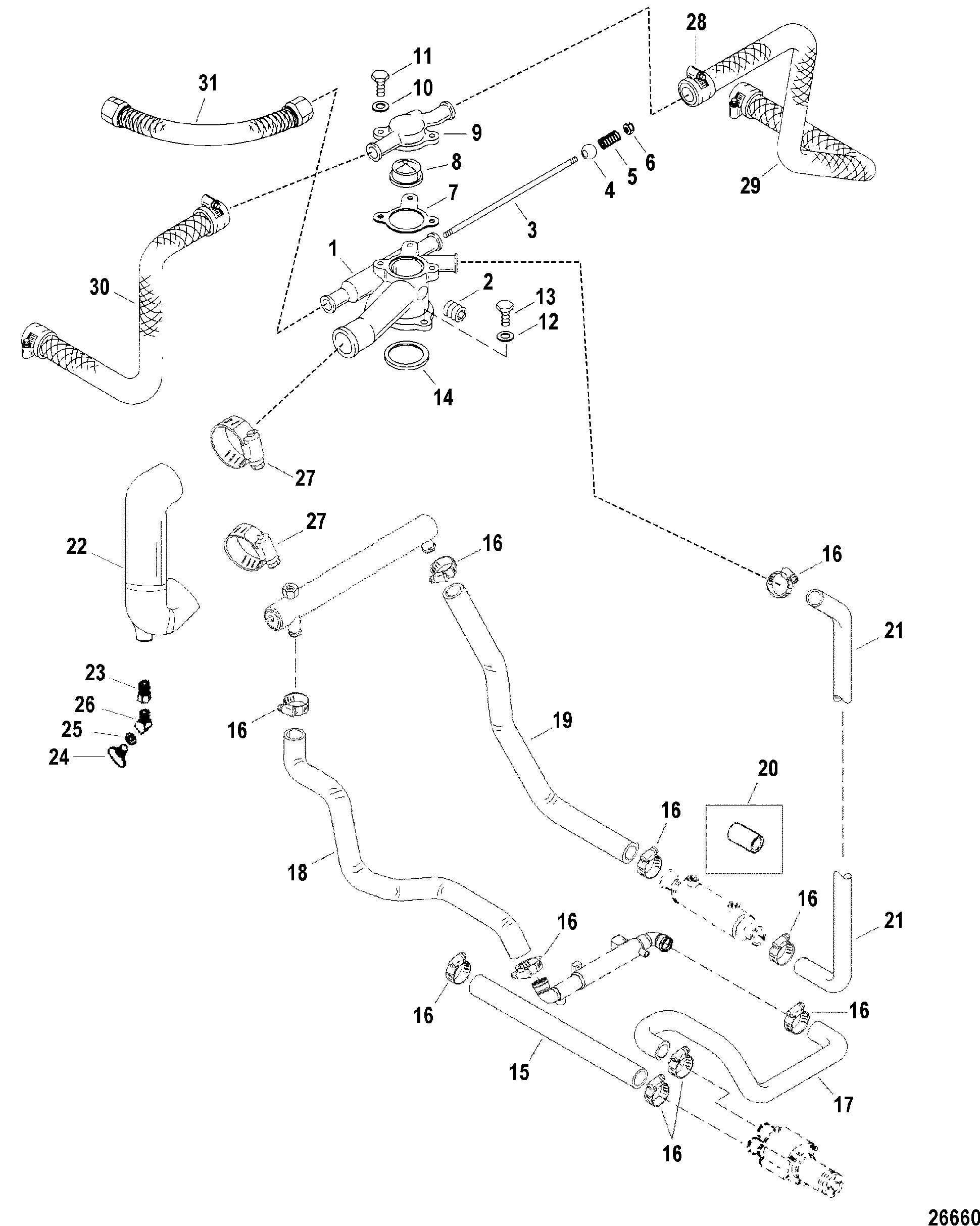

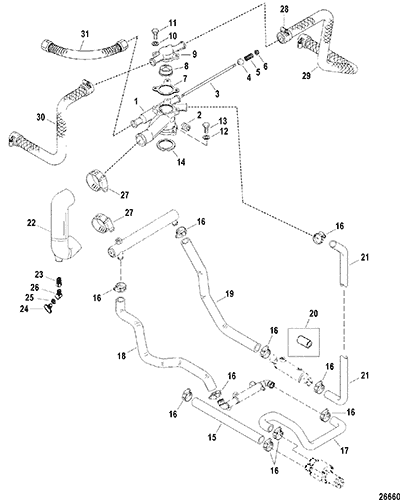

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Lubricant Monitor
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header (Design I) 90 Deg, 1 Inch Water Outlet
- Exhaust Header (Design II) Straight-1.125 Inch Water Outlet
- Flywheel Housing(Bravo Plug In)
- Flywheel Housing(Driveline)
- Fuel Pump And Fuel Cooler
- Gasket-Seal Set - Engine Overhaul(27-842182A1)
- Harness Assembly (0M052847 And Below)
- Harness Assembly (0M052848 And Up)
- Intake Manifold And Supercharger
- Intake Throttle Body Assembly
- Intake Throttle Body Components
- Mount Plates (Engine)
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Power-Assisted Steering Components
- Pump-Motor (Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mt Reservoir) (Design II - 14336A25)
- Pump-Motor (Top Mt Reservoir) (Design III - 14336A31)
- Sea Water Pump Assembly
- Sender And Sensors
- Shift Bracket
- Starter And Alternator Mounting
- Starter Assembly (50-8M8021116)
- Thermostat Housing
- Trim Pump Assembly (Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 879330T39 | HOUSING, Thermostat | 1 | 8477042 | |||||
| 2 | 22-36373 | PLUG, (.375-18) Hex - Steel | 1 | ||||||
| 3 | 6-847742 | STUD, (#10-32 x 11.810) | 1 | ||||||
| 4 | 30-98475 | BALL, Nylon | 2 | ||||||
| 5 | 24-75533 | SPRING | 2 | ||||||
| 6 | 11-29488 | 700-21163 | NUT, (#10-32) | 2 | No longer made, limited availability | ||||
| 7 | 27-818364 | GASKET, Thermostat | 1 | 2 | |||||
| 8 | 591371 | THERMOSTAT | 1 | ||||||
| 9 | 849875T01 | COVER, Thermostat Housing - Black | 1 | 8498751 | |||||
| 10 | 12-37828 | WASHER, (.390 x .625 x .062) Stainless Steel | 3 | ||||||
| 11 | 10-30206 | SCREW, (.375-16 x 1.00) Stainless Steel | 3 | ||||||
| 12 | 12-37828 | WASHER, (.390 x .625 x .062) Stainless Steel | 3 | ||||||
| 13 | 10-65210 | SCREW, (.375-16 x 1.00) | 3 | ||||||
| 14 | 25-20826 | 700-82280 | 525-25-20826 | O-RING, (2.230 x .139) | 1 | NOTE: Thermostat Housing To Intake Manifold 2 | |||
| 15 | 32-8M0062665 | HOSE, (48.00 Inches Bulk), Cut As Required | 1 | 32-5346170 | Drive To Sea Pump - Six Drive | ||||
| 15 | 32-1743565 | HOSE, (38.00 Inches Bulk), Cut As Required | 1 | Drive To Sea Pump - Bravo Models | |||||
| 15 | 32-13556A1 | HOSE KIT, (10.00 Feet), Cut As Required | 1 | Drive To Sea Pump - Driveline Models | |||||
| 16 | 54-180766 | CLAMP, Worm Gear | 10 | ||||||
| 17 | 32-849935 | HOSE, Molded, Sea Pump To Fuel Cooler | 1 | ||||||
| 18 | 32-844881 | HOSE, Molded, Fuel Cooler To Oil Cooler | 1 | ||||||
| 19 | 32-848956 | HOSE, Molded, Oil Cooler To Tube | 1 | ||||||
| 20 | 22-13177 | TUBE, Hose Attachment | 1 | Non Power Steering | |||||
| 21 | 32-844475 | HOSE, Molded, Tube To Thermostat Housing | 1 | ||||||
| 22 | 32-842412A02 | HOSE ASSEMBLY, Thermostat To Circulating Pump | 1 | 32-842412A1 | |||||
| 23 | 22-860088 | BUSHING | 1 | ||||||
| 24 | 22-806608A02 | PLUG KIT, (.500-13) Royal Blue | 1 | 22-806608A1 | |||||
| 25 | 25-32509 | O-RING, (.489 x .070) | 1 | ||||||
| 26 | 22-37682 | FITTING, Elbow (45 Degree) | 1 | ||||||
| 27 | 54-180768 | CLAMP, Worm Gear | 2 | ||||||
| 28 | 54-180764 | CLAMP, Worm Gear | 8 | ||||||
| 29 | 32-849942 | HOSE, Molded, Port Thermostat Cover To Exhaust Manifold | 1 | ||||||
| 30 | 32-849943 | HOSE, Molded, Starboard Thermostat Cover To Exhaust Manifold | 1 | ||||||
| 31 | 32-849940 | HOSE, Molded, Thermostat Tee To Exhaust Elbow | 1 | Port | |||||
| 31 | 32-849941 | HOSE, Molded, Thermostat Tee To Exhaust Elbow | 1 | Starboard | |||||
| - | 27-842182A1 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
