575 SCi - Serial 0L306696 Thru 0L307026 - Intake Throttle Body Components

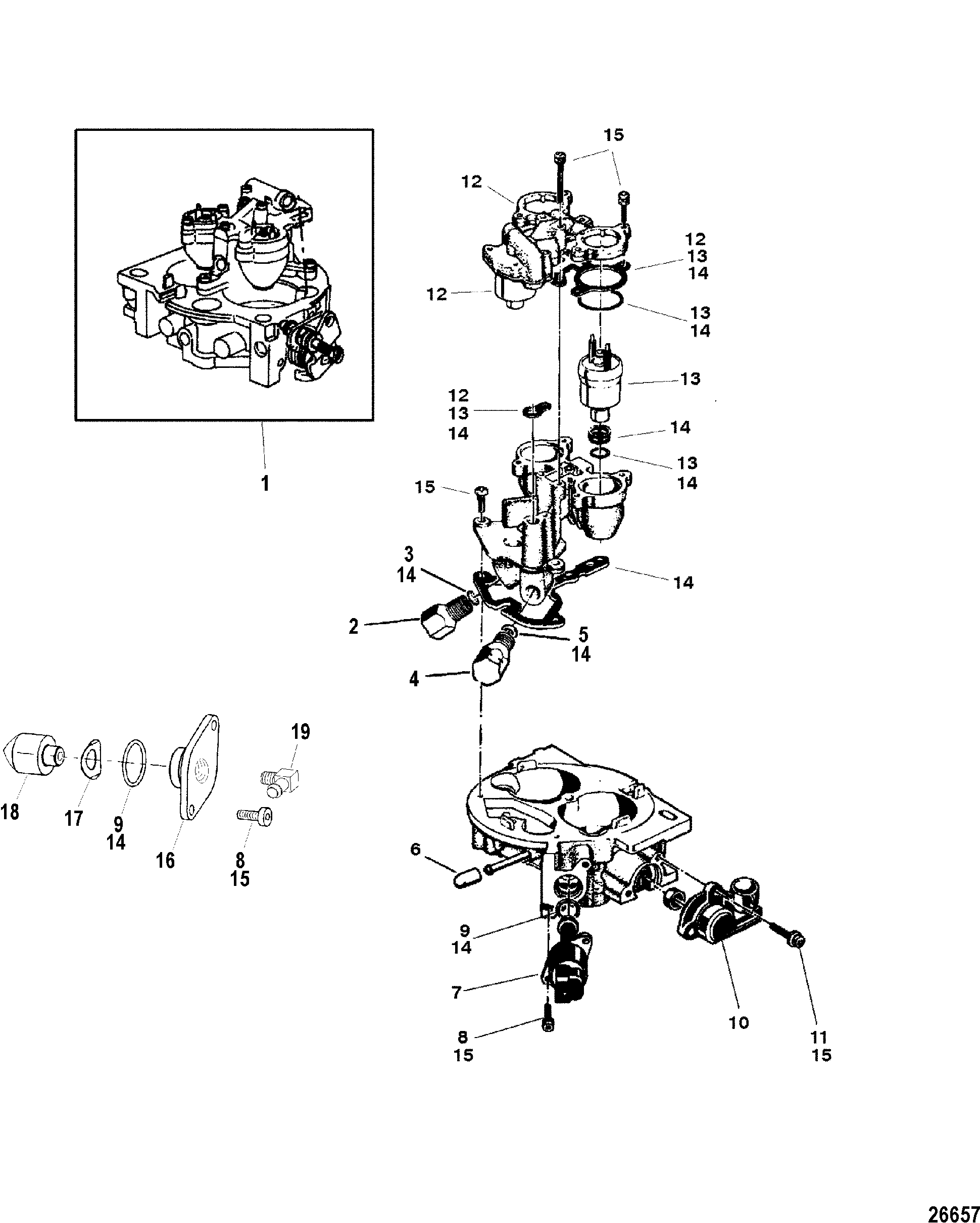

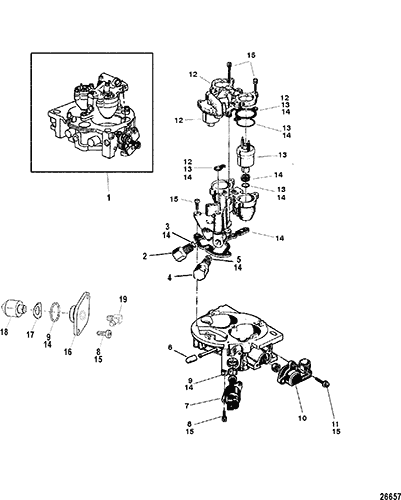

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 807941T13         THROTTLE BODY ASSEMBLY, Front - Blue 1 807941T2 This Part is No Longer Available SN# 0M052947 & Below
1 807941T13         THROTTLE BODY ASSEMBLY, Front - Blue 1   This Part is No Longer Available SN# 0M052948 & Up
1 807941T11         THROTTLE BODY ASSEMBLY, Rear - Blue 1 807941T3 This Part is No Longer Available SN# 0M052947 & Below
1 807941T11         THROTTLE BODY ASSEMBLY, Rear - Blue 1   This Part is No Longer Available SN# 0M052948 & Up
2 22-806653A1         FITTING ASSEMBLY, Inlet 1

3 26-806655         SEAL 1

4 22-808024A1         PLUG ASSEMBLY 1

5 26-806706         SEAL 1

6 806899         PLUG 3
NOTE: Qty 2 - Front / Qty 1 - Rear
7 805224A1         MOTOR ASSEMBLY, IAC 1
Front Only SN# 0M052947 & Below
7 805224A03         MOTOR KIT, (IAC) 2
Front And Rear SN# 0M052948 & Up
8 10-805400         SCREW, (#8-32 x .500) Stainless Steel 2

9 25-808547         O-RING 1

10 805226A1         SENSOR ASSEMBLY, TPS, Throttle Postion 1

11 10-805400         SCREW, (#8-32 x .500) Stainless Steel 2

12 852955         REGULATOR KIT, Fuel Pressure 1   This Part is No Longer Available No longer available
13 853998A1         INJECTOR KIT, Fuel 1 853998T This Part is No Longer Available
14 27-852957         GASKET KIT, Overhaul 1   This Part is No Longer Available
15 10-852958         SCREW KIT 1

16 8457711         COVER 1
Rear Only SN# 0M052947 & Below
17 13-31030         WAVE WASHER 1
Rear Only SN# 0M052947 & Below
18 19-8499201         PLUG, (IAC) 1
Rear Only SN# 0M052947 & Below
19 22-196881         FITTING, (90 Degree) 1
Rear Only SN# 0M052947 & Below
