575 SCi - Serial 0L306696 Thru 0L307026 - Crankshaft - Pistons - Connecting Rods

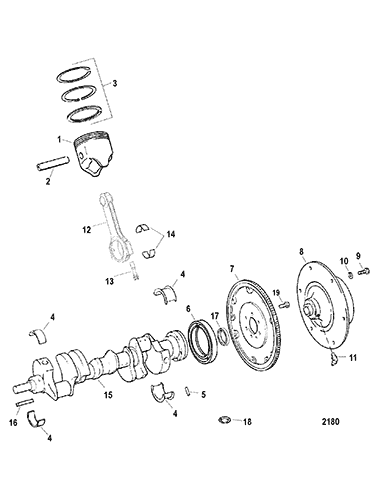

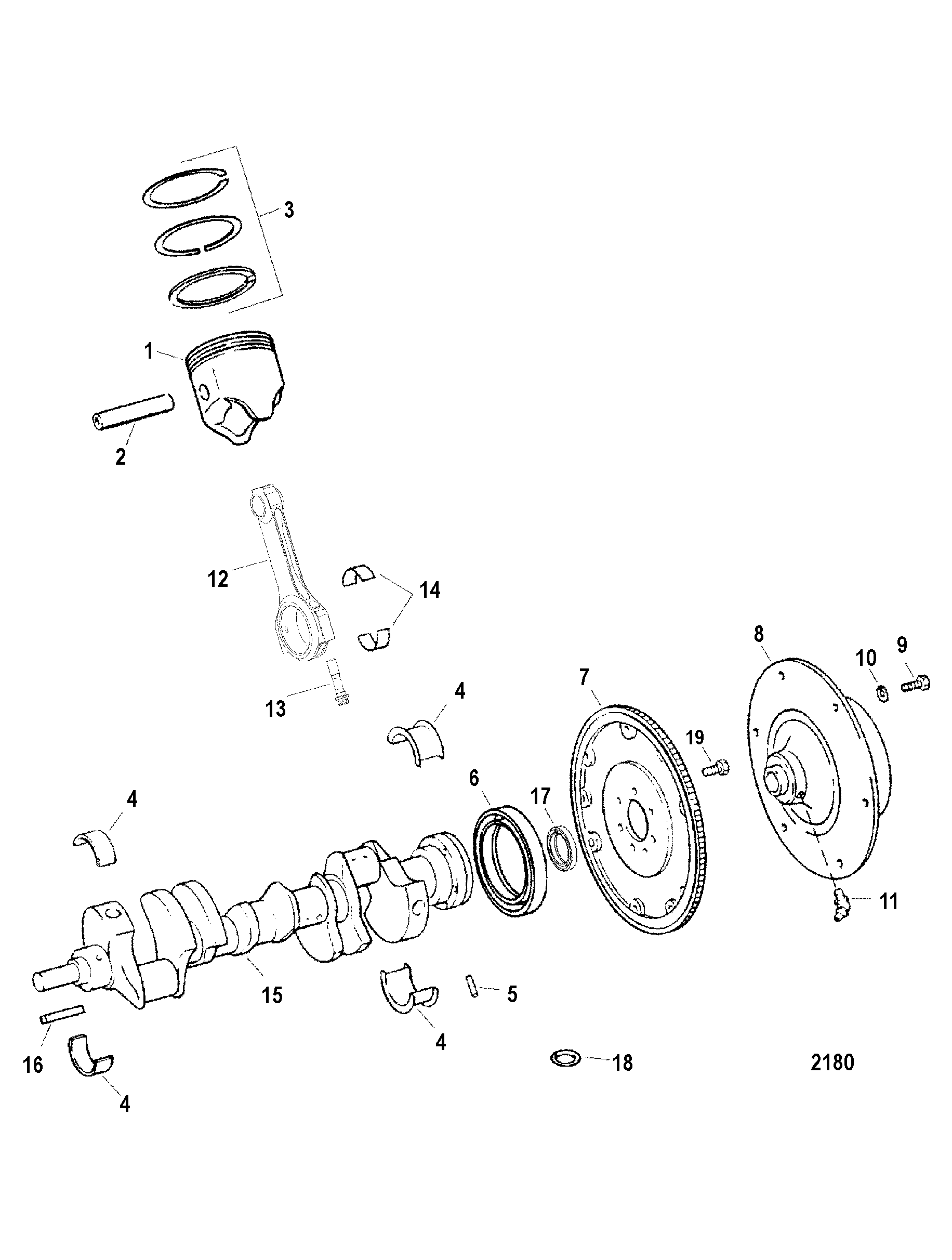

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Lubricant Monitor
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header (Design I) 90 Deg, 1 Inch Water Outlet
- Exhaust Header (Design II) Straight-1.125 Inch Water Outlet
- Flywheel Housing(Bravo Plug In)
- Flywheel Housing(Driveline)
- Fuel Pump And Fuel Cooler
- Gasket-Seal Set - Engine Overhaul(27-842182A1)
- Harness Assembly (0M052847 And Below)
- Harness Assembly (0M052848 And Up)
- Intake Manifold And Supercharger
- Intake Throttle Body Assembly
- Intake Throttle Body Components
- Mount Plates (Engine)
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Power-Assisted Steering Components
- Pump-Motor (Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mt Reservoir) (Design II - 14336A25)
- Pump-Motor (Top Mt Reservoir) (Design III - 14336A31)
- Sea Water Pump Assembly
- Sender And Sensors
- Shift Bracket
- Starter And Alternator Mounting
- Starter Assembly (50-8M8021116)
- Thermostat Housing
- Trim Pump Assembly (Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 798-849022T1 | PISTON ASSEMBLY | 8 | Standard 5 | |||||
| 1 | 798-841233T1 | PISTON ASSEMBLY | 8 | 0.034 Oversize | |||||
| 2 | 41-848819T | PIN, Piston | 8 | ||||||
| 3 | 39-827660T | RING SET, Piston - Standard | 8 | 39-827660 | 5 | ||||
| 3 | 39-852935 | RING SET, Piston - .030 Oversize | 8 | This Part is No Longer Available | |||||
| 4 | 23-818473001 | BEARING SET, Main - Standard | 1 | 23-818473 | 5 | ||||
| 4 | 23-818474 | BEARING SET, Main - .001 Undersize | AR | 5 | |||||
| 4 | 23-818475 | BEARING SET, Main - .002 Undersize | AR | 5 | |||||
| 4 | 818476001 | BEARING SET, Main - .010 Undersize | AR | 23-818476 | 5 | ||||
| 4 | 23-818477 | BEARING SET, Main - .020 Undersize | AR | 5 | |||||
| 5 | 17-843378 | PIN, Dowel (1/4 In. Diameter) (.250) | 1 | 17-35312 | 5 | ||||
| 6 | 26-811554 | 676-9-61622 | SEAL, Oil | 1 | 2,5 | ||||
| 7 | 230-843374T1 | FLYWHEEL | 1 | 230-811561 | 5 | ||||
| 8 | 861523A9 | 676-9-72503 | 525-861523A9 | COUPLER ASSEMBLY, Engine | 1 | 18311A17 | Design I | ||
| 8 | 861523A9 | COUPLER ASSEMBLY, Engine - Short Aluminium Hub | 1 | Design II | |||||
| 8 | 861523A18 | COUPLER ASSEMBLY, Engine - Short Steel Hub | 1 | Design III | |||||
| 9 | 10-35091 | SCREW, (.375-16 x 1.00) | 6 | ||||||
| 10 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 6 | ||||||
| 11 | 22-49099 | FITTING, Grease | 2 | ||||||
| 12 | 614-8M8020323 | CONNECTING ROD ASSEMBLY | 8 | 614-845240T2 | 5 | ||||
| 13 | 10-8M0000838 | SCREW, Special | 16 | 10-843391 | |||||
| 14 | 23-85726001 | BEARING SET, Connecting Rod - Standard | 8 | 23-85726 | 5 | ||||
| 14 | 23-85727 | BEARING SET, Connecting Rod - (.001 Undersize) | AR | 5 | |||||
| 14 | 23-85728 | BEARING SET, Connecting Rod - (.002 Undersize) | AR | This Part is No Longer Available 5 | |||||
| 14 | 23-85691 | BEARING SET, Connecting Rod - (.010 Undersize) | AR | 5 | |||||
| 14 | 23-85729 | BEARING SET, Connecting Rod - (.020 Undersize) | AR | 5 | |||||
| 15 | 429-843083T | CRANKSHAFT | 1 | 429-811550 | 5 | ||||
| 16 | 28-845607 | KEY, Crankshaft | 2 | 28-811558 | 5 | ||||
| 17 | 23-823108 | BUSHING, Crankshaft Pilot | 1 | Driveline Models Only 5 | |||||
| 18 | 25-69756 | O-RING, (.500 Inch), #5 Bearing Cap Oil Hole | 1 | 25-811528 | 2,5 | ||||
| 19 | 10-845757 | SCREW, (.437-20 x 1.00) | 6 | 5 | |||||
| - | 27-842182A1 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
