575 SCi - Serial 0L306696 Thru 0L307026 - Shift Bracket

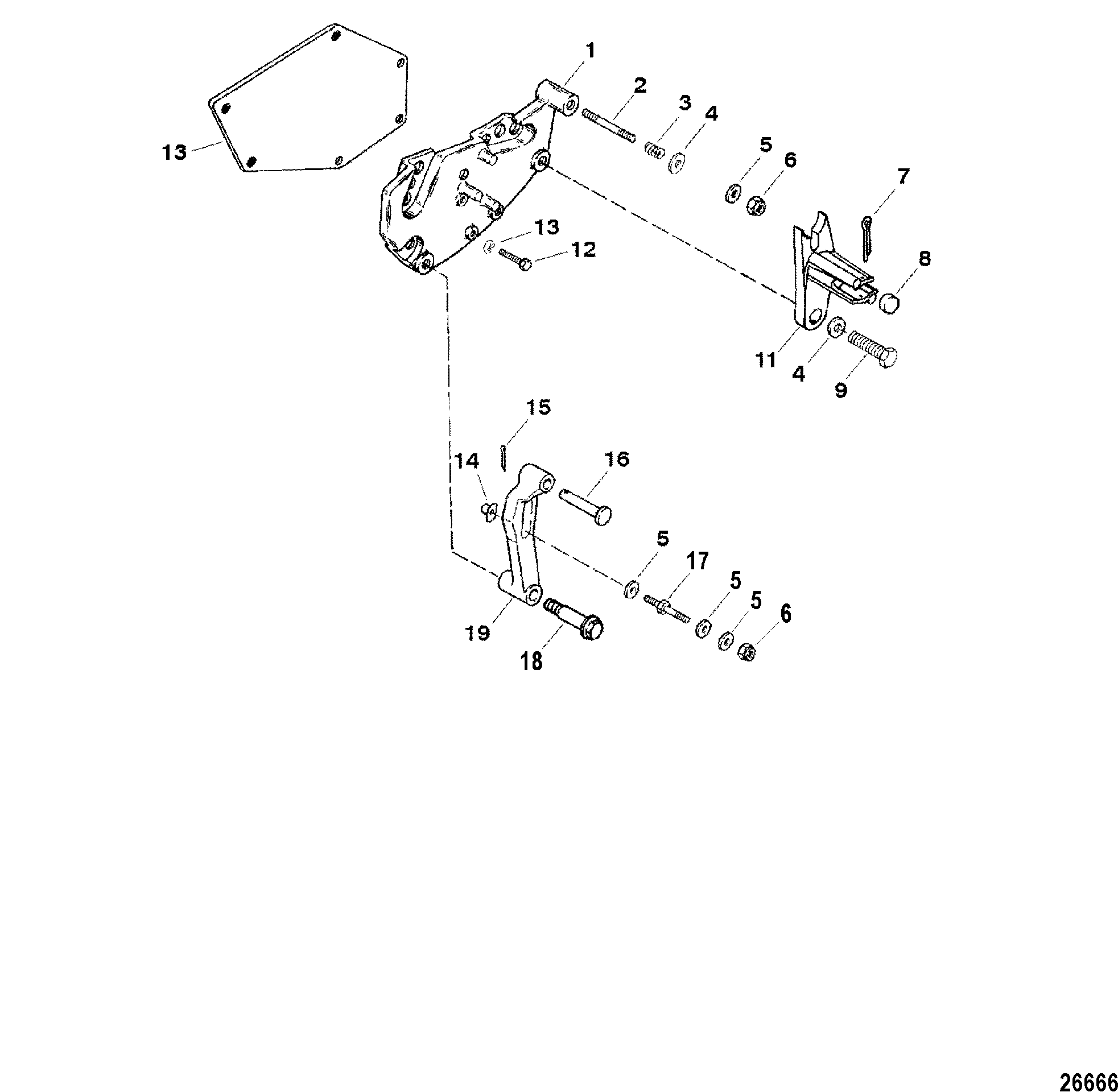

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Lubricant Monitor
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header (Design I) 90 Deg, 1 Inch Water Outlet
- Exhaust Header (Design II) Straight-1.125 Inch Water Outlet
- Flywheel Housing(Bravo Plug In)
- Flywheel Housing(Driveline)
- Fuel Pump And Fuel Cooler
- Gasket-Seal Set - Engine Overhaul(27-842182A1)
- Harness Assembly (0M052847 And Below)
- Harness Assembly (0M052848 And Up)
- Intake Manifold And Supercharger
- Intake Throttle Body Assembly
- Intake Throttle Body Components
- Mount Plates (Engine)
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Power-Assisted Steering Components
- Pump-Motor (Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mt Reservoir) (Design II - 14336A25)
- Pump-Motor (Top Mt Reservoir) (Design III - 14336A31)
- Sea Water Pump Assembly
- Sender And Sensors
- Shift Bracket
- Starter And Alternator Mounting
- Starter Assembly (50-8M8021116)
- Thermostat Housing
- Trim Pump Assembly (Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 807962A15 | BRACKET ASSEMBLY, Shift | 1 | 807962A3 | |||||
| 2 | 16-865154A02 | STUD, (.250-20/.250-28 x 2.120), Shift Cable | 1 | 16-987981 | |||||
| 3 | 24-98880 | SPRING | 1 | ||||||
| 4 | 12-56720 | WASHER, (.330 x .750 x .060) Stainless Steel | 2 | ||||||
| 5 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel | 4 | ||||||
| 6 | 11-8267119 | NUT, (.250-28) | 2 | 11-13438 | |||||
| 7 | 18-328571 | COTTER PIN | 1 | 18-32857 | |||||
| 8 | 23-98828 | SPACER | 1 | ||||||
| 9 | 10-53167 | SCREW, (.312-18 x .880) | 1 | ||||||
| 10 | 865434A02 | RETAINER, Shift Cable | 1 | 123811 | |||||
| 11 | 10-73286 | SCREW, (.250-20 x .500) Stainless Steel | 6 | ||||||
| 12 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 6 | ||||||
| 13 | 848887 | PLATE, Shift Bracket Mount | 1 | ||||||
| 14 | 11-63341 | TEE NUT | 1 | ||||||
| 15 | 18-210711 | COTTER PIN | 1 | 18-21071 | |||||
| 16 | 17-68402 | PIN, (.250 x 1.13), Shoulder | 1 | ||||||
| 17 | 16-96112 | STUD, (.250-28 x 2.00), Throttle Cable Anchor | 1 | ||||||
| 18 | 10-13743 | SCREW, (.312-18 x 1.843), Shoulder | 1 | ||||||
| 19 | 863911A12 | LEVER, Shift | 1 | 138981 | |||||
| - | 91-12427 | TOOL, Shift Adjust | 1 |
