575 SCi - Serial 0L306696 Thru 0L307026 - Intake Throttle Body Assembly

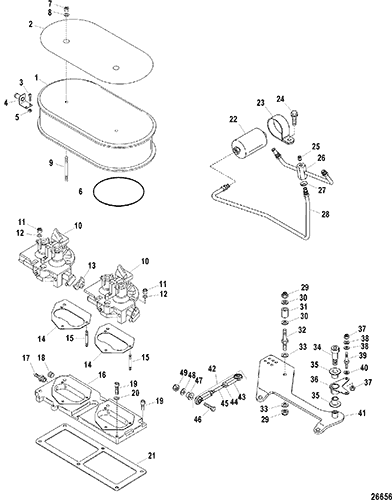

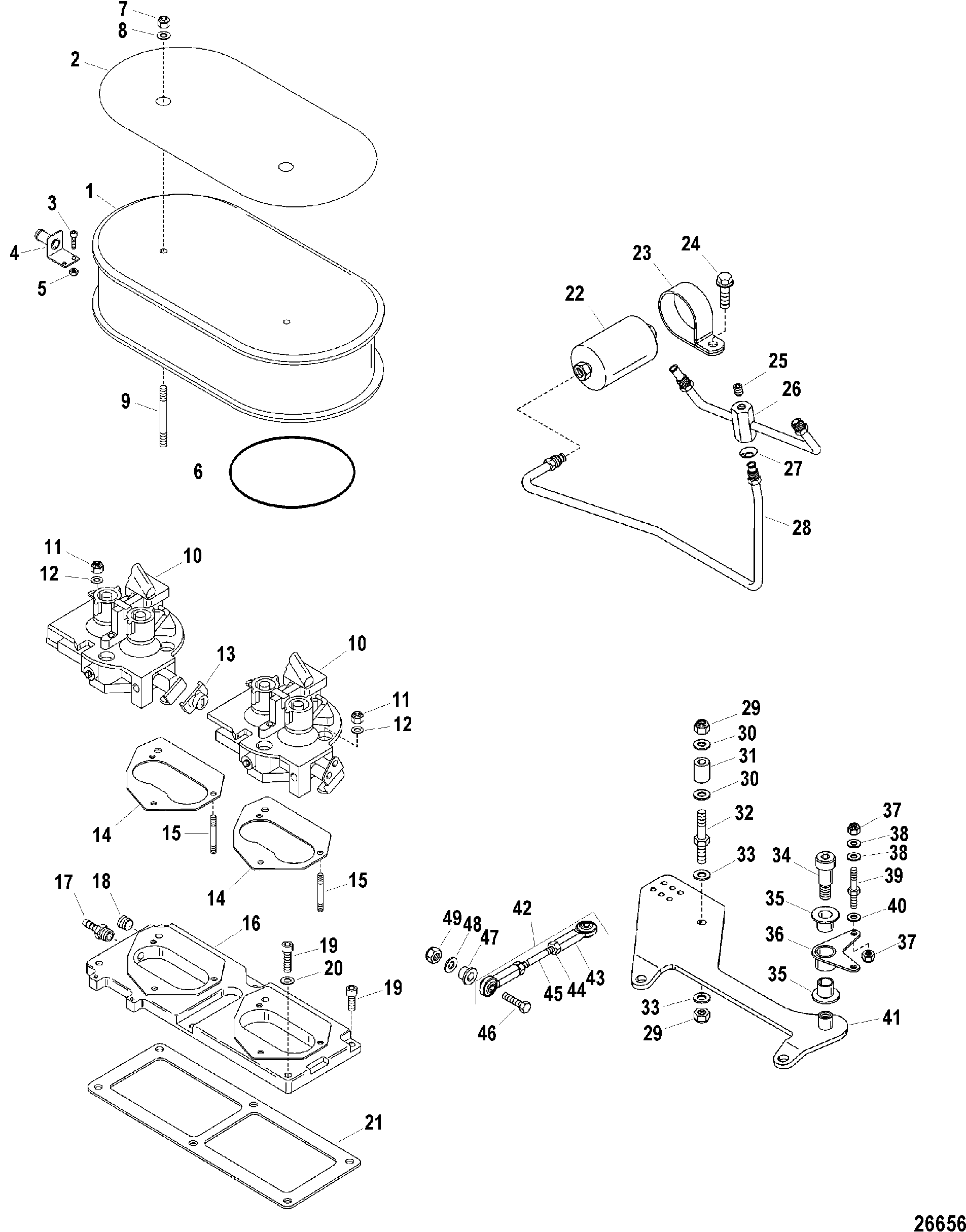

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Lubricant Monitor
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header (Design I) 90 Deg, 1 Inch Water Outlet
- Exhaust Header (Design II) Straight-1.125 Inch Water Outlet
- Flywheel Housing(Bravo Plug In)
- Flywheel Housing(Driveline)
- Fuel Pump And Fuel Cooler
- Gasket-Seal Set - Engine Overhaul(27-842182A1)
- Harness Assembly (0M052847 And Below)
- Harness Assembly (0M052848 And Up)
- Intake Manifold And Supercharger
- Intake Throttle Body Assembly
- Intake Throttle Body Components
- Mount Plates (Engine)
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Power-Assisted Steering Components
- Pump-Motor (Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mt Reservoir) (Design II - 14336A25)
- Pump-Motor (Top Mt Reservoir) (Design III - 14336A31)
- Sea Water Pump Assembly
- Sender And Sensors
- Shift Bracket
- Starter And Alternator Mounting
- Starter Assembly (50-8M8021116)
- Thermostat Housing
- Trim Pump Assembly (Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 849895A2 | ARRESTOR, Flame, Includes IAT Sensor 805223T | 1 | ||||||
| 2 | 37-814601 | DECAL, Flame Arrestor | 1 | ||||||
| 3 | 10-842143 | SCREW, (#10-32 x .620) Stainless Steel | 2 | ||||||
| 4 | 841242 | ADAPTER, Vent Hose | 1 | ||||||
| 5 | 11-29488 | 700-21163 | NUT, (#10-32) | 2 | No longer made, limited availability | ||||
| 6 | 25-841245 | O-RING, (5.239 x .070) | 2 | 2 | |||||
| 7 | 11-35888 | 676-9-72001 | 700-21180 | NUT, (.250-28) Stainless Steel | 2 | ||||
| 8 | 12-86400 | WASHER | 2 | ||||||
| 9 | 16-57835 | STUD, (.250-20/.250-28 x 4.440) | 2 | No longer made, limited availability | |||||
| 10 | 807941T13 | THROTTLE BODY ASSEMBLY, Front - Blue | 1 | 807941T2 | This Part is No Longer Available - NOTE: See Intake Throttle Body Components Section For Parts Breakdown SN# 0M052947 & Below | ||||
| 10 | 807941T13 | THROTTLE BODY ASSEMBLY, Front - Blue | 1 | This Part is No Longer Available - NOTE: See Intake Throttle Body Components Section For Parts Breakdown SN# 0M052948 & Up | |||||
| 10 | 807941T11 | THROTTLE BODY ASSEMBLY, Rear - Blue | 1 | 807941T3 | This Part is No Longer Available - NOTE: See Intake Throttle Body Components Section For Parts Breakdown SN# 0M052947 & Below | ||||
| 10 | 807941T11 | THROTTLE BODY ASSEMBLY, Rear - Blue | 1 | This Part is No Longer Available - NOTE: See Intake Throttle Body Components Section For Parts Breakdown SN# 0M052948 & Up | |||||
| 11 | 11-82670911 | NUT, (.312-24) Stainless Steel | 6 | 11-35814 | |||||
| 12 | 12-843108 | WASHER, (.330 x .560 x .060) Stainless Steel | 6 | ||||||
| 13 | 849917 | ADAPTOR, Throttle Shaft | 1 | ||||||
| 14 | 27-849918 | GASKET, Throttle Body | 2 | NOTE: Included With Supercharger Assembly 849893A8 2 | |||||
| 15 | 16-30668 | STUD, (.312-18/.312-24 x 2.812) | 6 | ||||||
| 16 | 842181T1 | ADAPTOR ASSEMBLY, Throttle Body To Supercharger | 1 | ||||||
| 17 | 22-8604901 | FITTING | 1 | ||||||
| 18 | 22-32561 | PLUG, Pipe - Allen Head (.250-18) | 1 | ||||||
| 19 | 10-848871 | SCREW, (.375-16 x .880) | 4 | This Part is No Longer Available | |||||
| 19 | 10-848160 | SCREW, (.375-16 x 1.375) Stainless Steel | 2 | ||||||
| 20 | 12-37828 | WASHER, (.390 x .625 x .062) Stainless Steel | 4 | ||||||
| 21 | 27-842182 | GASKET, Adaptor Plate | 1 | NOTE: Included With Supercharger Assembly 849893A8 2 | |||||
| 22 | 35-807174T | FILTER, Fuel | 1 | ||||||
| 23 | 54-18904 | CLIP | 1 | ||||||
| 24 | 10-817505 | SCREW, (.250-20 x .620) Stainless Steel | 1 | ||||||
| 25 | 22-47945 | PLUG, Fuel Rail | 1 | ||||||
| 26 | 32-843195A02 | LINE, Fuel - Blue | 1 | 32-8499241 | |||||
| 27 | 27-848438 | GASKET, Flare | 1 | NOTE: Included With Supercharger Assembly 849893A8 2 | |||||
| 28 | 32-844472 | LINE, Fuel, Rail To Filter | 1 | ||||||
| 29 | 11-826709109 | NUT, (.250-28) Stainless Steel | 2 | ||||||
| 30 | 12-69056 | WASHER, (.255 x .625 x .0312) | 2 | 12-21631 | |||||
| 31 | 23-31866 | SPACER, (.256 x .313 x .625) | 1 | ||||||
| 32 | 16-96112 | STUD, (.250-28 x 2.00), Throttle Cable Anchor | 1 | ||||||
| 33 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 2 | ||||||
| 34 | 10-841237 | SHOULDER SCREW, (.375-16) Stainless Steel | 1 | ||||||
| 35 | 23-841238 | BUSHING, Bellcrank | 2 | ||||||
| 36 | 8437941 | BELLCRANK ASSEMBLY | 1 | ||||||
| 37 | 11-826709109 | NUT, (.250-28) Stainless Steel | 2 | ||||||
| 38 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 2 | ||||||
| 39 | 16-805526 | STUD, (.250-28 x 1.540) | 1 | ||||||
| 40 | 12-35950 | WASHER, (.273 x .437 x .031) Stainless Steel | 1 | ||||||
| 41 | 843327 | BRACKET, Throttle | 1 | ||||||
| 42 | 847881A1 | LINK ASSEMBLY, Throttle | 1 | ||||||
| 43 | 847881 | ROD END, Right Hand | 2 | ||||||
| 44 | 11-F2015 | NUT, (.250-28) Stainless Steel | 2 | ||||||
| 45 | 16-841255 | STUD, (.250-28 x 2.500) | 1 | ||||||
| 46 | 10-59702 | SCREW, (.250-28 x .875) Stainless Steel | 2 | ||||||
| 47 | 23-43045 | 700-31590 | INSULATOR, Throttle Arm TBI | 1 | |||||
| 48 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 2 | ||||||
| 49 | 11-826709109 | NUT, (.250-28) Stainless Steel | 2 | ||||||
| - | 27-842182A1 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
