575 SCi - Serial 0L306696 Thru 0L307026 - Oil Pan And Oil Pump

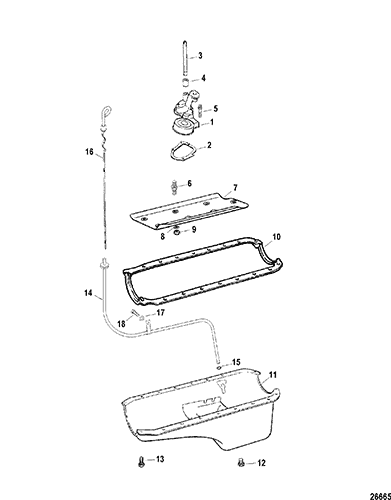

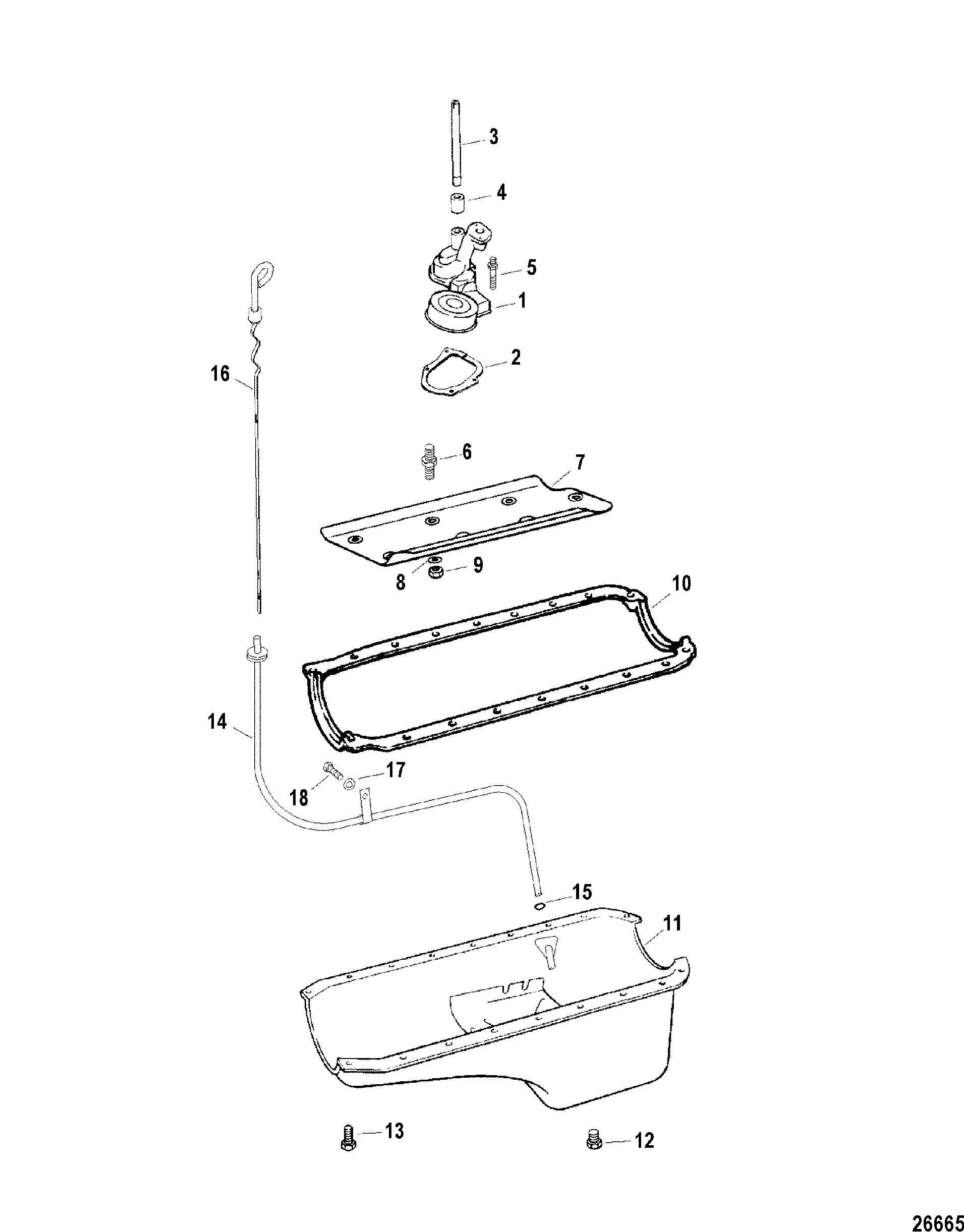

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Circulating Water Pump And Front Cover
- Crankshaft - Pistons - Connecting Rods
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Drive Lubricant Monitor
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Header (Design I) 90 Deg, 1 Inch Water Outlet
- Exhaust Header (Design II) Straight-1.125 Inch Water Outlet
- Flywheel Housing(Bravo Plug In)
- Flywheel Housing(Driveline)
- Fuel Pump And Fuel Cooler
- Gasket-Seal Set - Engine Overhaul(27-842182A1)
- Harness Assembly (0M052847 And Below)
- Harness Assembly (0M052848 And Up)
- Intake Manifold And Supercharger
- Intake Throttle Body Assembly
- Intake Throttle Body Components
- Mount Plates (Engine)
- Oil Cooler And Oil Filter
- Oil Pan And Oil Pump
- Power-Assisted Steering Components
- Pump-Motor (Bottom Mt Reservoir) (Design I - 14336A8)
- Pump-Motor (Top Mt Reservoir) (Design I - 14336A20)
- Pump-Motor (Top Mt Reservoir) (Design II - 14336A25)
- Pump-Motor (Top Mt Reservoir) (Design III - 14336A31)
- Sea Water Pump Assembly
- Sender And Sensors
- Shift Bracket
- Starter And Alternator Mounting
- Starter Assembly (50-8M8021116)
- Thermostat Housing
- Trim Pump Assembly (Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 827589T1 | PUMP ASSEMBLY, Oil | 1 | 5 | |||||
| 2 | FI5000254 | GASKET, Oil Pump Cover | 1 | This Part is No Longer Available 2 | |||||
| 3 | 14761 | SHAFT AND RETAINER | 1 | 5 | |||||
| 4 | 23-36183 | RETAINER | 1 | 5 | |||||
| 5 | 16-845599 | STUD | 1 | 16-49108 | 5 | ||||
| 6 | 16-811683 | STUD, (.375-16/.500-12 x 5.500) | 5 | 5 | |||||
| 7 | 843945T | BAFFLE | 1 | 811682 | 5 | ||||
| 8 | 12-20553 | WASHER, (.406 x .734 x .063) | 5 | 5 | |||||
| 9 | 11-37500 | NUT, (3/8-16) | 5 | 5 | |||||
| 10 | 27-845628 | GASKET | 1 | 27-811566 | 2,5 | ||||
| 11 | 845668T | PAN ASSEMBLY, Oil | 1 | 850458 | 5 | ||||
| 12 | 10-809911001 | SCREW, Oil Drain (M12 x 1.75), With Seal | 1 | 10-809911 | 5 | ||||
| 13 | 10-808707 | SCREW, (.312-18 x .625) | 20 | 5 | |||||
| 14 | 818631A6 | TUBE ASSEMBLY, Dipstick | 1 | 5 | |||||
| 15 | 25-62704 | O-RING, (.362 x .103) | 1 | 2 | |||||
| 16 | 861942T9 | DIPSTICK, Oil Level | 1 | ||||||
| 17 | 12-846673 | WASHER, (.265 x .500 x .060) Stainless Steel | 1 | 5 | |||||
| 18 | 10-817505 | SCREW, (.250-20 x .620) Stainless Steel | 1 | 5 | |||||
| - | 27-842182A1 | GASKET/SEAL SET, Engine Overhaul | 1 | NOTE: See Gasket/Seal Set - Engine Overhaul Section For Complete Parts Listing |
