500 Bulldog 1999-2001 - Serial 0L414620 Thru 0M050281 - Cylinder Head And Rocker Cover

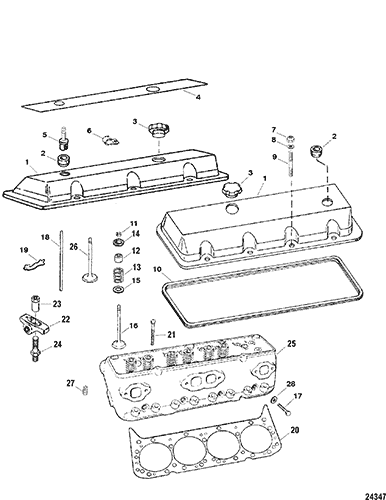

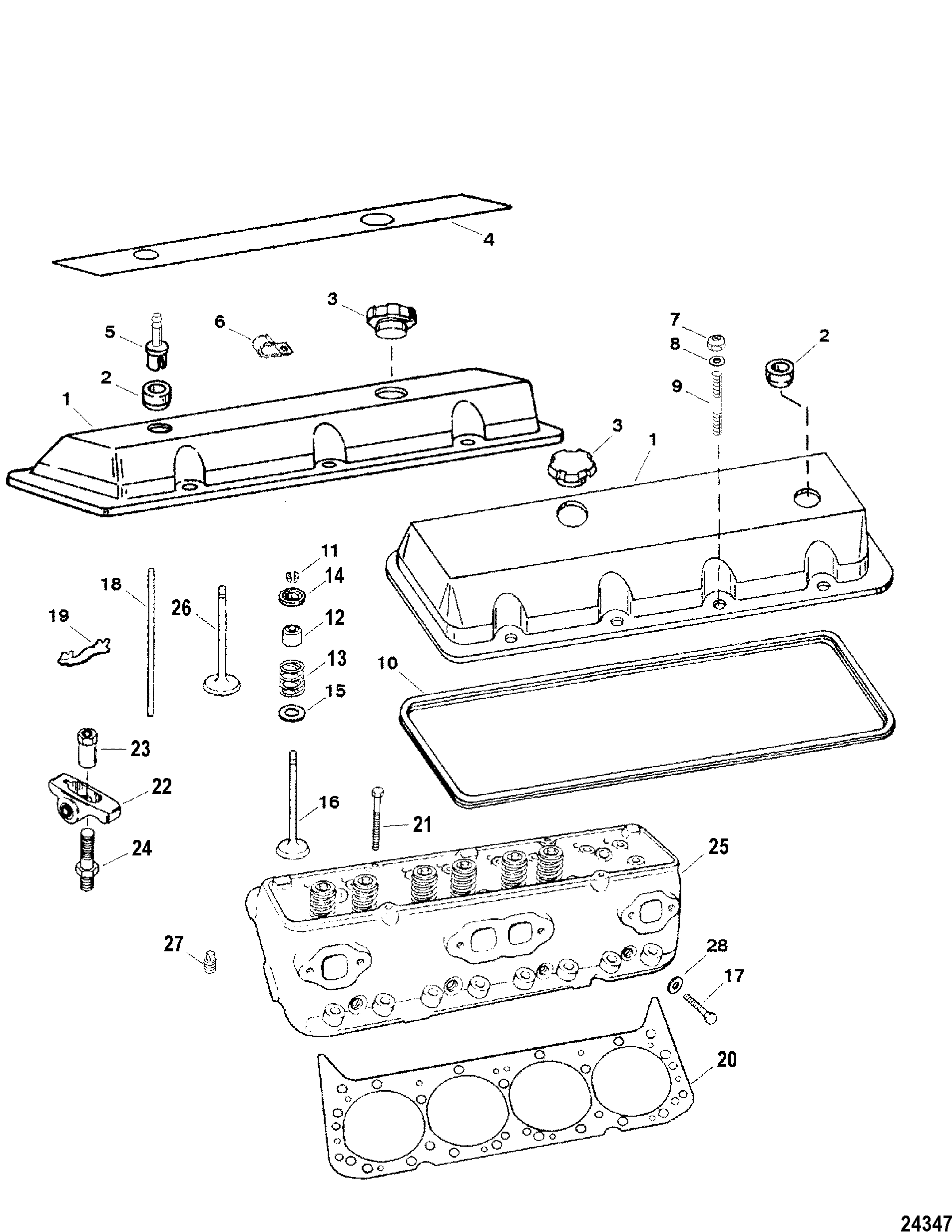

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Carburetor And Linkage
- Crankshaft And Piston Assembly
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Blockoff Plate
- Exhaust Manifold And Tailpipe Components
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Intake Manifold And Front Cover
- Mount Plates - Engine
- Oil Cooler Assembly (Bravo)
- Oil Cooler Assembly (Driveline)
- Oil Filter And Oil Adaptor
- Oil Pan And Oil Pump
- Oil Reservior Bottle
- Power-Assisted Steering Pump Assembly
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design I - 14336A8)
- Pump-Motor Assembly (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Bravo)
- Starter And Alternator
- Starter Assembly
- Thermostat Housing And Water Hoses
- Trim Pump Assembly(Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 811587A4 | COVER ASSEMBLY, Rocker Valve - Blue | 2 | This Part is No Longer Available 5 | |||||
| 2 | 25-811553 | GROMMET, Rocker Cover | 2 | ||||||
| 3 | 36-811569 | CAP, Oil Tank | 2 | ||||||
| 4 | 37-848590 | DECAL | 2 | This Part is No Longer Available | |||||
| 5 | 22-8485571 | FITTING | 2 | 5 | |||||
| 6 | 54-642352 | J CLIP | 1 | 5 | |||||
| 7 | 11-35888 | 676-9-72001 | 700-21180 | NUT, (.250-28) | 14 | 5 | |||
| 8 | 12-846673 | WASHER, (.265 x .500 x .060) | 14 | 5 | |||||
| 9 | 16-56766 | STUD, (.250-20/.250-28 x 1.380) | 14 | 5 | |||||
| 10 | 27-14765 | 676-9-61311 | GASKET, Rocker Cover | 2 | 2,5 | ||||
| 11 | 8M0042989 | KEY, Valve Stem | 32 | 960281 | 5 | ||||
| 12 | 26-69285 | SEAL, Valve | 8 | Intake 2,5 | |||||
| 12 | 26-842755 | SEAL, Valve | 8 | 26-843334 | Exhaust 2,5 | ||||
| 13 | 24-845617A2 | SPRING/RETAINER KIT | 16 | 5 | |||||
| 14 | 843465 | RETAINER | 16 | 5 | |||||
| 15 | 15-845669 | SHIM, Valve Spring (.015) | AR | 15-54531 | 5 | ||||
| 15 | 15-77624 | SHIM, Valve Spring (.030) | AR | 5 | |||||
| 16 | 843080 | VALVE, Exhaust | 8 | 13024 | 5 | ||||
| 17 | 10-8M0000463 | BOLT (2.00 Inches) Cylinder Head | 8 | 10-491061 | 5 | ||||
| 18 | 848509 | PUSHROD, Valve | 8 | (8.650) Intake 5 | |||||
| 18 | 848508 | PUSHROD, Valve | 8 | (9.600) Exhaust 5 | |||||
| 19 | 49132 | GUIDE, Push Rod | 8 | 5 | |||||
| 20 | 27-42591 | GASKET, Cylinder Head | 2 | 2,5 | |||||
| 21 | 10-8M0000482 | BOLT, (4.125 Inch), Cylinder Head | 24 | 10-49105 | 5 | ||||
| 22 | 845618T | ROCKER ARM ASSEMBLY | 16 | 5 | |||||
| 23 | 11-848610 | NUT, Valve Rocker Arm | 16 | 5 | |||||
| 24 | 95820 | STUD, Rocker Arm Valve | 16 | 5 | |||||
| 25 | 938-816778T3 | HEAD ASSEMBLY, Cylinder | 2 | 5 | |||||
| 26 | 821024T | VALVE, Intake (2.250 Diameter) Standard | 8 | ||||||
| 27 | 22-845174 | PLUG (.500-14) | 1 | 22-61162 | 2,5 | ||||
| 28 | 12-45176 | WASHER, (.453 x .812 x .105) | 8 | 5 | |||||
| - | 27-99386A96 | GASKET SET, Engine Overhaul | 1 |
