500 Bulldog 1999-2001 - Serial 0L414620 Thru 0M050281 - Starter Assembly

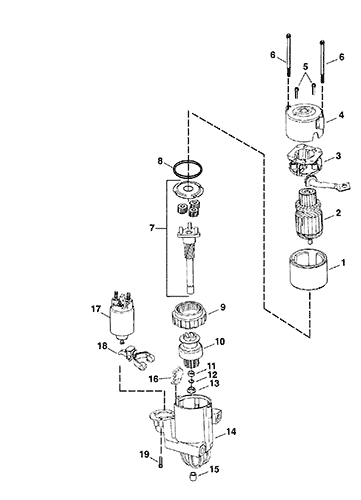

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Carburetor And Linkage
- Crankshaft And Piston Assembly
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Blockoff Plate
- Exhaust Manifold And Tailpipe Components
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Intake Manifold And Front Cover
- Mount Plates - Engine
- Oil Cooler Assembly (Bravo)
- Oil Cooler Assembly (Driveline)
- Oil Filter And Oil Adaptor
- Oil Pan And Oil Pump
- Oil Reservior Bottle
- Power-Assisted Steering Pump Assembly
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design I - 14336A8)
- Pump-Motor Assembly (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Bravo)
- Starter And Alternator
- Starter Assembly
- Thermostat Housing And Water Hoses
- Trim Pump Assembly(Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 50-8M8021116 | STARTER MOTOR ASSEMBLY | 1 | ||||||
| 2 | NSS | NOT SOLD SEPARATE, Armature | 1 | This Part is not sold separately | |||||
| 3 | NSS | NOT SOLD SEPARATE, Brush And Spring Holder | 1 | This Part is not sold separately | |||||
| 4 | NSS | NOT SOLD SEPARATE, Frame | 1 | This Part is not sold separately | |||||
| 5 | NSS | NOT SOLD SEPARATE, Screw | 2 | This Part is not sold separately | |||||
| 6 | NSS | NOT SOLD SEPARATE, Thru Bolt | 2 | This Part is not sold separately | |||||
| 7 | NSS | NOT SOLD SEPARATE, Shaft And Gear Assembly | 1 | This Part is not sold separately | |||||
| 8 | NSS | NOT SOLD SEPARATE, Gasket | 1 | This Part is not sold separately | |||||
| 9 | NSS | NOT SOLD SEPARATE, Gear | 1 | This Part is not sold separately | |||||
| 10 | NSS | NOT SOLD SEPARATE, Drive | 1 | This Part is not sold separately | |||||
| 11 | 33291 | COLLAR | 1 | ||||||
| 12 | 53-33290 | RING, Retaining | 1 | ||||||
| 13 | NSS | NOT SOLD SEPARATE, Thrust Collar | 1 | This Part is not sold separately | |||||
| 14 | NSS | NOT SOLD SEPARATE, Drive Housing Assembly | 1 | This Part is not sold separately | |||||
| 15 | 23-814476 | BUSHING | 1 | This Part is No Longer Available | |||||
| 16 | NSS | NOT SOLD SEPARATE, Grommet | 1 | This Part is not sold separately | |||||
| 17 | 809463A1 | 676-9-15125 | 700-72450 | SOLENOID KIT | 1 | ||||
| 18 | NSS | NOT SOLD SEPARATE, Lever | 1 | This Part is not sold separately | |||||
| 19 | NSS | NOT SOLD SEPARATE, Screw | 3 | This Part is not sold separately |
