500 Bulldog 1999-2001 - Serial 0L414620 Thru 0M050281 - Sea Water Pump Assembly

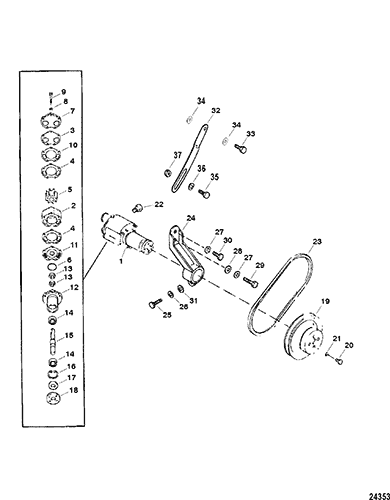

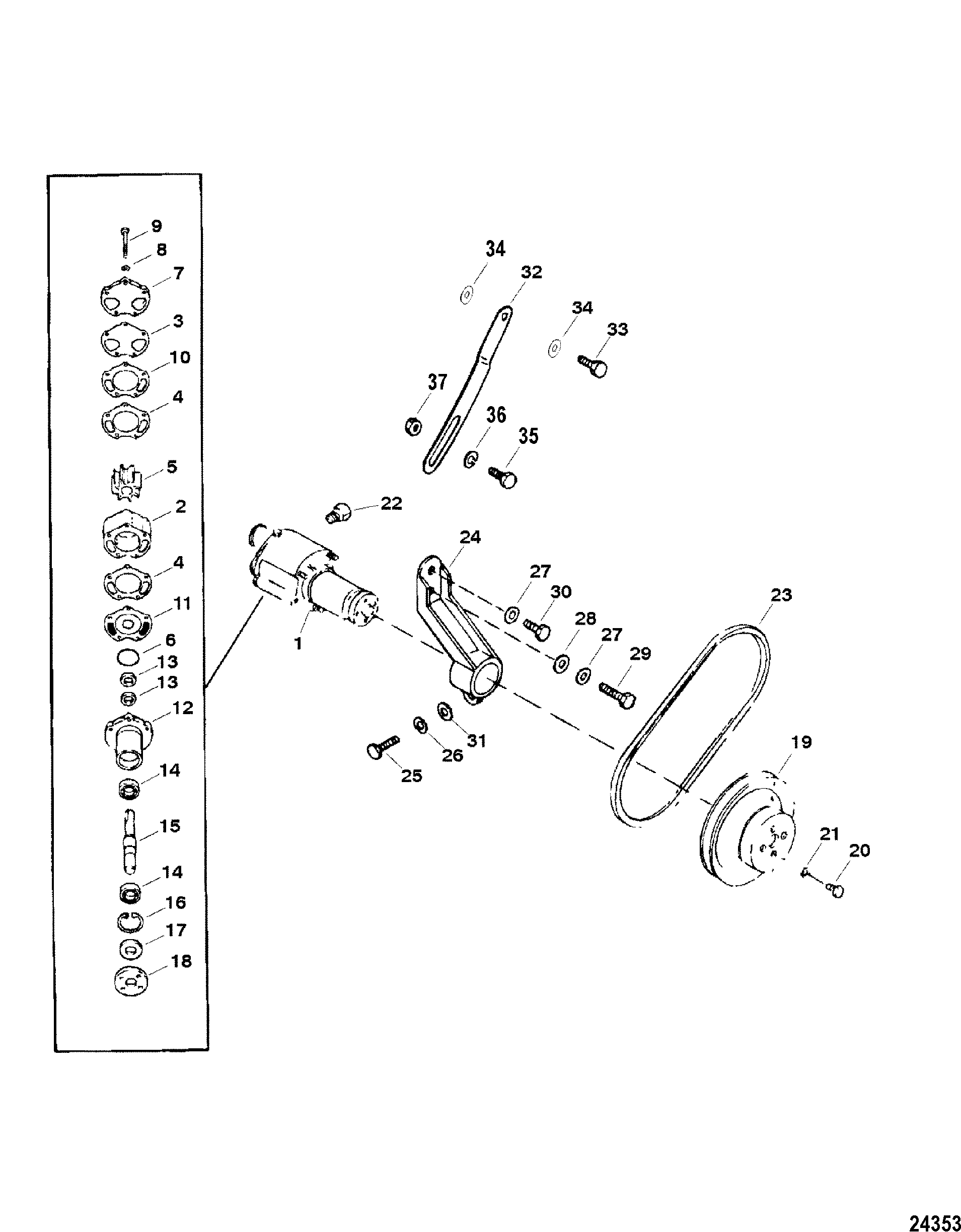

Section Drawing: (Hover or click to view larger)
