500 Bulldog 1999-2001 - Serial 0L414620 Thru 0M050281 - Senders And Sensors

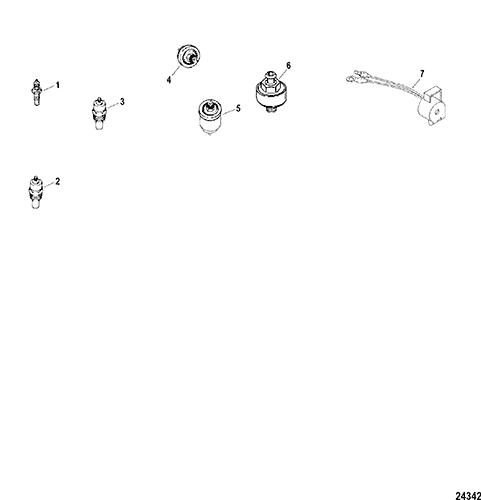

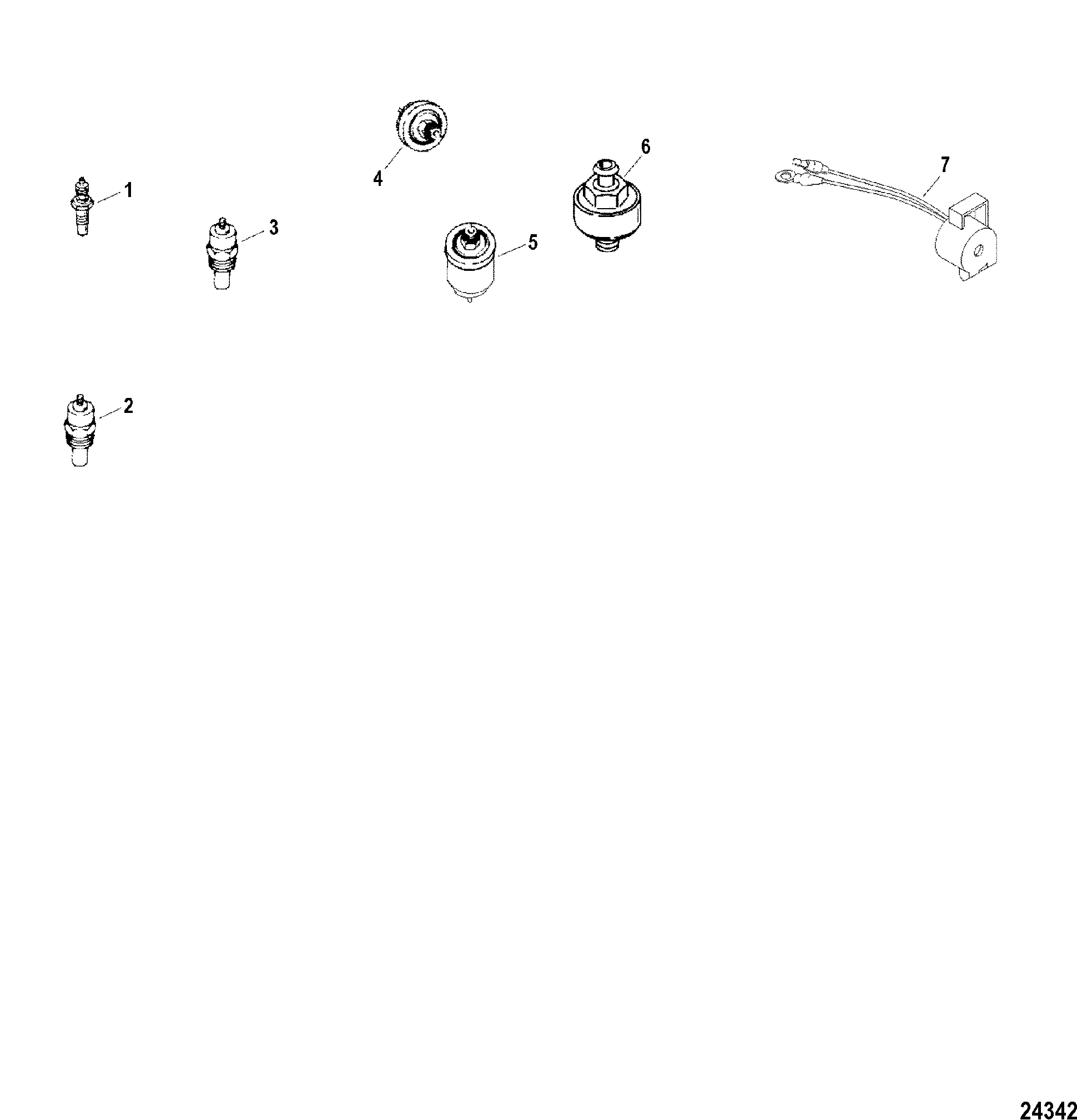

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 8493631         SENDER ASSEMBLY, Oil Temperature 1
Front Of Lower Oil Adaptor
2 48952         SWITCH ASSEMBLY, Water Temperature 1
Audio - Intake Manifold
3 806490T         SENDER ASSEMBLY, Water Temperature 1 97257A1 Thermostat Housing
4 87-805605A1         SWITCH ASSEMBLY, Oil Pressure 1
Back Of Lower Oil Adaptor
5 8M0068784         SENDER ASSEMBLY, Oil Pressure 1 87-815425T Lower Oil Adaptor
6 8M0077616         SENSOR ASSEMBLY, Knock 1 805544T
7 816492A6         ALARM KIT, Audio Warning 1
