500 Bulldog 1999-2001 - Serial 0L414620 Thru 0M050281 - Flywheel Housing (Bravo)

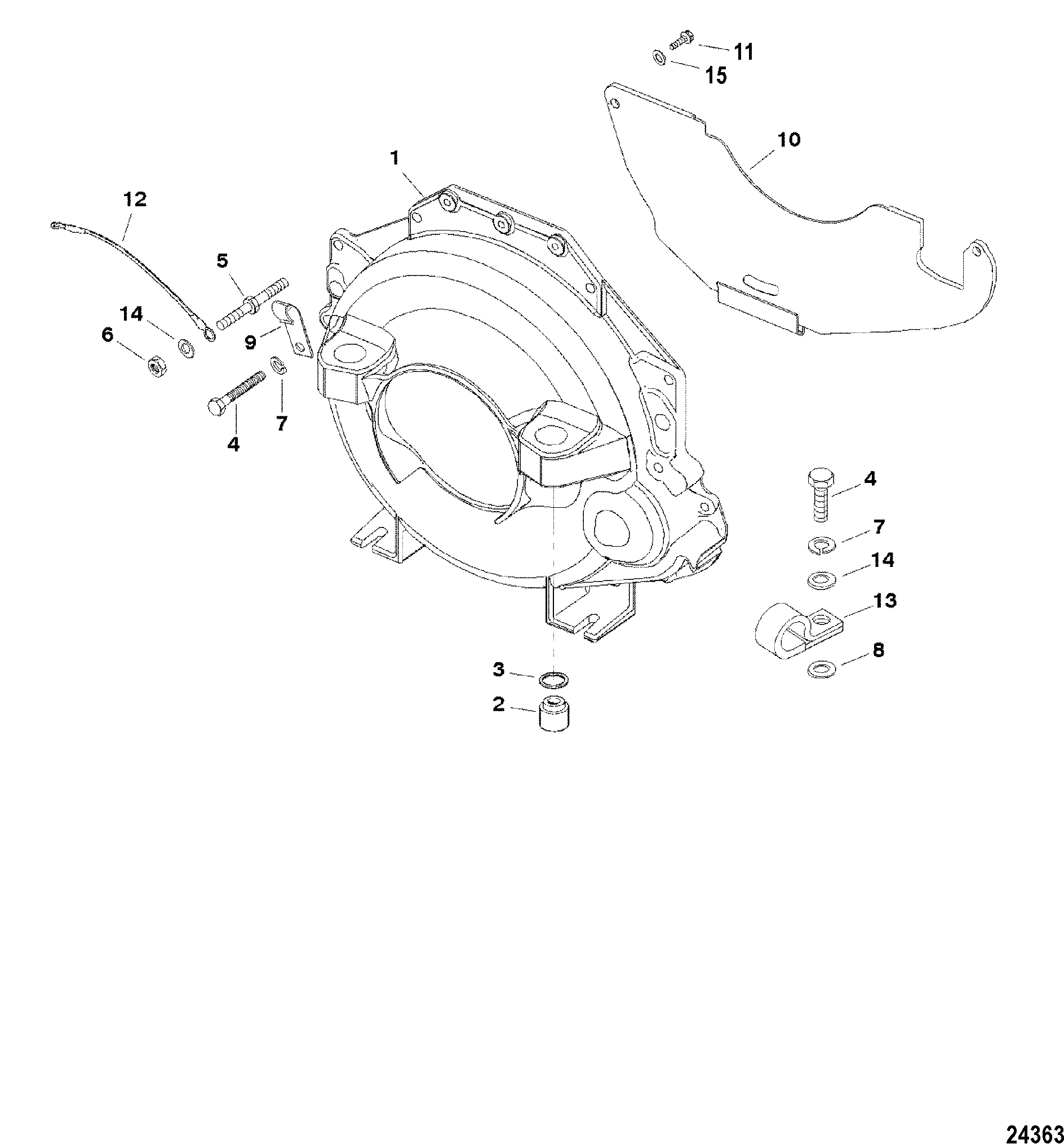

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Carburetor And Linkage
- Crankshaft And Piston Assembly
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Blockoff Plate
- Exhaust Manifold And Tailpipe Components
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Intake Manifold And Front Cover
- Mount Plates - Engine
- Oil Cooler Assembly (Bravo)
- Oil Cooler Assembly (Driveline)
- Oil Filter And Oil Adaptor
- Oil Pan And Oil Pump
- Oil Reservior Bottle
- Power-Assisted Steering Pump Assembly
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design I - 14336A8)
- Pump-Motor Assembly (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Bravo)
- Starter And Alternator
- Starter Assembly
- Thermostat Housing And Water Hoses
- Trim Pump Assembly(Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 865657A04 | 620-91200 | HOUSING ASSEMBLY, Flywheel | 1 | 12675T9 | ||||
| 2 | 865330A02 | MOUNT, Rubber | 2 | 88791T | |||||
| 3 | 23-99322 | 700-21050 | SPACER, Rubber Mount | 2 | |||||
| 4 | 10-35047 | SCREW, (.375-16 x 1.250) Stainless Steel | 3 | ||||||
| 4 | 10-32132 | SCREW, (.375-16 x 1.750) | 1 | ||||||
| 5 | 16-64066 | STUD, (.375-16 x 2.750) Special | 2 | ||||||
| 6 | 11-32219 | NUT, (.375-16) | 2 | ||||||
| 7 | 13-35048 | LOCKWASHER, (.375) | 8 | ||||||
| 8 | 12-20572 | WASHER, (.390 x .750 x .093) | 1 | ||||||
| 9 | 54-78945 | J CLAMP, Harness Support - Flywheel Housing Stud | 2 | ||||||
| 10 | 807260A2 | COVER KIT, Flywheel | 1 | ||||||
| 11 | 10-455611 | SCREW, (.250-20 x 1.120) | 2 | ||||||
| 12 | 84-62826A6 | CABLE ASSEMBLY, Ground - Black (13.00 Inches) | 2 | ||||||
| 13 | 54-62494 | CLIP, Water Hose | 1 | ||||||
| 14 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 7 | ||||||
| 15 | 12-846673 | WASHER, (.265 x .500 x .060) | 2 |
