500 Bulldog 1999-2001 - Serial 0L414620 Thru 0M050281 - Exhaust Manifold And Tailpipe Components

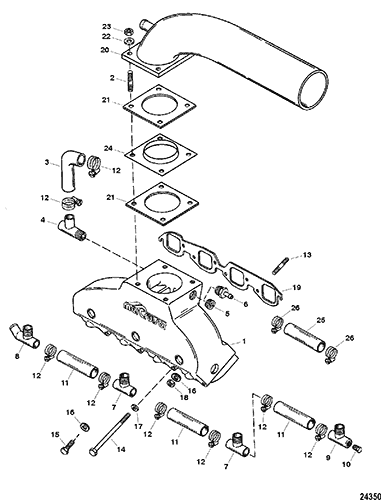

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Carburetor And Linkage
- Crankshaft And Piston Assembly
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Blockoff Plate
- Exhaust Manifold And Tailpipe Components
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Intake Manifold And Front Cover
- Mount Plates - Engine
- Oil Cooler Assembly (Bravo)
- Oil Cooler Assembly (Driveline)
- Oil Filter And Oil Adaptor
- Oil Pan And Oil Pump
- Oil Reservior Bottle
- Power-Assisted Steering Pump Assembly
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design I - 14336A8)
- Pump-Motor Assembly (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Bravo)
- Starter And Alternator
- Starter Assembly
- Thermostat Housing And Water Hoses
- Trim Pump Assembly(Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0084206 | MANIFOLD ASSEMBLY, Exhaust - Port | 1 | 814901A5 | |||||
| 1 | 814901T6 | MANIFOLD ASSEMBLY, Exhaust - Starboard | 1 | ||||||
| 2 | 16-815214 | STUD | 8 | ||||||
| 3 | 32-8152121 | HOSE, Molded - Manifold To Exhaust Pipe | 2 | ||||||
| 4 | 22-816035 | FITTING | 2 | ||||||
| 5 | 19-815203 | PLUG, Pipe | 2 | ||||||
| 6 | 22-818768 | FITTING, Straight | 2 | ||||||
| 7 | 22-815208 | FITTING, Tee | 4 | This Part is No Longer Available | |||||
| 8 | 22-815210 | FITTING, Tee | 2 | This Part is No Longer Available | |||||
| 9 | 22-815209 | FITTING, Tee | 2 | This Part is No Longer Available | |||||
| 10 | 19-815211 | PLUG, Pipe - Drain | 2 | This Part is No Longer Available | |||||
| 11 | 32-815215 | HOSE (3.50 Inches) | 6 | ||||||
| 12 | 54-815207 | CLAMP | 16 | ||||||
| 13 | 16-821279 | STUD (.375-16 x 2.187) | 4 | 5 | |||||
| 14 | 10-821107 | SCREW, (.375-16 x 3.00) | 8 | ||||||
| 15 | 10-812567 | SCREW, (.375-16 x 1.625) | 4 | ||||||
| 16 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 8 | ||||||
| 17 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel | 8 | ||||||
| 18 | 11-25269 | NUT, (.375-24) | 4 | ||||||
| 19 | 27-46820 | GASKET, Exhaust Manifold To Head | 2 | 2 | |||||
| 20 | 844418A1 | TAILPIPE ASSEMBLY, Exhaust | 2 | This Part is No Longer Available - Standard - Bravo Models | |||||
| 20 | 818499A1 | TAILPIPE ASSEMBLY, Exhaust | OPT | This Part is No Longer Available - 3.00 Inch - Bravo Models | |||||
| 20 | 818500A1 | TAILPIPE ASSEMBLY, Exhaust | OPT | 6.00 Inch - Bravo Models | |||||
| 20 | 818497A1 | TAILPIPE ASSEMBLY, Exhaust | 2 | This Part is No Longer Available - 6.00 Inch - Driveline Models | |||||
| 20 | 818495A1 | TAILPIPE ASSEMBLY, Exhaust | OPT | This Part is No Longer Available - Standard - Driveline Models | |||||
| 21 | 27-848147 | GASKET, Exhaust Elbow | 2 | 2 | |||||
| 22 | 12-49112 | WASHER | 8 | This Part is No Longer Available | |||||
| 23 | 11-68411 | NUT, (.375-16) | 8 | No longer made, limited availability | |||||
| 24 | 816037 | PLATE, Diffuser | 2 | ||||||
| 25 | 32-688941 | HOSE, (48.00 Inches Bulk), Cut 13.00 Inches | 1 | ||||||
| 26 | 54-815504105 | CLAMP, Worm Gear | 2 | ||||||
| - | 27-99386A96 | GASKET SET, Engine Overhaul | 1 |
