500 Bulldog 1999-2001 - Serial 0L414620 Thru 0M050281 - Oil Cooler Assembly (Bravo)

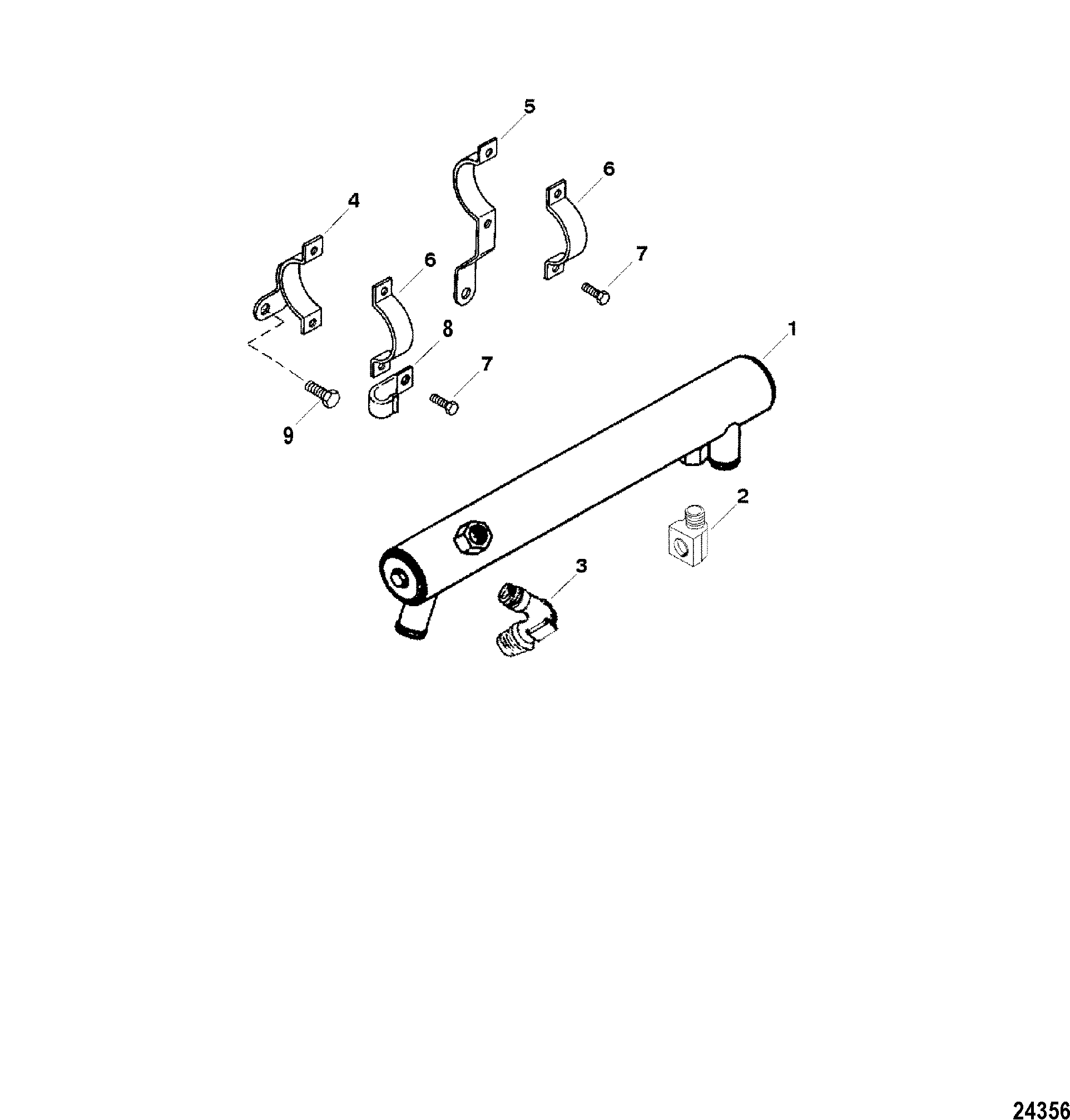

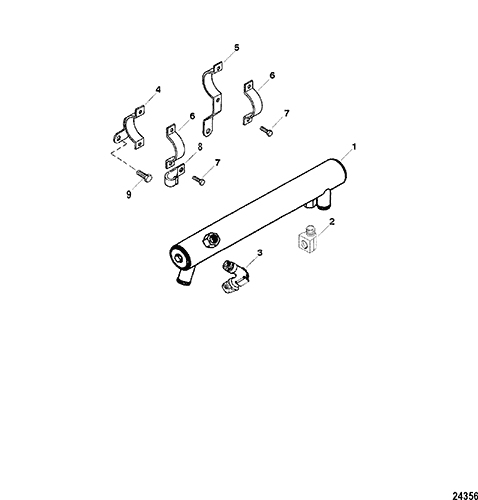

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Carburetor And Linkage
- Crankshaft And Piston Assembly
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Blockoff Plate
- Exhaust Manifold And Tailpipe Components
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Intake Manifold And Front Cover
- Mount Plates - Engine
- Oil Cooler Assembly (Bravo)
- Oil Cooler Assembly (Driveline)
- Oil Filter And Oil Adaptor
- Oil Pan And Oil Pump
- Oil Reservior Bottle
- Power-Assisted Steering Pump Assembly
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design I - 14336A8)
- Pump-Motor Assembly (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Bravo)
- Starter And Alternator
- Starter Assembly
- Thermostat Housing And Water Hoses
- Trim Pump Assembly(Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 816074T | COOLER ASSEMBLY, Oil | 1 | ||||||
| NS | 817043 | END CAP | 2 | ||||||
| NS | 27-817042 | GASKET | 2 | ||||||
| NS | 8M0039163 | O-RING, Special | 2 | 25-814878 | |||||
| NS | 10-816767 | SCREW | 2 | ||||||
| 2 | 22-706811 | ELBOW, 90 Degree | 1 | ||||||
| 3 | 22-47630 | ELBOW, 90 Degree | 1 | ||||||
| 4 | 8161951 | BRACKET, Oil Cooler - With Two Weldnuts | 1 | This Part is No Longer Available | |||||
| 5 | 8161961 | BRACKET, Oil Cooler - With Two Weldnuts | 1 | ||||||
| 6 | 56328A1 | BRACKET, Oil Cooler | 2 | ||||||
| 7 | 10-817505 | SCREW, (.250-20 x .620) | 4 | ||||||
| 8 | 54-15095 | J CLIP | 1 | ||||||
| 9 | 10-805559 | SCREW, (.375-16 x .875) | 1 |
