500 Bulldog 1999-2001 - Serial 0L414620 Thru 0M050281 - Pump-Motor Assembly (Design I - 14336A8)

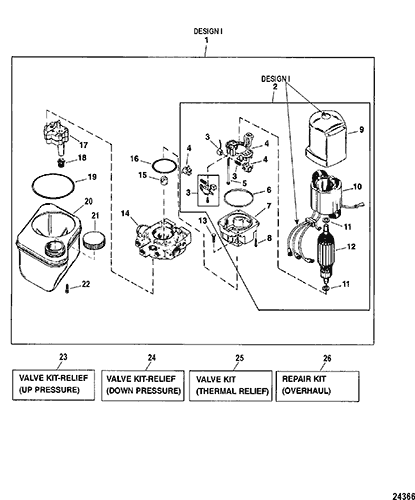

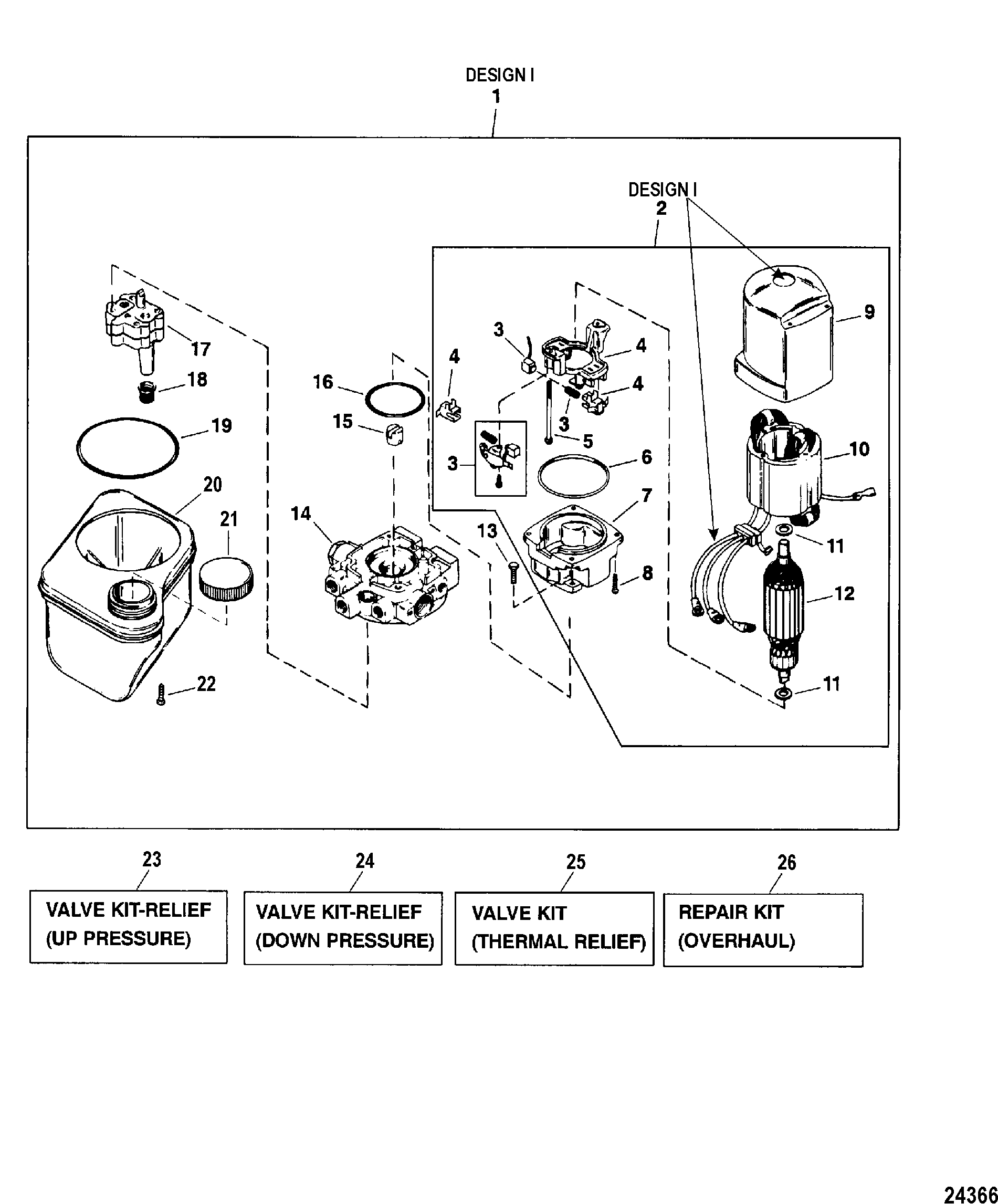

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Alternator Assembly (Mando AC-155603)
- Carburetor And Linkage
- Crankshaft And Piston Assembly
- Cylinder Block And Camshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Driveshaft Extension Components (Bravo)
- Electrical Components
- Exhaust Blockoff Plate
- Exhaust Manifold And Tailpipe Components
- Flywheel Housing (Bravo)
- Flywheel Housing (Driveline)
- Intake Manifold And Front Cover
- Mount Plates - Engine
- Oil Cooler Assembly (Bravo)
- Oil Cooler Assembly (Driveline)
- Oil Filter And Oil Adaptor
- Oil Pan And Oil Pump
- Oil Reservior Bottle
- Power-Assisted Steering Pump Assembly
- Pump-Motor Assembly (Design I - 14336A20)
- Pump-Motor Assembly (Design I - 14336A8)
- Pump-Motor Assembly (Design II - 14336A25)
- Sea Water Pump Assembly
- Senders And Sensors
- Shift Bracket (Bravo)
- Starter And Alternator
- Starter Assembly
- Thermostat Housing And Water Hoses
- Trim Pump Assembly(Complete)
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 865380A13 | PUMP/MOTOR ASSEMBLY | 1 | 14336A8 | NOTE: Bottom Mounted Reservoir - Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line | ||||
| 2 | 891736T | MOTOR ASSEMBLY, Complete | 1 | 17649T | NOTE: Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line | ||||
| 3 | 891736T | BRUSH KIT | 1 | 17631A1 | |||||
| 4 | 891736T | HOLDER KIT, Brush | 1 | 17633 | |||||
| 5 | 891736T | SCREW | 2 | 10-17621 | |||||
| 6 | 891736T | O-RING | 1 | 25-17625 | |||||
| 7 | 891736T | END CAP ASSEMBLY, With Bearing | 1 | 17632T | |||||
| 8 | 891736T | SCREW | 4 | 10-17626 | |||||
| 9 | 891736T | COVER ASSEMBLY, With Bearing | 1 | 17622 | |||||
| 10 | 891736T | FIELD AND FRAME ASSEMBLY | 1 | 17624 | |||||
| 11 | 891736T | WASHER, Thrust | 2 | 12-17653 | |||||
| 12 | 891736T | ARMATURE | 1 | 17623 | |||||
| 13 | 10-823444 | SCREW | 2 | ||||||
| 14 | 808728T | ADAPTER ASSEMBLY | 1 | ||||||
| 15 | 803852 | COUPLING | 1 | ||||||
| 16 | 25-89498 | O-RING, Motor End | 1 | ||||||
| 17 | 18529 | PUMP ASSEMBLY, Includes Screws | 1 | Does not include filters | |||||
| 18 | 35-89496 | FILTER | 1 | ||||||
| 19 | 25-17645 | O-RING, Reservoir End | 1 | ||||||
| 20 | 18525A1 | RESERVOIR, With O-Ring - Ref No 19 | 1 | This Part is No Longer Available | |||||
| 21 | 36-865448A01 | CAP, Oil Reservoir | 1 | 36-18526 | |||||
| 22 | 10-18527 | SCREW, With O-Ring And Spacer | 1 | ||||||
| 23 | 812498A1 | VALVE KIT, Relief, Up Pressure | 1 | ||||||
| 24 | 812499A1 | VALVE KIT, Relief, Down Pressure | 1 | ||||||
| 25 | 95353A1 | VALVE KIT, Relief, Thermal Relief | 1 | ||||||
| 26 | 18545A1 | REPAIR KIT, Overhaul | 1 |
