200 PRO VERADO 4-STROKE 6 CYL - Serial 2B144123 and Up - Charge Cooler/Intake Manifold

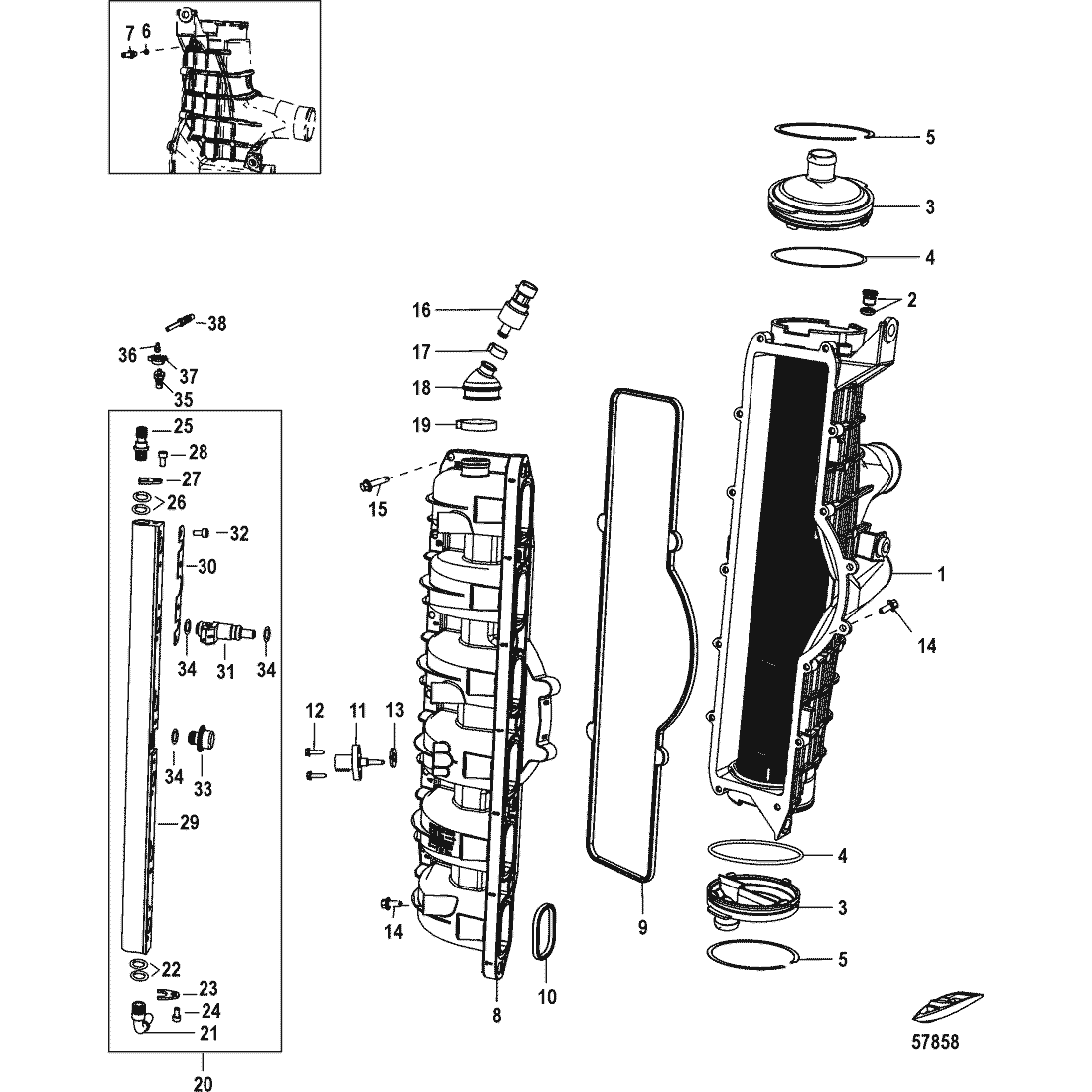

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold
- Charge Cooler/Intake Manifold Hose Routings
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Decals - Top Cowl
- Driveshaft Housing
- Electrical Box Components
- Flywheel and Cover
- Fuel Filter Kits
- Fuel Supply Module
- Gear Housing, Driveshaft, 4.80 Torpedo
- Gear Housing, Prop Shaft - Std Rot, 4.80 Torpedo
- Ground Cable Kit(899712A01)
- Induction Components
- Lower Cowl
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Transom Assembly
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler
- Starter Motor
- Steering Helm Kit-Standard (892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| - | 8M0092408 | MODULE ASSEMBLY, Integrated Air Fuel | 1 | ||||||
| 1 | 8M0092462 | CAC ASSEMBLY | 1 | ||||||
| 2 | 19-8M0048079 | PLUG , 8MM | 1 | ||||||
| 3 | 8M0046698 | END CAP ASSEMBLY | 2 | ||||||
| 4 | 25-8M0039516 | O-RING | 1 | ||||||
| 5 | 53-8M0039464 | RING, Retaining | 1 | ||||||
| 6 | 25-8M0040116 | O-RING | 1 | ||||||
| 7 | 22-8M0039993 | FITTING | 1 | ||||||
| 8 | 8M0083678 | MANIFOLD ASSEMBLY, Intake | 1 | ||||||
| 9 | 895019 | SEAL, Manifold to CAC | 1 | ||||||
| 10 | 26-895020 | SEAL, Manifold Head | 6 | ||||||
| 11 | 891663001 | SENSOR ASSEMBLY, Temperature | 1 | ||||||
| 12 | 10-895054 | SCREW | 2 | 8M0041480 | |||||
| 13 | 25-892317001 | O-RING | 1 | ||||||
| 14 | 10-88552516 | SCREW, (M6 x 16 MM) Stainless Steel, Fuel Rail to Manifold | 3 | ||||||
| 14 | 10-88552516 | SCREW, (M6 x 16 MM) Stainless Steel, CAC to Manifold | 2 | ||||||
| 15 | 10-88552525 | SCREW, (M6 x 25 MM) Stainless Steel, Manifold to CAC | 13 | ||||||
| 16 | 8M6000639 | SENSOR, Pressure | 1 | ||||||
| 17 | 54-13791 | 676-9-35604 | CLAMP, (15.7) | 1 | |||||
| 18 | 8M0041053 | BOOT, MAP Sensor | 1 | ||||||
| 19 | 54-888988001 | CLAMP, (36.1 mm) | 1 | ||||||
| 20 | 8M0041080 | FUEL RAIL ASSEMBLY | 1 | ||||||
| 21 | 32-8M0047054 | TUBE KIT, Fuel Inlet | 1 | ||||||
| 22 | NSS | O-RING Tube | 1 | Not Sold Separate | |||||
| 23 | 8M0041097 | BRACKET, Retaining | 1 | ||||||
| 24 | 10-8M0041100 | SCREW, (M5 x 10) | 1 | ||||||
| 25 | 8M0047053 | VALVE KIT, Shrader | 1 | ||||||
| 26 | NSS | O-ring- Shrader Valve | 1 | Not Sold Separate | |||||
| 27 | 8M0041097 | BRACKET, Retaining | 1 | ||||||
| 28 | 10-8M0041100 | SCREW, (M5 x 10) | 1 | ||||||
| 29 | NSS | FUEL RAIL | 1 | Not Sold Separate | |||||
| 30 | 8M0041096 | BRACKET, Fuel Injector Mounting | 3 | ||||||
| 31 | 8M0041571 | INJECTOR ASSEMBLY, Fuel | 6 | ||||||
| 32 | 10-8M0041100 | SCREW, (M5 x 10) | 12 | ||||||
| 33 | 8M0041101 | DAMPER, Fuel Rail | 1 | ||||||
| 34 | 25-851889 | O-RING | 1 | ||||||
| 35 | 8M0103315 | PITOT SENSOR KIT | 1 | ||||||
| 36 | 22-892403 | FITTING | 1 | ||||||
| 37 | 54-883066 | CLIP, (.865) | 1 | ||||||
| 38 | 22-859731 | FITTING, Adapter | 1 |
