200 PRO VERADO 4-STROKE 6 CYL - Serial 2B144123 and Up - Port Cylinder Block Components

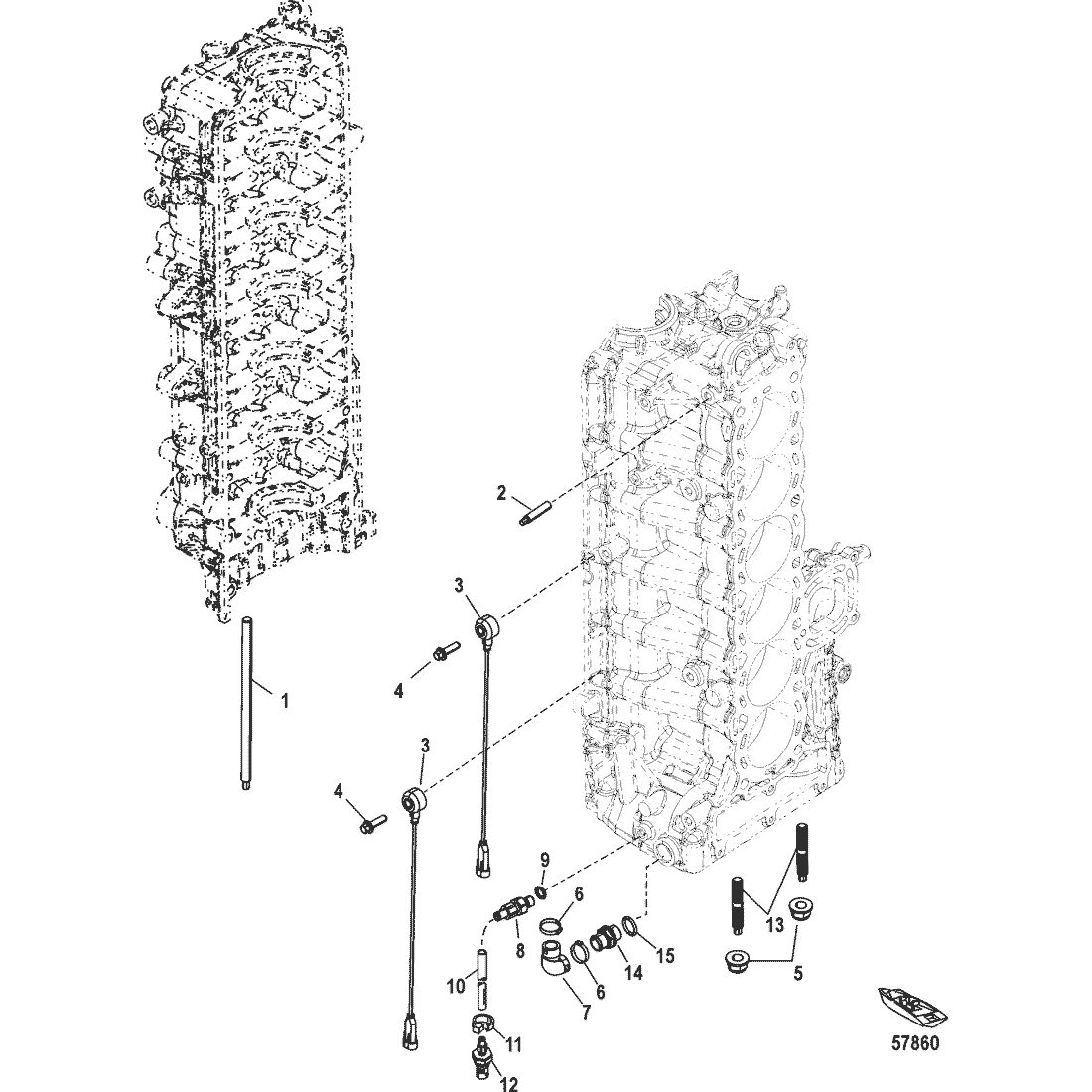

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold
- Charge Cooler/Intake Manifold Hose Routings
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Decals - Top Cowl
- Driveshaft Housing
- Electrical Box Components
- Flywheel and Cover
- Fuel Filter Kits
- Fuel Supply Module
- Gear Housing, Driveshaft, 4.80 Torpedo
- Gear Housing, Prop Shaft - Std Rot, 4.80 Torpedo
- Ground Cable Kit(899712A01)
- Induction Components
- Lower Cowl
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Transom Assembly
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler
- Starter Motor
- Steering Helm Kit-Standard (892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 16-8M0022158 | STUD, (M10 x 205) | 10 | ||||||
| 2 | 16-8M0022162 | STUD, (M10 x 60) | 1 | ||||||
| 3 | 8M6002872 | SENSOR ASSEMBLY, Knock | 2 | ||||||
| 4 | 10-8M0093638 | SCREW, (M8 x 20) | 2 | ||||||
| 5 | 11-826365 | NUT, (M8) | 2 | ||||||
| 6 | 54-888988008 | CLAMP, (34.6 mm) | 2 | ||||||
| 7 | 32-8M0043736 | HOSE | 1 | ||||||
| 8 | 22-896094A01 | FITTING ASSEMBLY | 1 | ||||||
| 9 | 25-896699 | O-RING, (1.78 mm x .08 mm) | 1 | ||||||
| 10 | 32-85978571 | TUBING, (52.00 Inches Bulk), To Water Pressure Sensor - Cut to 21.5 Inches | 1 | ||||||
| 11 | 54-816311T | TIE STRAP, (8.00 Inches) | 1 | ||||||
| 12 | 881879T26 | SENSOR, Pressure, Water | 1 | ||||||
| 13 | 16-8M0000274 | STUD, (M8 x 44) | 2 | ||||||
| 14 | 22-885517A05 | FITTING ASSEMBLY | 1 | ||||||
| 15 | 25-892077 | O-RING | 1 | ||||||
| - | 61-896966A07 | ASSEMBLY, Long Block | 1 |
