200 PRO VERADO 4-STROKE 6 CYL - Serial 2B144123 and Up - Fuel Filter Kits
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold
- Charge Cooler/Intake Manifold Hose Routings
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Decals - Top Cowl
- Driveshaft Housing
- Electrical Box Components
- Flywheel and Cover
- Fuel Filter Kits
- Fuel Supply Module
- Gear Housing, Driveshaft, 4.80 Torpedo
- Gear Housing, Prop Shaft - Std Rot, 4.80 Torpedo
- Ground Cable Kit(899712A01)
- Induction Components
- Lower Cowl
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Transom Assembly
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler
- Starter Motor
- Steering Helm Kit-Standard (892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components

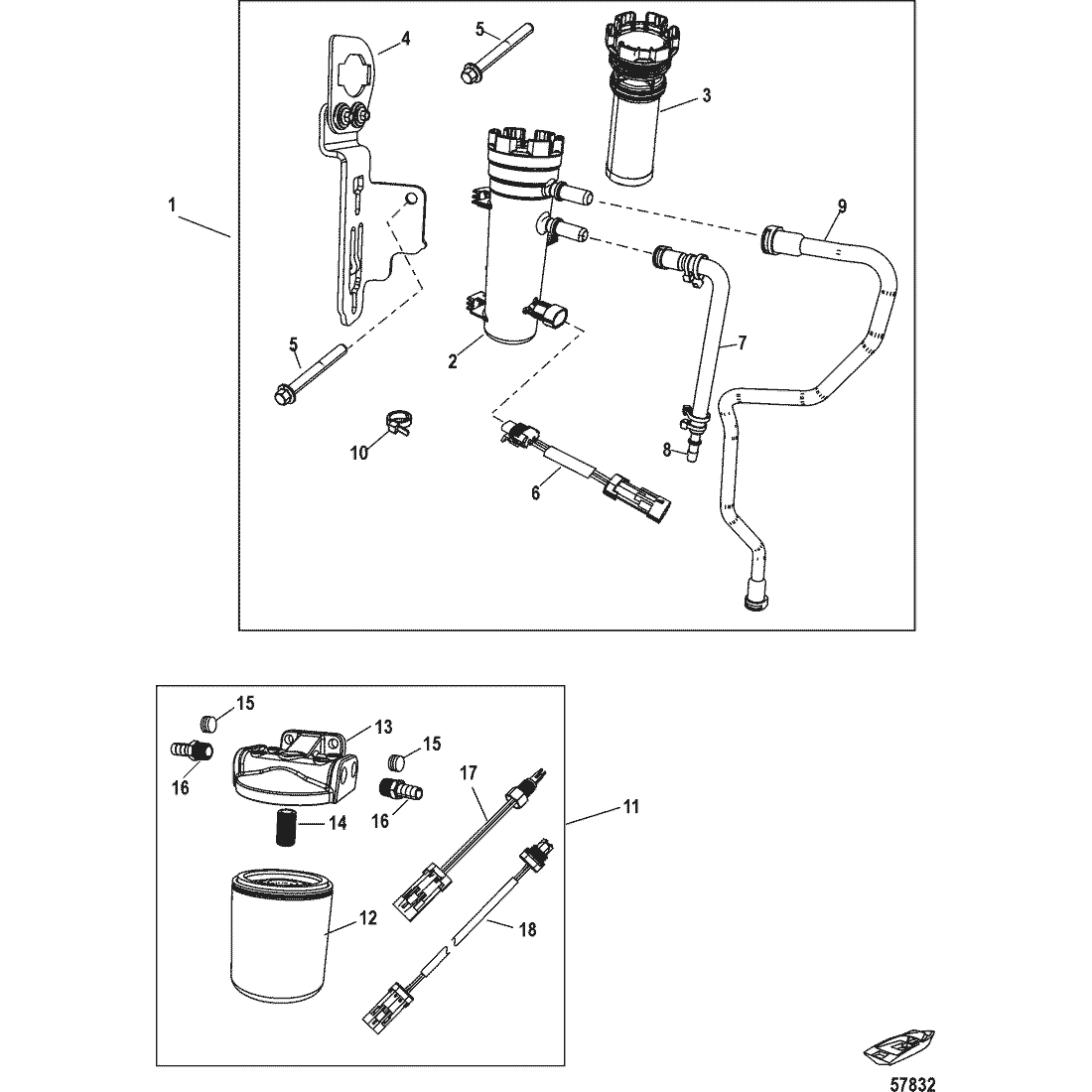

Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
1 | 98-8M0103686 | FUEL FILTER KIT, Engine Mounted, Optional | 1 | ||||||
2 | 35-8M0062950 | FILTER ASSEMBLY | 1 | ||||||
3 | 35-8M0060041 | FILTER, Fuel | 1 | ||||||
4 | 8M0009261 | BRACKET ASSEMBLY | 1 | ||||||
5 | 10-88552785 | SCREW, (M10 x 85) | 1 | ||||||
6 | 84-8M0103724 | HARNESS, WIF Extension | 1 | ||||||
7 | 32-8M0046557 | HOSE ASSMEBLY, Fuel Inlet, 8.2 Inch | 1 | ||||||
8 | 22-892356 | CONNECTOR | 1 | ||||||
9 | 32-8M0087107 | HOSE | 1 | ||||||
10 | 54-816311T | TIE STRAP, (8.00 Inches) | 3 | ||||||
11 | 8M0095669 | FUEL FILTER KIT, with o-ring, MPP, Remote Mounted | 1 | ||||||
12 | 35-8M0095659 | FUEL FILTER ASSEMBLY, with o-ring, MPP | 1 | ||||||
13 | 8M0095674 | BASE ASSEMBLY, Fuel Filter | 1 | ||||||
14 | 22-816133 | FITTING | 1 | ||||||
15 | 22-36373 | PLUG, (.375-18) Hex - Steel | 2 | ||||||
16 | 22-8M0086290 | CONNECTOR, Barb | 2 | ||||||
17 | 8M0021043 | SENSOR ASSEMBLY, Fuel and Water | 1 | ||||||
18 | 84-8M0042697 | HARNESS, Fuel Filter Sensor Extension (144 in) | 1 |
