200 PRO VERADO 4-STROKE 6 CYL - Serial 2B144123 and Up - Starboard Cylinder Block/Oil Cooler

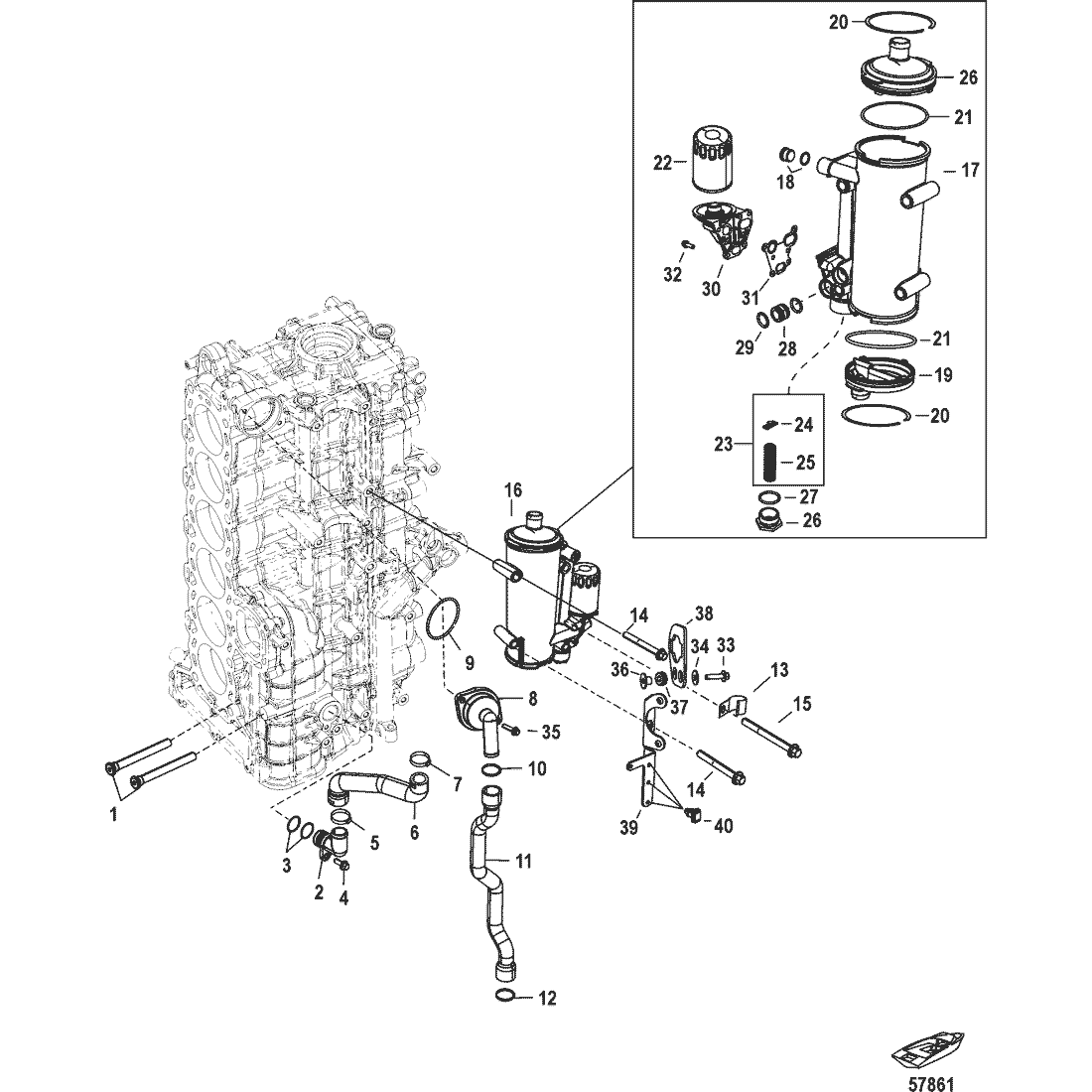

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold
- Charge Cooler/Intake Manifold Hose Routings
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Decals - Top Cowl
- Driveshaft Housing
- Electrical Box Components
- Flywheel and Cover
- Fuel Filter Kits
- Fuel Supply Module
- Gear Housing, Driveshaft, 4.80 Torpedo
- Gear Housing, Prop Shaft - Std Rot, 4.80 Torpedo
- Ground Cable Kit(899712A01)
- Induction Components
- Lower Cowl
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Transom Assembly
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler
- Starter Motor
- Steering Helm Kit-Standard (892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 892404A05 | DEFLECTOR ASSEMBLY, Water | 2 | ||||||
| 2 | 22-885518A02 | FITTING ASSEMBLY | 1 | ||||||
| 3 | 25-62701 | O-RING | 2 | ||||||
| 4 | 10-88552516 | SCREW, (M6 x 16 MM) Stainless Steel | 1 | ||||||
| 5 | 54-888988011 | CLAMP, (38.1 mm) | 1 | ||||||
| 6 | 32-888930003 | HOSE | 1 | ||||||
| 7 | 54-888988008 | CLAMP, (34.6 mm) | 1 | ||||||
| 8 | 892864T04 | 676-18-3631 | THERMOSTAT ASSEMBLY | 1 | |||||
| 9 | 25-8M0005958 | O-RING | 1 | ||||||
| 10 | 54-888988001 | CLAMP, (36.1 mm) | 1 | ||||||
| 11 | 32-892865 | HOSE, Thermostat | 1 | ||||||
| 12 | 54-888988007 | CLAMP, (42.5 mm) | 1 | ||||||
| 13 | 54-78945 | J CLAMP | 1 | ||||||
| 14 | 10-88552785 | SCREW, (M10 x 85) | 3 | ||||||
| 15 | 10-885527105 | SCREW, (M10 x 105) | 1 | ||||||
| 16 | 8M0092405 | MODULE, Integrated Oil | 1 | ||||||
| 17 | NSS | Oil Cooler Housing | 1 | Not Sold Separate | |||||
| 18 | 19-891953 | PLUG, (18 mm) | 2 | ||||||
| 19 | 8M0046698 | END CAP ASSEMBLY | 2 | ||||||
| 20 | 53-8M0039464 | RING, Retaining | 1 | ||||||
| 21 | 25-8M0039516 | O-RING | 1 | ||||||
| 22 | 35-877769K01 | FILTER, Oil (Mercury Branded) | 1 | ||||||
| 23 | 8M0046693 | THERMOSTAT ASSEMBLY | 1 | ||||||
| 24 | NSS | Thermostat Stop | 1 | Not Sold Separate | |||||
| 25 | NSS | SPRING | 1 | Not Sold Separate | |||||
| 26 | 19-8M0046697 | PLUG | 1 | ||||||
| 27 | NSS | O-RING | 1 | Not Sold Separate | |||||
| 28 | 8M0046696 | ADAPTOR ASSEMBLY (Contains 2 Adaptors) | 1 | ||||||
| 29 | NSS | O-RING | 4 | Not Sold Separate | |||||
| 30 | 8M0046694 | HOUSING ASSEMBLY | 1 | ||||||
| 31 | 27-8M0034568 | GASKET | 1 | ||||||
| 32 | 10-88552516 | SCREW, (M6 x 16 MM) Stainless Steel | 2 | ||||||
| 33 | 10-82129125 | SCREW, (M6 x 25 MM) | 2 | ||||||
| 34 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel | 2 | ||||||
| 35 | 10-88552525 | SCREW, (M6 x 25 MM) Stainless Steel | 2 | ||||||
| 36 | 23-822003 | BUSHING | 2 | ||||||
| 37 | 25-834985 | GROMMET | 2 | ||||||
| 38 | 8M0011480 | PLATE, Mounting, 14 Pin | 1 | ||||||
| 39 | 8M0011478 | BRACKET, Mounting, 14 Pin | 1 | ||||||
| 40 | 54-879962 | CLIP | 3 | ||||||
| - | 27-880552A07 | GASKET SET, Powerhead | 1 | ||||||
| - | 61-896966A07 | ASSEMBLY, Long Block | 1 |
