200 PRO VERADO 4-STROKE 6 CYL - Serial 2B144123 and Up - Crankshaft, Pistons and Connecting Rods

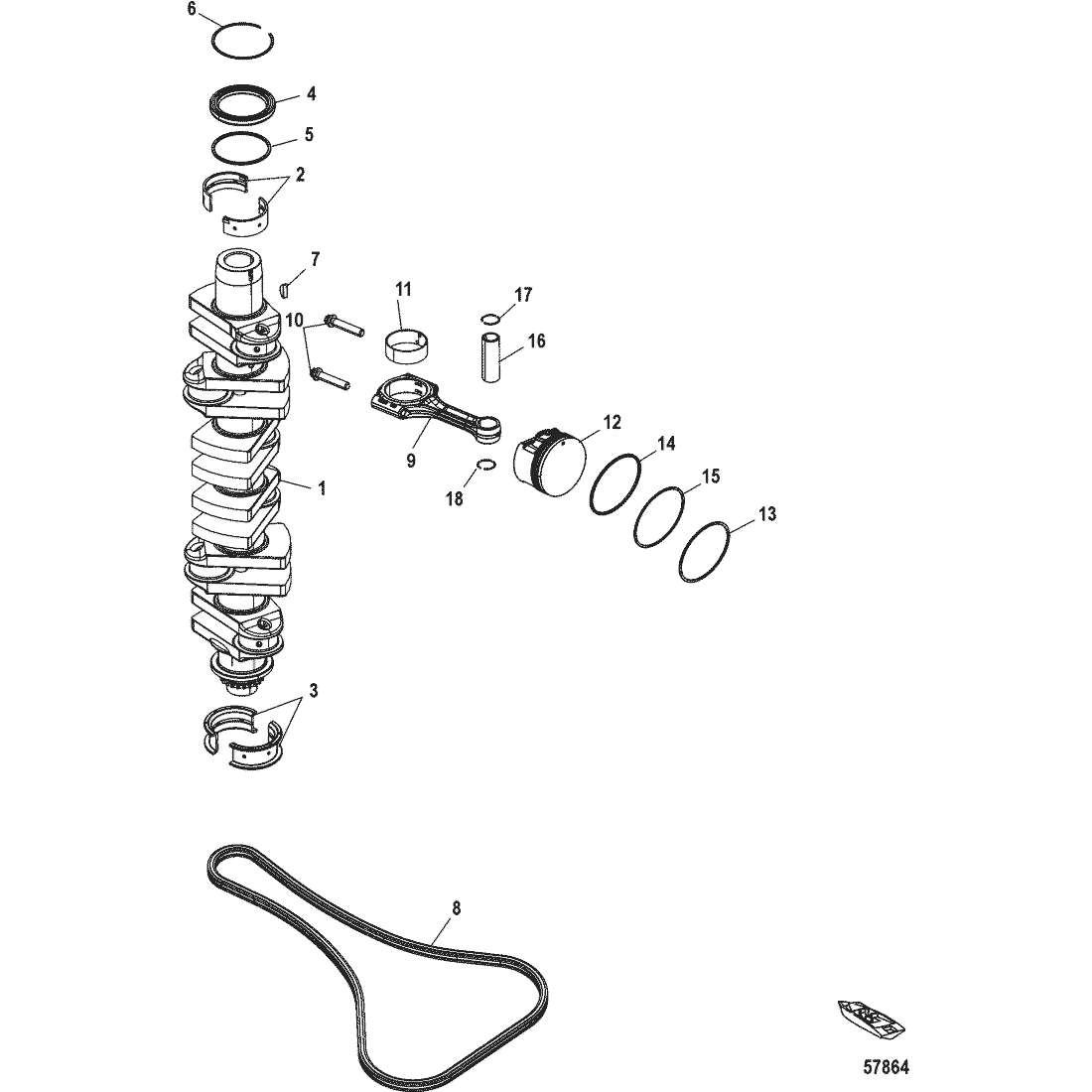

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold
- Charge Cooler/Intake Manifold Hose Routings
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Decals - Top Cowl
- Driveshaft Housing
- Electrical Box Components
- Flywheel and Cover
- Fuel Filter Kits
- Fuel Supply Module
- Gear Housing, Driveshaft, 4.80 Torpedo
- Gear Housing, Prop Shaft - Std Rot, 4.80 Torpedo
- Ground Cable Kit(899712A01)
- Induction Components
- Lower Cowl
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Transom Assembly
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler
- Starter Motor
- Steering Helm Kit-Standard (892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 400-891644A04 | CRANKSHAFT ASSEMBLY | 1 | ||||||
| 2 | 23-897498T05 | BEARING, Main (Green) | 12/AR | ||||||
| 2 | 23-897498T06 | BEARING, Main (Navy Blue) | 12/AR | ||||||
| 2 | 23-897498T07 | BEARING, Main (White) | 12/AR | ||||||
| 2 | 23-897498T08 | BEARING, Main (Orange) | 12/AR | ||||||
| 3 | 23-892309T01 | BEARING, Thrust - Green, Crankshaft-Lower | 2/AR | ||||||
| 3 | 23-892309T02 | BEARING, Thrust - Navy Blue, Crankshaft-Lower | 2/AR | ||||||
| 3 | 23-892309T03 | BEARING, Thrust - White, Crankshaft-Lower | 2/AR | ||||||
| 3 | 23-892309T04 | BEARING, Thrust - Orange, Crankshaft-Lower | 2/AR | ||||||
| 4 | 26-8M0032912 | SEAL, Top Main Bearing | 1 | ||||||
| 5 | 23-896883 | SPACER | 1 | ||||||
| 6 | 53-896882 | RING, Retaining | 1 | ||||||
| 7 | 28-91800 | KEY, Woodruff | 1 | ||||||
| 8 | 8M0103398 | CHAIN, Roller Cam Drive | 1 | ||||||
| 9 | 662-881210T02 | CONNECTING ROD ASSEMBLY | 6 | ||||||
| 10 | 10-884441 | BOLT | 12 | ||||||
| 11 | 23-892005A01 | BEARING, Connecting Rod - Blue | 12/AR | ||||||
| 11 | 23-892005A02 | BEARING, Connecting Rod - White | 12/AR | ||||||
| 11 | 23-892005A03 | BEARING, Connecting Rod - Orange | 12/AR | ||||||
| 12 | 700-898499T02 | PISTON ASSEMBLY | 6 | ||||||
| 13 | 39-881180A02 | RING SET, Piston | 6 | ||||||
| 14 | NSS | Piston Ring-Oil | 6 | Not Sold Separate | |||||
| 15 | NSS | Piston Ring-2nd | 6 | Not Sold Separate | |||||
| 16 | NSS | Piston Pin | 6 | Not Sold Separate | |||||
| 17 | 40-896594 | CIRCLIP | 12 | ||||||
| - | 61-896966A07 | ASSEMBLY, Long Block | 1 |
