200 PRO VERADO 4-STROKE 6 CYL - Serial 2B144123 and Up - Mount Cradle

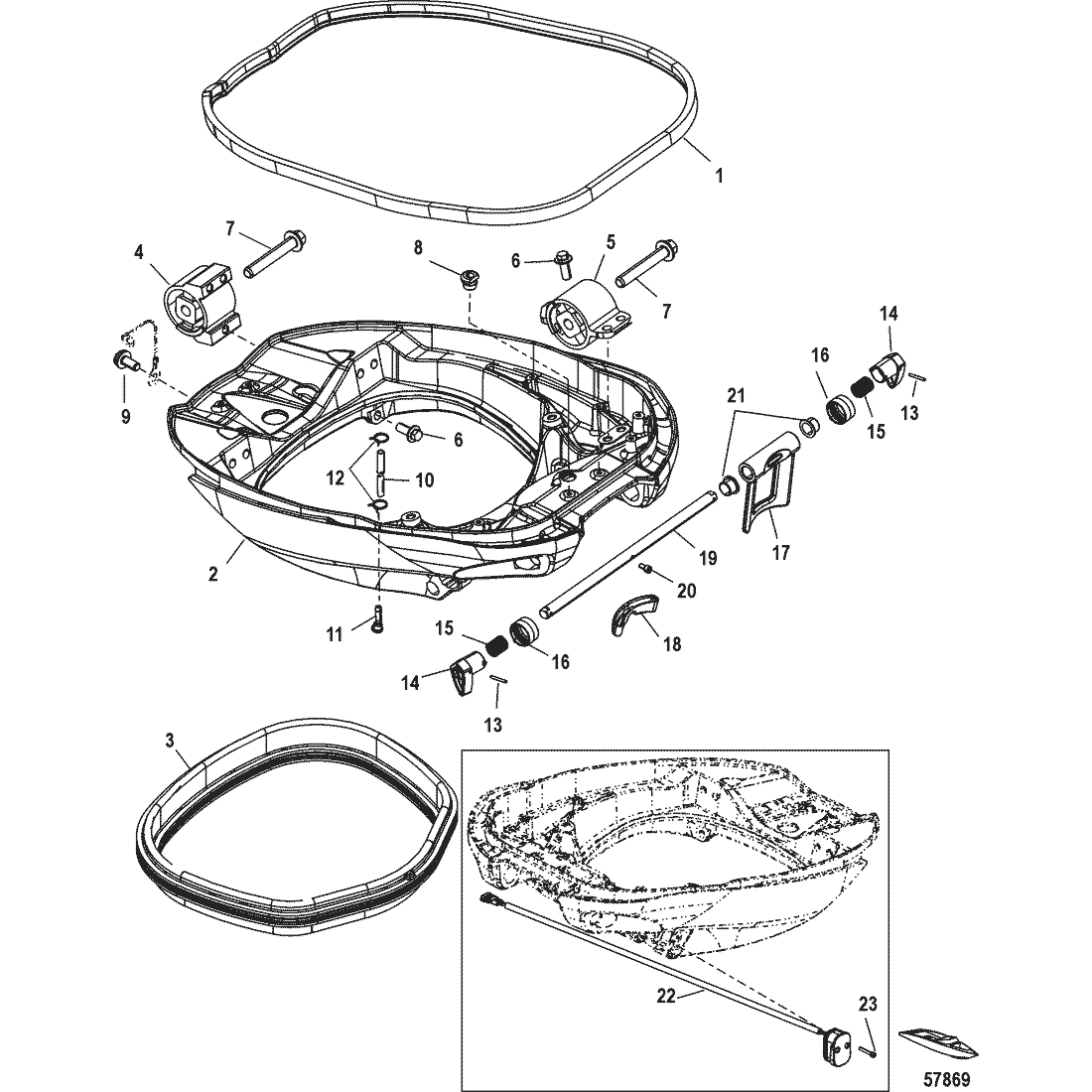

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Adaptor Plate Hose Routings
- Adaptor Plate-Lower
- Alternator/Belt Tensioner Mounting
- Charge Cooler/Intake Manifold
- Charge Cooler/Intake Manifold Hose Routings
- Cowl Latching
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block
- Cylinder Head and Camshaft
- Decals - Top Cowl
- Driveshaft Housing
- Electrical Box Components
- Flywheel and Cover
- Fuel Filter Kits
- Fuel Supply Module
- Gear Housing, Driveshaft, 4.80 Torpedo
- Gear Housing, Prop Shaft - Std Rot, 4.80 Torpedo
- Ground Cable Kit(899712A01)
- Induction Components
- Lower Cowl
- Mercathode Kit
- Mount Cradle
- Oil Pump/Adaptor Plate-Upper
- Port Cylinder Block Components
- Power Trim Components
- Power Trim/Transom Assembly
- Powerhead Gasket Set Components
- Pump Kit-Power Steering(4 thru 24 Feet)
- Rear Cowl
- Starboard Cylinder Block/Oil Cooler
- Starter Motor
- Steering Helm Kit-Standard (892557A02, 892380A02, 892558A02)
- SuperCharger
- Tools
- Top Cowl
- Upper Shift Components
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0077359 | SEAL | 1 | ||||||
| 2 | 8M0052577 | CRADLE ASSEMBLY, Mount | 1 | ||||||
| 3 | NSS | Seal | 1 | Not Sold Separate | |||||
| 4 | 8M0103708 | MOUNT, Rear | 2 | ||||||
| 5 | 8M0103365 | MOUNT, Front | 2 | ||||||
| 6 | 10-889745030 | SCREW, (M12 x 30) | 12 | ||||||
| 7 | 10-896531090 | SCREW, (M16 x 90) | 4 | ||||||
| 8 | 25-12602002 | GROMMET | 1 | ||||||
| 9 | 10-8M0098784 | SCREW, M6 X 1 X 12 | 1 | ||||||
| 10 | 32-8M0108355 | HOSE, (57.00 Inches Bulk), Cut to 35 Inches | 1 | 8M0047428 | |||||
| 11 | 22-895797001 | FITTING, Telltale | 1 | ||||||
| 12 | 54-895851 | CLAMP, (8.00 Inches) | 2 | ||||||
| 13 | 17-73194 | PIN, Roll (.125 x 1.12) | 2 | ||||||
| 14 | 880649002 | LEVER, Tilt Lock | 2 | ||||||
| 15 | 24-47968 | SPRING | 2 | ||||||
| 16 | 889540A03 | CLUTCH KIT | 1 | ||||||
| 17 | 8M0055029 | BRACKET, Tilt Lock | 1 | ||||||
| 18 | 8M0076907 | PAD, Tilt Lock | 1 | ||||||
| 19 | 880650003 | SHAFT, Tilt Lock | 1 | ||||||
| 20 | 10-889546 | SCREW, (M5 x 10) | 1 | ||||||
| 21 | 31-8806641 | BEARING, (.625 Inch) | 2 | ||||||
| 22 | 8M0010626 | SENSOR, Trim Position-Black | 1 | ||||||
| 23 | 10-889547 | SCREW, (M5 x 30) | 2 |
