200 PRO VERADO 4-STROKE 6 CYL - Serial 2B144123 and Up - Lower Cowl

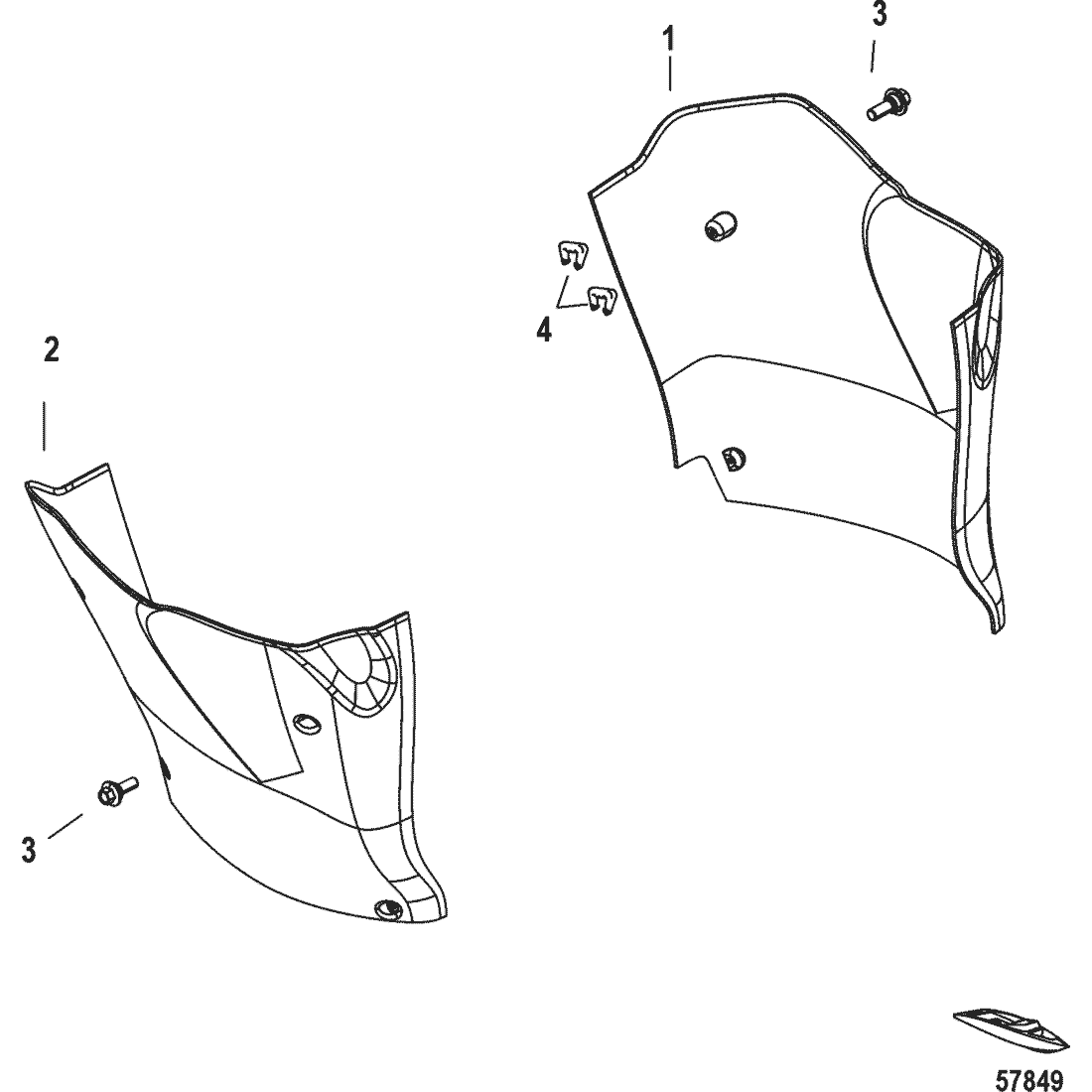

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 885365T03         CHAP ASSEMBLY, Long - Port and Starboard, Black 1
- 885363T04         CHAP ASSEMBLY, X-Long/XX-Long - Port and Starboard 1
1 NSS         Lower Port Chap (Long) 1   Not Sold Separate
1 NSS         Lower Port Chap (X-Long) 1   Not Sold Separate
2 NSS         Lower Starboard Chap (Long) 1   Not Sold Separate
2 NSS         Lower Starboard Chap (X-Long) 1   Not Sold Separate
3 10-892073002         SHOULDER SCREW, (M6), Long Chaps 8
3 10-892073002         SHOULDER SCREW, (M6), X-Long Chaps 12
4 54-898033         CLIP 1
