2.5L EFI and EFI-OFFSHORE - Serial 0G857000 Thru 0T999519 - Air Inlet/Throttle Linkage

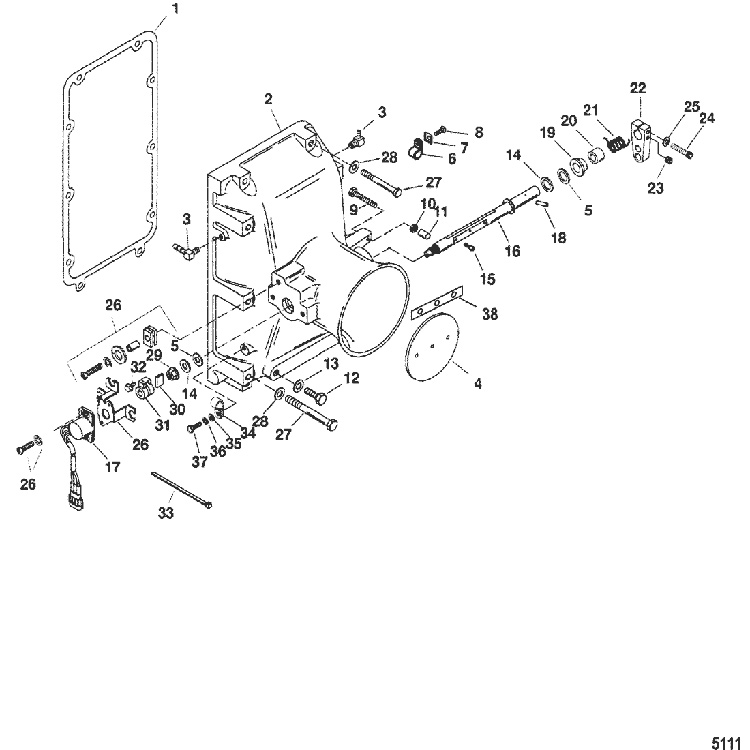

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 27-993163         GASKET 1
2 8M0084537         INLET, Air 1 816058T12
3 22-15133         FITTING 3
4 9871510         SHUTTER, Throttle 1
5 15-848046A1         SHIM SET 1
6 54-24836         CLIP 1
7 8M0084613         C WASHER 1 69205
8 10-62568         SCREW, (#10-16 x .375) 1
9 10-73013         SCREW, 10-32 x 1.50 1
10 11-68219         NUT, (#10-32) Stainless Steel 1
11 48039         CAP 1
12 10-39349         SCREW, (.312-18 x .750) Stainless Steel 2
13 12-814806         WASHER, (.344 x .688 x .065) Stainless Steel 2
14 12-848023         THRUST WASHER 2
15 10-90766         SCREW, (#10-32 x .500) 3 No Longer Available
16 8154905         SHAFT, Throttle 1
17 821664         SENSOR, Throttle Position 1
18 17-24800         PIN 2
19 23-848024         BUSHING (W/LIP) 1
20 23-8480251         BUSHING (W/O LIP) 1
21 24-988941         SPRING 1
22 137261         LEVER, Throttle 1
23 10-41355         SET SCREW, (#10-32 x .25) 1
24 10-410891         SCREW, (#8-32 x 1.00) 1
25 13-26995         LOCKWASHER, (#8) Stainless Steel 1
26 809093         BRACKET KIT, TPS 1 No Longer Available
27 10-53155         SCREW, (.250-20 x 2.50) 4
27 10-63328         SCREW, (.312-18 x 3.00) 6
28 12-35462         WASHER, (.2656 x .625 x .0625) Stainless Steel 4
28 12-814806         WASHER, (.344 x .688 x .065) Stainless Steel 6
29 11-805979         NUT, (.375-24) 1
30 28-89694         KEY 1
31 8211532         COUPLING 1
32 10-99365         SET SCREW, (#6-32 x .120) 1
33 56762         TIE STRAP, (4.00 Inches) 1
33 54-816311T         TIE STRAP, (8.00 Inches) 1
34 54-849620         CLIP 1
35 12-89302         WASHER, (.203 x .406 x .040) 1
36 13-26996         LOCKWASHER, (#10) Stainless Steel 1
37 10-69022         SCREW, (#10-32 x .500) Stainless Steel 1
38 15-842050         SHIM, Throttle Shutter AR
- 27-849770A1         GASKET SET, Engine 1
- 61-848040T48         POWERHEAD ASSEMBLY 1 848040T40 No Longer Available
