2.5L EFI and EFI-OFFSHORE - Serial 0G857000 Thru 0T999519 - Instrumentation

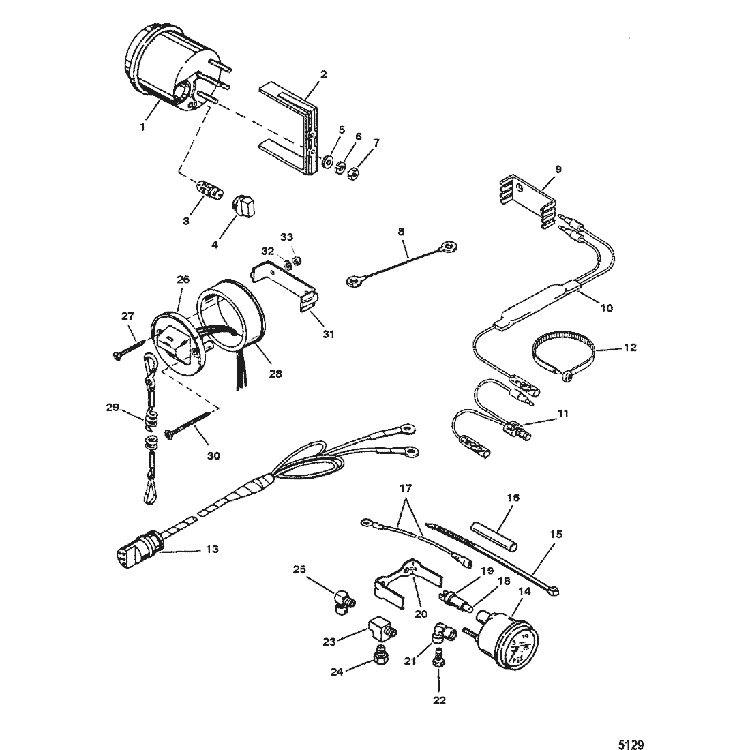

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 79-840526A1         TACHOMETER 1 No Longer Available
2 79101T         BRACKET 1 No Longer Available
3 88-72729         LIGHT BULB, Wedge Base (14V - .19W) 1
4 88-79888         SOCKET, Light Bulb 1
5 12-24676         WASHER, (.200 x .440 x .032) 5
6 13-26995         LOCKWASHER, (#8) Stainless Steel 5
7 11-26419         NUT, (#8-32) Brass 5
8 84-86322A7         CABLE ASSEMBLY, (1.50 Feet) Black 1
8 84-86323A5         CABLE ASSEMBLY, (1.50 Feet) Purple 1
9 79146         RETAINER AR
10 812497A2         DIODE ASSEMBLY 1 No Longer Available
11 84-11149A2         CABLE ASSEMBLY, (6.00 Inches) 1
12 54-816311T         TIE STRAP, (8.00 Inches) AR
13 84-86396A8         HARNESS ASSEMBLY, Tachometer (5.00 Feet) 1
14 79-895288A23         GAUGE KIT, Water Pressure (2-30 PSI) White Face, Black Graduation, White Bezel 1 859688A11
14 79-895288Q43         GAUGE KIT, Water Pressure (2-30 PSI) Black Face, White Graduation, Black Bezel 1 858654A4
15 54-816311T         TIE STRAP, (8.00 Inches) 5
16 32-64088A09         TUBING, (53.00 Feet Bulk) 1 640886
17 84-88532A1         CABLE ASSEMBLY, (2.00 Feet) Dark Blue 1 No Longer Available
17 84-86322A16         CABLE ASSEMBLY, (2.00 Feet) Black 1
18 88-72729         LIGHT BULB, Wedge Base (14V - .19W) 1
19 88-825362         SOCKET 1 No Longer Available
20 825363         BRACKET 1 No Longer Available
21 22-63651         ELBOW (90 DEGREES) 2 No Longer Available
22 22-63670         FITTING 2 No Longer Available
23 22-64706001         TEE 1 64706
24 22-36492         BUSHING, Reducer 1
25 22-77863         FITTING 1 No Longer Available
26 87-19674A1         SWITCH ASSEMBLY, Lanyard 1 No Longer Available
27 10-18303         SCREW, (.190-16 x 1.750) Stainless Steel 2
28 813679         ADAPTER 1
29 15920Q54         LANYARD ASSEMBLY 1 No Longer Available
30 10-32866         SCREW, (#10-32 x 2.00) Stainless Steel 2
31 18321         CLAMP, Mounting 1
32 12-24676         WASHER, (.200 x .440 x .032) 2
33 11-68219         NUT, (#10-32) Stainless Steel 4
