2.5L EFI and EFI-OFFSHORE - Serial 0G857000 Thru 0T999519 - Top Cowl

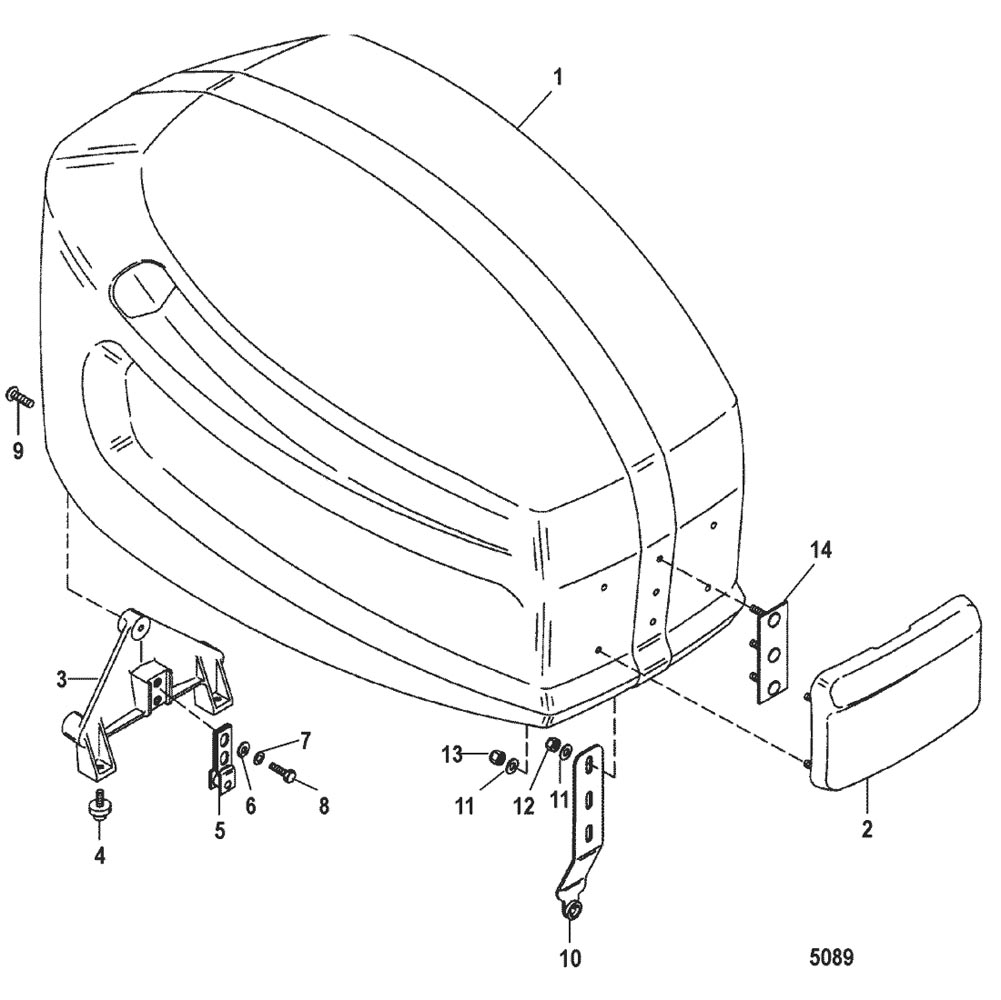

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Air Inlet/Throttle Linkage
- Bleed System
- Bottom Cowl
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Caps
- Driveshaft Housing, Long-Standard
- Driveshaft Housing, Offshore
- Driveshaft Housing, Short-Standard
- Exhaust Divider Plate
- Flywheel and Alternator
- Fuel Injectors
- Fuel Pump
- Gear Housing(Driveshaft)(Standard/Counter Rotation)
- Gear Housing, Propeller Shaft - Counter Rotation
- Gear Housing, Propeller Shaft - Standard Rotation
- Hydraulic Pump and Mounting Brackets
- Hydraulic Pump Assembly
- Instrumentation
- Key Switch
- Powerhead Gasket Set Components
- Reed Block and Cylinder Head
- Starter Motor
- Swivel Bracket and Steering Arm
- Throttle Lever and Shift Shaft
- Top Cowl
- Transom Brackets
- Trim Switch Kit
- Wiring Harness, Starter Solenoid and Rectifier
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 104-849203T23 | TOP COWL ASSEMBLY | 1 | 849203T22 | |||||
| 1 | 104-849203T17 | TOP COWL ASSEMBLY | 1 | ||||||
| 1 | 104-849203T18 | TOP COWL ASSEMBLY | 1 | No Longer Available | |||||
| 2 | 105-849209A3 | SHIELD | 1 | ||||||
| 2 | 105-849209A4 | SHIELD | 1 | ||||||
| 3 | 848808 | BRACKET, Latch | 1 | ||||||
| 4 | 849374 | BUMPER | 2 | ||||||
| 5 | 893763 | BRACKET ASSEMBLY, Latch Roller | 1 | 18173 | |||||
| 6 | 12-814806 | WASHER, (.344 x .688 x .065) Stainless Steel | 2 | ||||||
| 7 | 13-53166 | LOCKWASHER, (.312) | 2 | ||||||
| 8 | 10-28782 | SCREW, (.312-18 x .880) Stainless Steel | 2 | ||||||
| 9 | 10-849011 | SCREW, (.250-20 x .750) | 4 | ||||||
| 10 | 849834A1 | LATCH | 1 | ||||||
| 11 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel | 7 | ||||||
| 12 | 11-8267098 | NUT, (.250-20) Stainless Steel | 3 | ||||||
| 13 | 11-814101 | NUT, (.250-20) Stainless Steel | 4 | ||||||
| 14 | 849179 | PLATE | 1 | ||||||
| - | 37-840323A1 | DECAL SET | 1 | ||||||
| - | 37-849537A1 | DECAL SET | 1 | No Longer Available | |||||
| - | 37-840323A5 | DECAL SET | 1 | ||||||
| - | 37-840323A6 | DECAL SET | 1 | ||||||
| - | 37-840323A7 | DECAL SET | 1 | ||||||
| - | 37-849560A1 | DECAL SET | 1 | No Longer Available | |||||
| - | 37-849543A1 | DECAL SET | 1 | ||||||
| - | 37-849563A1 | DECAL SET | 1 | No Longer Available |
