2.5L EFI and EFI-OFFSHORE - Serial 0G857000 Thru 0T999519 - Exhaust Divider Plate

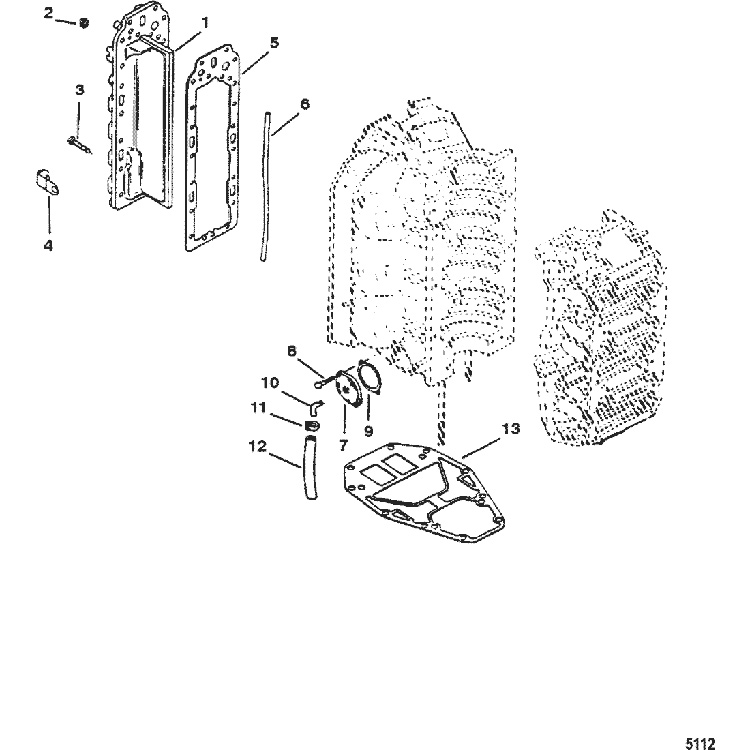

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 815552T1         PLATE, Exhaust Divider 1 847609T4
2 22-328022         PLUG, Pipe (.125-27) Brass 1
3 10-848496         SCREW, (.312-18 x 1.50) 18
3 10-848497         SCREW, (.312-18 x 1.00) 2
4 54-814634         CLAMP 1
5 27-8475252         GASKET 1
6 26-8147542         SEAL 1
7 99193         COVER, Relief Valve 1
8 10-881190         SCREW, (.312-18 x 1.00) 2
9 27-889072         GASKET 1
10 22-687271         FITTING, (.250-18) 90 Degree - Brass 1
11 54-816311T         TIE STRAP, (8.00 Inches) 2
12 32-77653101         HOSE, (48.00 Inches Bulk), Cut to 12-1/4 Inches 1
13 27-8231422         GASKET 2
- 27-849770A1         GASKET SET, Engine 1
- 61-848040T48         POWERHEAD ASSEMBLY 1   No Longer Available
