2.5L EFI and EFI-OFFSHORE - Serial 0G857000 Thru 0T999519 - Reed Block and Cylinder Head

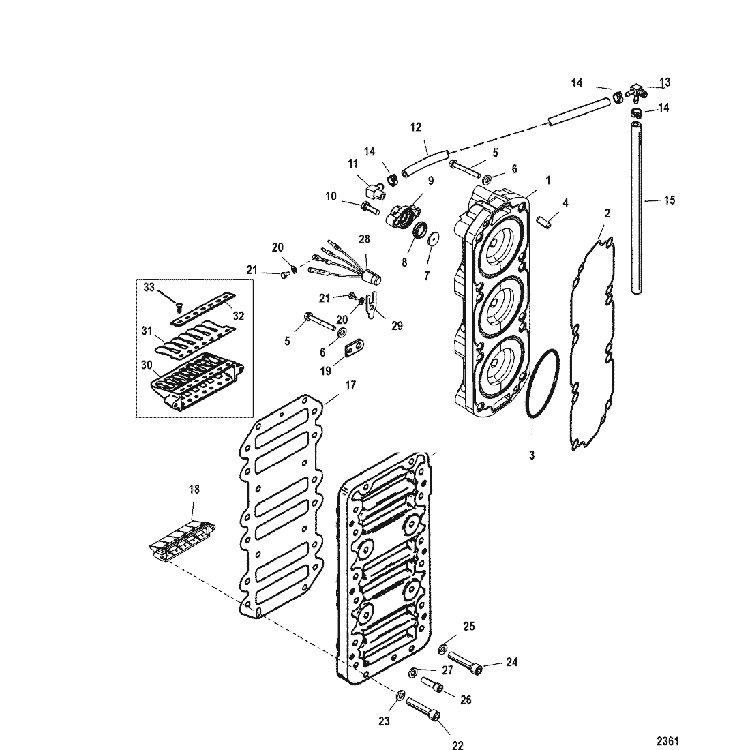

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 849496T3         CYLINDER HEAD 2
2 26-849616         SEAL 2
3 25-817574         O-RING 6
4 17-63779         PIN, Dowel (.250 x .625) 4
5 10-878217         SCREW, (.375-16 x 2.750) 24
6 12-822838         WASHER, (.401 x .745 x .097) 24
7 12-475332         WASHER, Substitute for Thermostat 2
8 27-62386001         GASKET 2 62386
8 27-62386001         GASKET 2
9 90390A1         COVER KIT 2
10 10-35386         SCREW, (.312-18 x 1.00) 4
11 22-687271         FITTING, (.250-18) 90 Degree - Brass (STARBOARD) 1
12 32-77653101         HOSE, (48.00 Inches Bulk) (Cut to 17-1/2 Inches) 1
13 22-68728         FITTING (PORT) 1
14 54-816311T         TIE STRAP, (8.00 Inches) AR
15 32-77653101         HOSE, (48.00 Inches Bulk) (Cut to 11-1/2 Inches) 1
16 987093         PLATE 1
17 27-127754         GASKET 1
18 840805T1         REED BLOCK ASSEMBLY 6
19 54-75275         CLAMP 1
20 13-53166         LOCKWASHER, (.312) 2
21 10-90285         SCREW, (.312-18 x .625) 2
22 10-60147         SCREW, (.250-20 x 1.25) 12
23 12-822837         WASHER 12
24 10-60147         SCREW, (.250-20 x 1.25) 4
25 12-39143         WASHER, (.253 x .625 x .0937) 4
26 10-55715         SCREW, (.250-20 x .880) 2
27 12-822837         WASHER 2
28 13536A14         SENSOR ASSEMBLY, Temperature (STARBOARD) 1
29 137151         RETAINER 1
30 87692T3         REED BLOCK 6
31 34-849484A1         REED ASSEMBLY 6
32 903911         CLAMP, Reed 12
33 10-823588         SCREW, (#8-32 x .250) 84
- 27-849770A1         GASKET SET, Engine 1
- 61-848040T48         POWERHEAD ASSEMBLY 1 848040T40 No Longer Available
