2.5L EFI and EFI-OFFSHORE - Serial 0G857000 Thru 0T999519 - Driveshaft Housing, Offshore

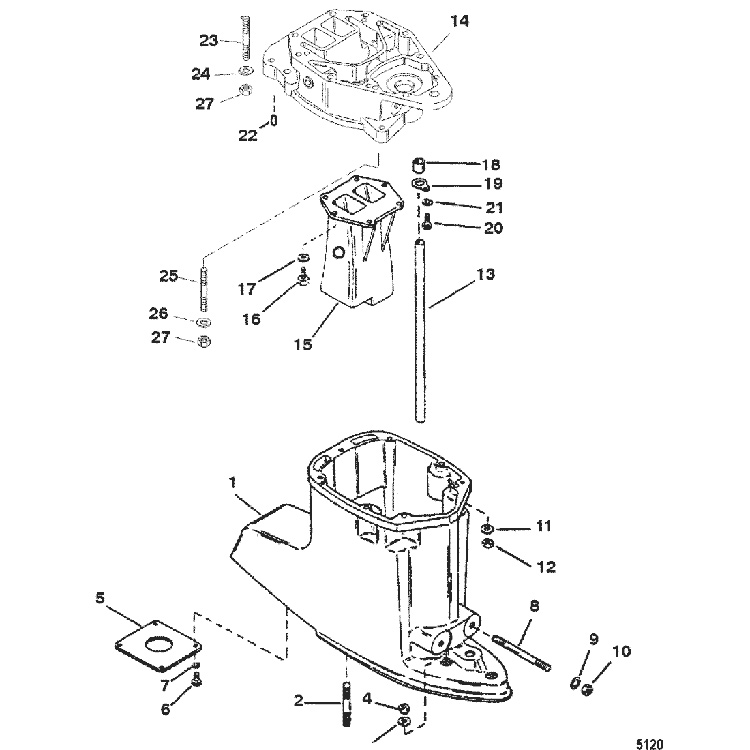

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1581-8683A57         HOUSING ASSEMBLY, Driveshaft 1 No Longer Available
2 16-59579         STUD, (.437-14/.437-20 x 2.812) 2
2 16-74732         STUD (7/16- X 7-11/16) 2 No Longer Available
3 12-822836         WASHER, (.445 x .805 x .108) 3
4 11-859116         NUT, (.437-20) 3
5 818261         PLATE, Exhaust Block Off 1
6 10-28635         SCREW, (.250-20 x .620) Stainless Steel 4
7 13-26992         LOCKWASHER, (.250) Stainless Steel 4
8 16-818908         STUD, (.500-13/.500-20 x 4.120) 2
9 12-816056         WASHER 2
10 11-898832         NUT, (.500-20) 2 82670817
11 12-822838         WASHER, (.401 x .745 x .097) 10
12 11-82671013         NUT, (.375-24) Stainless Steel 8
12 11-826709113         NUT, (.375-24) Stainless Steel 2
13 32-8476502         TUBE, Water 1
13 32-8476501         TUBE, Water 1
14 848284T15         PLATE, Exhaust 1 No Longer Available
15 848308T3         DIFFUSER 1
16 10-823258         SCREW, (.312-18 x 1.250) 6
17 12-822714         WASHER 6
18 26-88397         SEAL 1
19 8476581         RETAINER 1
20 10-28635         SCREW, (.250-20 x .620) Stainless Steel 1
21 13-26992         LOCKWASHER, (.250) Stainless Steel 1
22 17-8M0043826         PIN, Dowel (.875) 2 823106
22 17-43044         PIN, Dowel - Without Hole (.375 x .625) 2
23 16-56295         STUD, (.437 x 2.69) 3
24 12-822836         WASHER, (.445 x .805 x .108) 3
25 16-54674         STUD, (.437-14/.437-20 x 2.250) 2
26 12-822836         WASHER, (.445 x .805 x .108) 2
27 11-859116         NUT, (.437-20) 5
