2.5L EFI and EFI-OFFSHORE - Serial 0G857000 Thru 0T999519 - Driveshaft Housing, Short-Standard

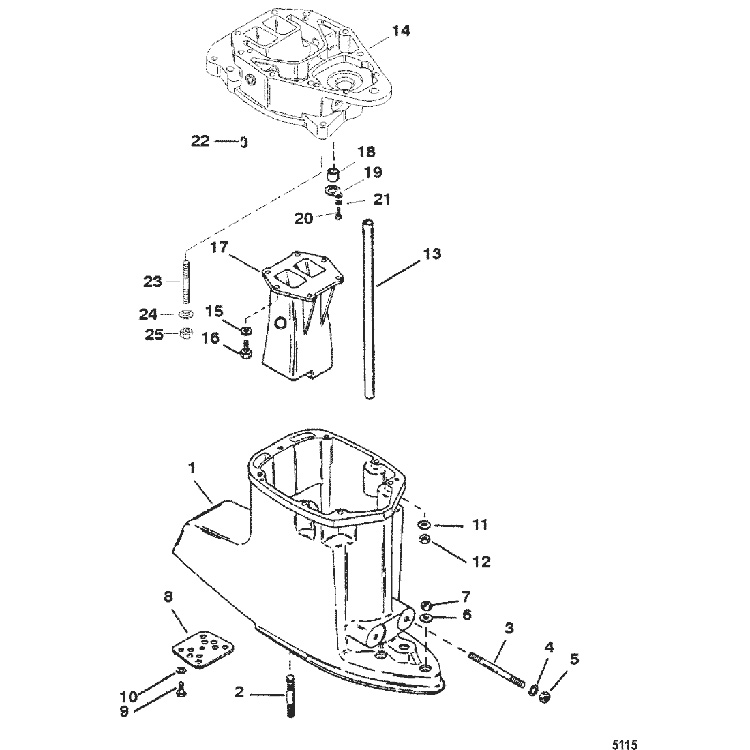

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 1581-818900T24         HOUSING, Driveshaft 1 818900T8
2 16-59579         STUD, (.437-14/.437-20 x 2.812) 2
3 16-818908         STUD, (.500-13/.500-20 x 4.120) 2
4 12-816056         WASHER 2
5 11-898832         NUT, (.500-20) 2 82670817
6 12-822836         WASHER, (.445 x .805 x .108) 3
7 11-859116         NUT, (.437-20) 3
8 818909         PLATE, Exhaust Blockoff 1
9 10-39349         SCREW, (.312-18 x .750) Stainless Steel 1
10 12-847539         WASHER 1
11 12-822838         WASHER, (.401 x .745 x .097) 10
12 11-82671013         NUT, (.375-24) Stainless Steel 8
12 11-826709113         NUT, (.375-24) Stainless Steel 2
13 32-8476503         TUBE, Water 1
14 848284T15         PLATE, Exhaust 1 No Longer Available
15 12-822714         WASHER 6
16 10-823258         SCREW, (.312-18 x 1.250) 6
17 848308T3         DIFFUSER 1
18 26-88397         SEAL 1
19 8476581         RETAINER 1
20 10-28635         SCREW, (.250-20 x .620) Stainless Steel 1
21 13-26992         LOCKWASHER, (.250) Stainless Steel 1
22 17-43044         PIN, Dowel - Without Hole (.375 x .625) 2
22 17-8M0043826         PIN, Dowel (.875) 2 823106
23 16-56295         STUD, (.437 x 2.69) 3
24 12-822836         WASHER, (.445 x .805 x .108) 3
25 11-859116         NUT, (.437-20) 3
