2.5L EFI and EFI-OFFSHORE - Serial 0G857000 Thru 0T999519 - Fuel Injectors

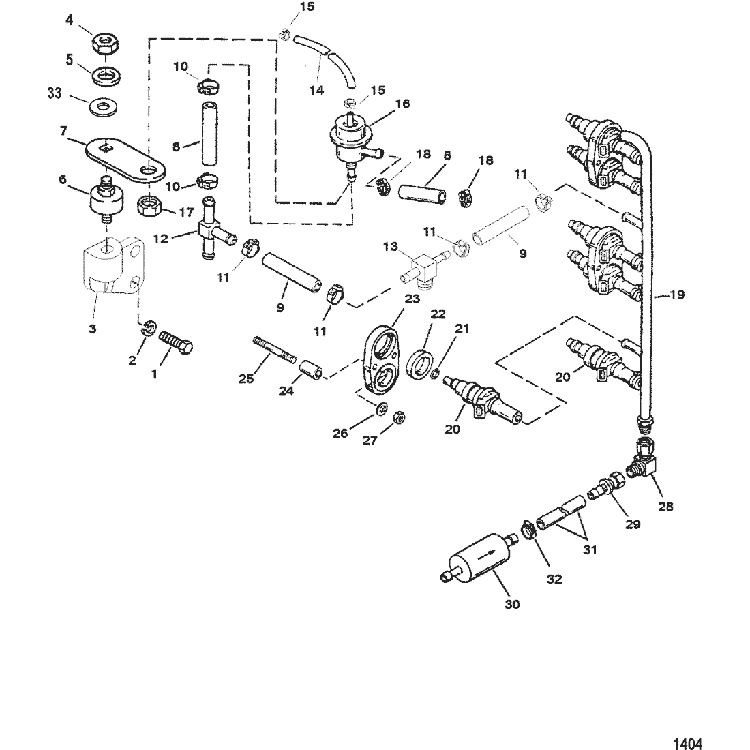

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
1 10-28667         SCREW, (.250-20 x 1.00) Stainless Steel 2
2 13-26992         LOCKWASHER, (.250) Stainless Steel 2
3 8490211         BRACKET 1
4 11-64015         NUT, (.250-20) 1
5 13-78968         LOCKWASHER, Internal (.250) 1
6 12234         RUBBER MOUNT 1 No Longer Available
7 99944         SUPPORT 1
8 32-774572         HOSE, (48.00 Inches Bulk), Cut to 3-1/2 Inches 2
9 32-774572         HOSE, (48.00 Inches Bulk), Cut to 2 Inches 2
10 54-13791         CLAMP, (15.7) 2
11 54-12999         CLAMP, (14.0) 4
12 22-17207         FITTING 1
13 22-849606         T FITTING 1
14 32-6628570         TUBING, Tygon (48.00 Inches Bulk), Cut to 6 Inches 1
15 56762         TIE STRAP, (4.00 Inches) 2
16 94820T         REGULATOR, Fuel 1
17 11-15018         NUT 1
18 54-815504104         CLAMP, Worm Gear 2
19 17206T4         FUEL RAIL 1
20 988181         INJECTOR, Fuel 6
21 26-94219         SEAL 6
22 25-99123         GROMMET 6
23 98716         HOLD DOWN 3
24 98717         SPACER 6
25 16-21184         STUD, 1/4-28 x 2 6
26 12-29245         WASHER, (.281 x .500 x .060) Stainless Steel 6
27 11-826709109         NUT, (.250-28) Stainless Steel 6
28 22-818699         FITTING 1
29 22-69406         FITTING 1
30 35-818700T         FILTER, Fuel 1
31 32-84876177         HOSE, (84.00 Inches Bulk), 84 Inches Required 1
32 54-848763         CLAMP, (19.8 mm) 1
32 54-848764         CLAMP, (21 mm) 1
33 12-35462         WASHER, (.2656 x .625 x .0625) Stainless Steel 1
- 27-849770A1         GASKET SET, Engine 1
- 61-848040T48         POWERHEAD ASSEMBLY 1 848040T40 No Longer Available
