250 Sport XS - Serial 1E051824 and Up - Air Compressor Components

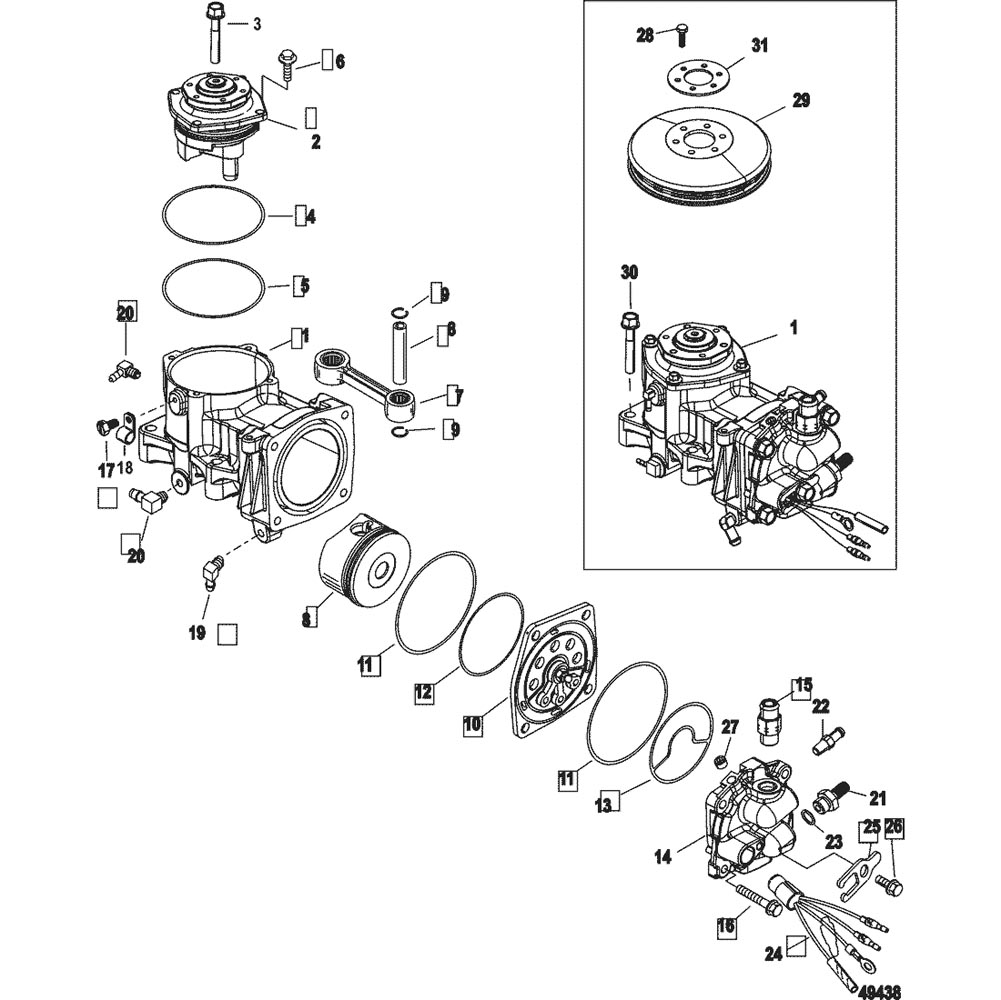

Section Drawing: (Hover or click to view larger)
Other Sub-Sections:
- Accessories
- Air Compressor Components
- Air Handler
- Air Hoses
- Bottom Cowl
- Coil Plate
- Crankshaft, Pistons and Connecting Rods
- Cylinder Block and End Cap
- Driveshaft Housing and Exhaust Tube
- Dual Cable Attaching Kit
- Dual Engine Tie Bar Kit
- Electrical Plate Components
- Exhaust Plate
- Flywheel/Alternator
- Fuel Pump
- Fuel System
- Gear Housing(Driveshaft) Standard-Sportmaster
- Gear Housing, Propeller Shaft-Standard-Sportmaster
- Oiling System
- PCM Mounting
- Port Center Main Oiling System
- Power Trim Components
- Shift Linkage
- Starboard Center Main Oiling System
- Starter Motor
- Swivel Bracket
- Throttle Linkage
- Top Cowl
- Transom Brackets
- Vapor Separator Components
- Water Hoses
| Ref. | OEM Part # | Hardin # | Mallory # | GLM # | Other # | Description | Num Req. | Superceded From | Special Notes |
| 1 | 8M0060051 | COMPRESSOR ASSEMBLY, Air | 1 | ||||||
| 2 | 1100-8M0060381 | END CAP ASSEMBLY | 1 | ||||||
| 3 | 10-8M0045380 | SCREW, (M8 x 50) | 1 | ||||||
| 4 | 25-67206001 | O-RING | 1 | ||||||
| 5 | 25-67206001 | O-RING | 1 | ||||||
| 6 | 10-85593920 | SCREW, (M6 x 20) | 4 | ||||||
| 7 | 653-833146T06 | CONNECTING ROD ASSEMBLY | 1 | ||||||
| 8 | NSS | Piston Assembly | 1 | Not Sold Separate | |||||
| 9 | 53-8348101 | RING, Lock | 2 | ||||||
| 10 | 835088A10 | REED PLATE ASSEMBLY | 1 | ||||||
| 11 | 25-67207 | O-RING, (3.489 x .070) | 2 | ||||||
| 12 | 25-832804 | O-RING, (2.739 x .070) | 1 | ||||||
| 13 | 26-828225 | SEAL | 1 | ||||||
| 14 | 8M0073890 | HEAD KIT, Compressor | 1 | ||||||
| 15 | 22-8307535 | FITTING, Straight | 1 | ||||||
| 16 | 10-82127335 | SCREW, (M8 x 35 MM) | 4 | ||||||
| 17 | 10-8M0037204 | SCREW, Nylon, push in | 1 | ||||||
| 18 | 54-22875 | CLIP | 1 | ||||||
| 19 | 22-996642 | FITTING, Elbow 90 Degree (.125-27 x .250) Nylon | 1 | ||||||
| 20 | 21-428641 | FITTING, Check Valve | 2 | ||||||
| 21 | 22-856744 | FITTING | 1 | ||||||
| 22 | 22-16604 | FITTING, Straight (.125-27) | 1 | ||||||
| 23 | 25-831985 | O-RING, (.468 x .078) | 1 | ||||||
| 24 | 13536A14 | SENSOR ASSEMBLY, Temperature | 1 | ||||||
| 25 | 137151 | RETAINER | 1 | ||||||
| 26 | 10-81893414 | SCREW, (M8 x 14) | 1 | ||||||
| 27 | 22-390721 | PLUG, Pipe (.125-27) Brass | 1 | ||||||
| 28 | 10-85593920 | SCREW, (M6 x 20) | 6 | ||||||
| 29 | 8M0051194 | PULLEY | 1 | 843224 | |||||
| 30 | 10-8M0045380 | SCREW, (M8 x 50) | 4 | ||||||
| 31 | 12-884594 | WASHER | 1 | ||||||
| - | 25-832804A03 | O-RING KIT | 1 |
