250 Sport XS - Serial 1E051824 and Up - Vapor Separator Components

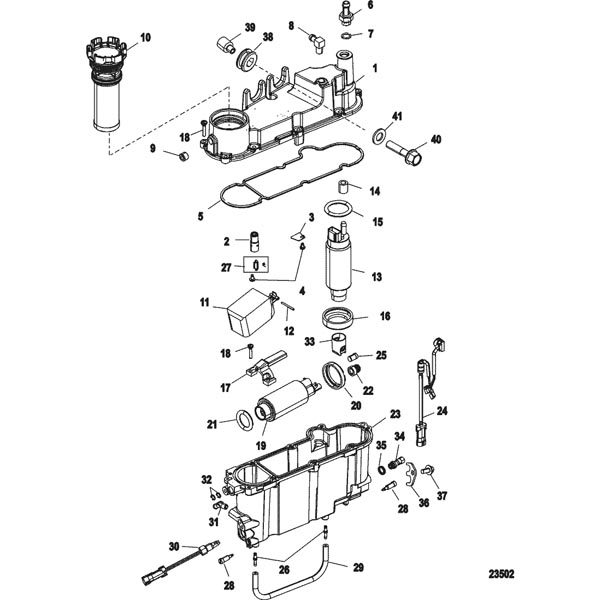

Section Drawing: (Hover or click to view larger)

Untitled Document
Ref. OEM Part # Hardin # Mallory # GLM # Other # Description Num Req. Superceded From Special Notes
- 880133T12         VAPOR SEPARATOR ASSEMBLY 1
1 889317T1         COVER KIT 1
2 NSS         Seat 1 Not Sold Separate
3 889318001         PLATE, Baffle 1
4 10-883223         SCREW, (M6 x 16) 2
5 27-889319         GASKET 1
6 22-883556         FITTING 1
7 25-8M0062785         O-RING 1 883209
8 22-14868         FITTING 1
9 19-883208         PLUG 1
10 35-8M0060041         FILTER, Fuel 1 8M0020349
11 889320A1         FLOAT KIT 1
12 F10064         SHAFT 1
13 888725T02         PUMP ASSEMBLY, Fuel - High Pressure 1
14 23-8M6000589         SLEEVE 1 855428
15 25-8893162         O-RING 1
16 26-889321         SEAL 1 No Longer Available
17 889328         RETAINER 1
18 1395-9643         SCREW 11
19 888733T02         PUMP ASSEMBLY, Boost 1
20 25-889322         GROMMET 1
21 25-889316         O-RING 1
22 26-8M6001413         SEAL 1 889323
23 889324T03         BOWL KIT 1
24 84-889325A02         WIRE 1
25 NSS         Check Valve 1 Not Sold Separate
26 22-855424011         FITTING 2
27 889326A1         VALVE KIT, Inlet 1
28 10-889327002         SCREW, Drain 2
29 32-883545002         HOSE 1
30 8M0021043         SENSOR, Water 1 889330
31 22-782792         FITTING, Elbow45 Degree (1.25) 1
32 25-627021         O-RING, (.301 x .070) 2
33 889430         INSERT 1
34 884820         SHRADER VALVE 1
35 25-891778         O-RING 1
36 54-884819         CLIP 1
37 10-40011126         SCREW, (M6 x 13) Stainless Steel 1
38 25-855362001         GROMMET 3
39 23-883050         SPACER 3
40 10-81893460         SCREW, (M8 x 60) 3
41 12-4002318         WASHER 3
- 25-889316A1         O-RING KIT, Vapor Seperator 1
